GYTA53 6 Core Fiber Optic Cable

Name: GYTA53 6 Core Fiber Optic Cable
Brand: Huajie
SKU: 104971371
Availability: InStock

US$ 0.1 - 9.9 MOQ: 10 Kilometers

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Huajie

Model Number:

GYTA53

Hangzhou Linan Huajie Wires & Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Huajie

Model Number GYTA53

GYTA53 6 core fiber optic cable

Product Description

GYTA53

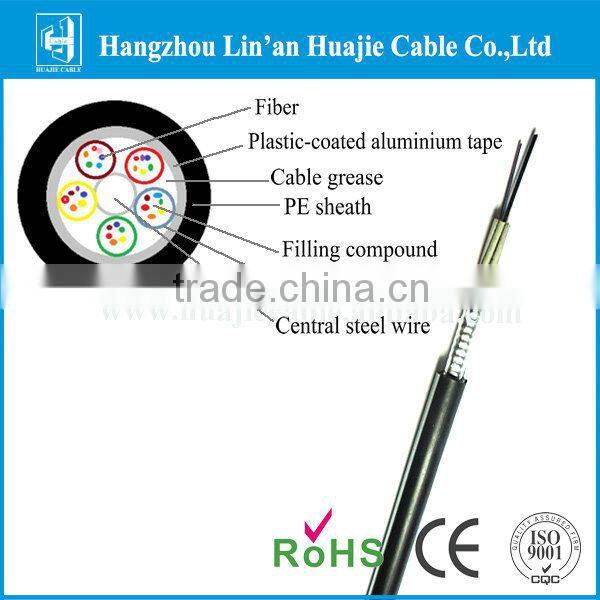

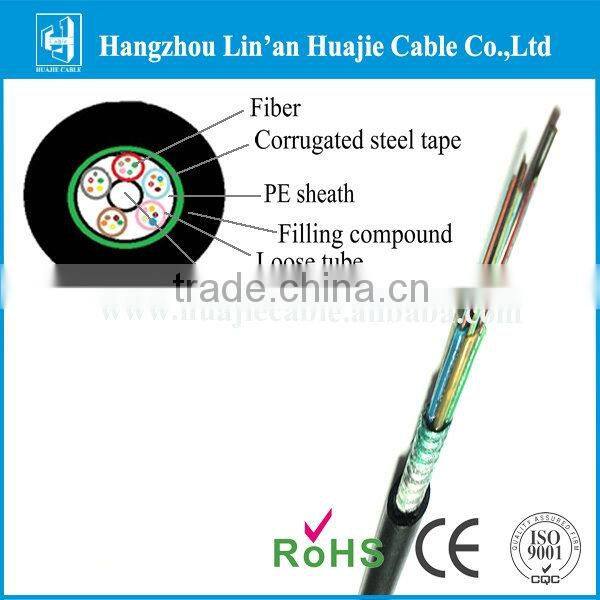

Product Structure			The fibers,either of single-mode or multimode type,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire sometimes sheathed with polyethlene(PE)for cable with high fiber count,locates in the center of cores as a metalic strength member.Tubes9(and fillers) are standed around thestength member into a compact and circular cable core.An Aluminum Polyethylene Laminate(APL) is applied around the cable core,which is filled with the filling compound to protectitfrom water-ingress.Then, the cable is complted with a PE outer seath.
Bending Radius			Static			10×D
Bending Radius			Dynamic			20×D
Storage/Operating Temperrature			-40℃ ~ + 60℃
Cable Type	Fiber Count	Tubes Fillers	Fibers In Tube	Cable Weight (kg/km)	Cable Diameter (mm)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100MM)
GYTA53-4~30Cores	4~30	5	6	180~	11.8~	1000/3000	1000/3000
GYTA53-4~36Cores	4~36	6	6	200~	13.2~	1000/3000	1000/3000
GYTA53-32~60Cores	32~60	5	12	200~	13.2~	1000/3000	1000/3000
GYTA53-32~72Cores	32~72	6	12	220~	13.5~	1000/3000	1000/3000
GYTA53-74~96Cores	74~96	8	12	240~	14~	1000/3000	1000/3000
GYTA53-98~120Cores	98~120	10	12	260~	16.2~	1000/3000	1000/3000
GYTA53-122~144Cores	122~144	12	12	320~	18.5~	1000/3000	1000/3000
GYTA53-146~216Cores	146~216	6/12	6/12	320~	18.5~	1000/3000	1000/3000

Characteristics	1.Accurate fiber excess length ensures good mechanical and temperature performance.
	2.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber,Specially designed compact structure is good at preventing loose tubes from shrinking.
	3.Crush resistance and flexibility.
	The following measures are taken to ensure the cable watertight:
	(1)Steel wire used as the centra stegth member (2)APL moisture barrier
	(3)Loose tube filling compound (4)PSP enhancing moisture-proof
	(5)100% cable core filling (6)Water-blocking material
