FLXA202 Yokogawa orp analyzer with two wires connection

FLXA202 Yokogawa orp analyzer is a 2-Wire type which latest released in 2015, which can be flexibly configured to measure pH/ORP, contacting conductivity, inductive conductivity, or dissolved oxygen. It's the world’s first touch panel display of 2-wire analyzer and support of up to two sensors, also offers rugged die-cast aluminum case and supports customers who seek to improve plant operation safety and efficiency. FLXA202 Yokogawa orp analyzer owns typical technical features as below:

1. 4 kinds of measurements; pH/ORP, contacting conductivity(SC), inductive conductivity(ISC) and dissolved oxygen(DO).
2. Dual sensor measurement on 2-wire type analyzer; pH/ORP and pH/ORP, SC and SC, and DO and DO.
3. Calculated data from dual sensor measurement
4. Redundant system on dual sensor measurement
5. Connection of FU20F / FU24F / SC25F Digital pH/ORP SENCOM Sensor
6. Easy touch screen operation on 2-wire type analyzer
7. Simple HMI menu structure in 12 languages
8. Quick setup menu for immediate measurement
9. Indication of sensor wellness
10. Robust Enclosure – aluminum alloy cast


FLXA202 SPECIFICATION
Input Specification
Dual high impedance input (≥1012 Ω )
Input ranges
pH: -2 to 16 pH(with option/K: 0 to 14 pH)
ORP: -1500 to 1500 mV
rH: 0 to 100 rH
Temperature: Pt1000, Pt100, PTC500, 6.8k, PTC10k, 3k Balco; -30 to 140℃
NTC 8k55; -10 to 120℃
Output Range
pH: min. span 1 pH, max. span 20 pH
ORP: min. span 100 mV, max. span 3000 mV
rH: min. span 2 rH, max. span 100 rH
Temperature: min. span 25 ℃ , max. span 170 ℃
Performance (Accuracy)
(The specifications are expressed with simulated inputs.)
pH: Linearity; ±0.01 pH, Repeatability; ±0.01 pH, Accuracy: ±0.01 pH
ORP: Linearity; ±1 mV, Repeatability; ±1 mV, Accuracy: ±1 mV

Temperature:
Pt1000, PTC500, 6.8k, PTC10k, NTC 8k55, 3k Balco;Linearity:±0.3℃, Repeatability; ±0.1℃, Accuracy: ±0.3℃
Pt100;Linearity; ±0.4℃, Repeatability; ±0.1℃, Accuracy; ±0.4℃

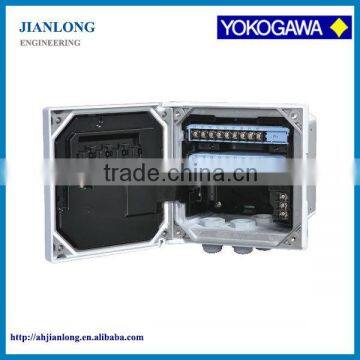

Housing
Aluminum alloy cast Case, Polycarbonate Window, IP66
Mounting
Universal mounting kit
Pipe and wall mounting hardware
Panel mounting hardware
Size of Housing Case
Dimention: 165 x 165 x 155 mm (W x H x D)
Weight: Approx. 2.5 kg
Environment Conditions
Ambient Operating Temperature : -20 to + 55℃
Storage Temperature : -30 to + 70℃
Humidity : 10 to 90% RH @ 40℃ (Non-condensing)
Power Supply
Nominal 24 V DC loop powered system

One (1) Sensor module (1 input):
16 to 40 V DC (for pH/ORP (analog sensor), SC and DO), 17 to 40 V DC (for ISC), 21 to 40 V DC (for pH/ORP SENCOM sensor)

Two (2) Sensor modules (2 inputs):
22.8 to 40 V DC (for pH/ORP (analog sensor), SC and DO)
Display
LCD with a touch screen. Black/White 213 x 160 pixels
Regulatory Compliance
UL61010-1, UL 61010-2-030, CAN/CSA-C22.2 No.61010-1, CAN/CSA-C22.2 No.61010-2-30
Electrical
Output Signal: General: One output of 4 to 20 mA DC; Bi-directional HART digital communication, superimposed on mA (4 to 20 mA) signal.
Output function: Linear or Non-linear
Intrinsic safety
ATEX Intrinsic safe approval, IECEx Intrinsic safe

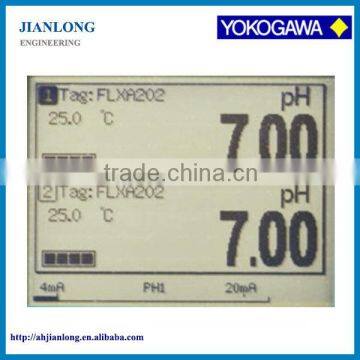

Redundant dual sensor measurement

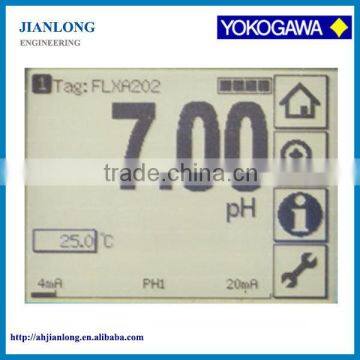

Clear touch panel display

Simple & friendly Manging Software

Self-diagnostics when glass sensor damaged

Self-diagnostics when out of  liquid level

Self-diagnostics with sensor surface blocked

Our Service

FLXA202 Yokogawa orp analyzer Engineering

Proper technical engineering on sensor, adapters, holders and converters based on work case

FLXA202 Yokogawa orp analyzer Supply

Originally imported from Yokogawa China, Yokogawa Japan or hold factories

FLXA202 Yokogawa orp analyzer Site Service

Site installation, calibration, commissioning, maintenance and spare parts supply

Our Company

Office

Locates in Hefei, China, in instrument & process control

Engineering Team

Experienced engineers with routing training

Sales Office Team

Photo on wowen's day of 2015

Weekly training

Routing Training for new employee

Packing & Delivery

Packing Details  : Carton, Pallet and Wooden package  depends on weight and customer request

Delivery Details : 6-8 weeks after confirmation of PO and down payment

1. FLXA202 Yokogawa orp analyzer Standard Package No.1

 Carton Package for below 45 kg

2.FLXA202 Yokogawa orp analyzer Standard Package No.2

 Pallet package for above 45 kg

3.FLXA202 Yokogawa orp analyzer Special package No.3


Wooden package as per request
