eflector chrome metallizing machine
Reflector chrome metallizing machine coat good uniformity film,easy to operation,hig efficiency and low cost.
Plastic vacuum metallizing machine adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.

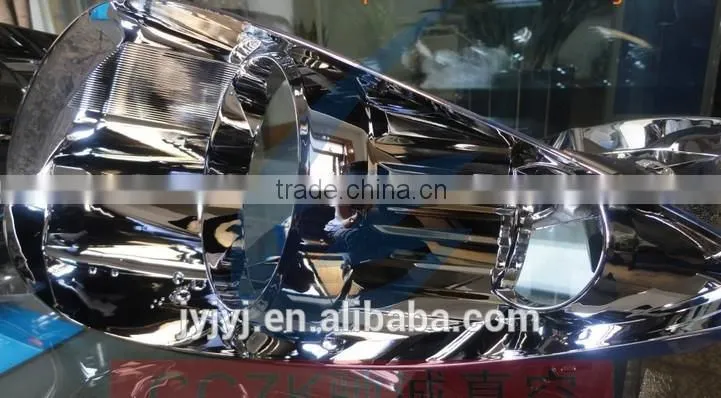

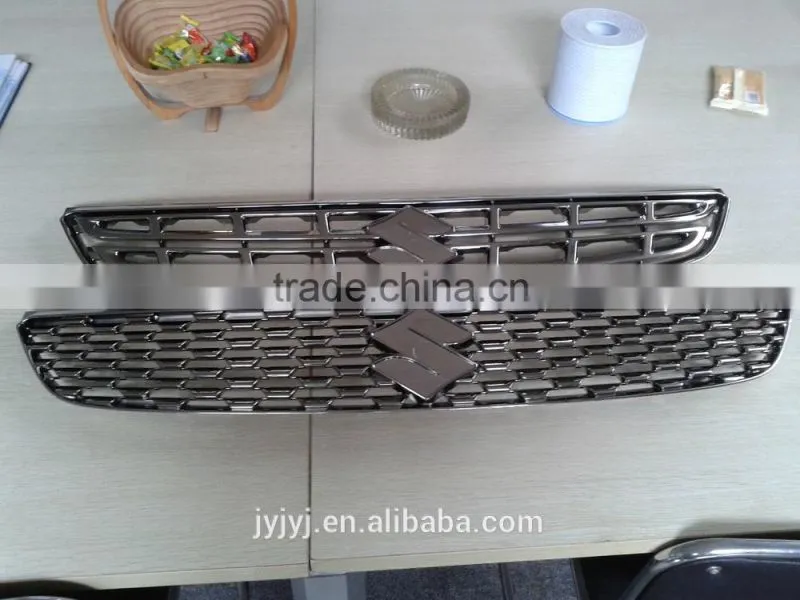

Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color: gold, silver, red, blue, green, purple, multi color, and so on.
Specification:
| Model | JYZ-1416 | JYZ-1618 | JYZ-1820 | JYZ-2022 |
| Vacuum chamber size | Φ1400×1800mm |
Φ1600×1800mm |
Φ1800×2000mm |
Φ2000×2200mm |
| Total Power | 35-70KW | 35-70KW | 50-90KW | 50-95KW |
Vacuum chamber structure |
Vertical , door on the side, double/single door | |||
Material of vacuum chamber |
superior stainless steel vacuum chamber |
|||

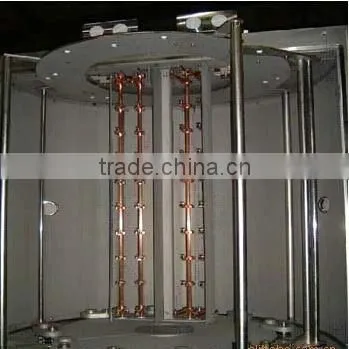

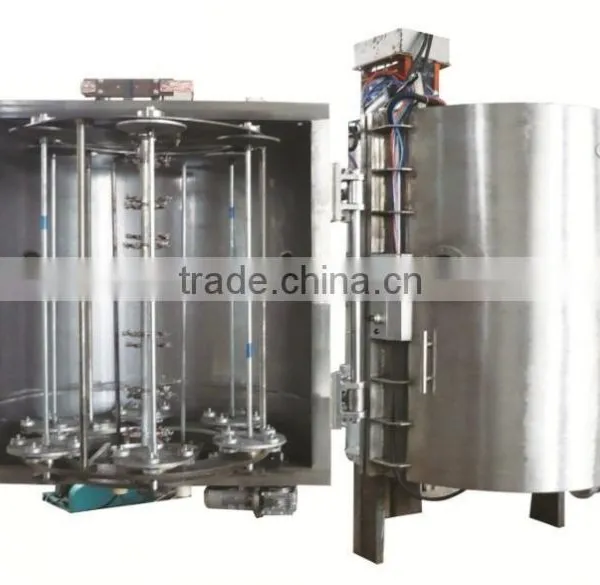

Workpiece turntable |
Planetary frame, revolution + rotation |
|||
Power source Type |
Bombardment bios and heating power supply |
|||
Vacuum system |
Oil diffusion Pump+ Mechanical pump +Maintenance Pump + Roots Pump (the number of the pumps are designed according to customer’s need) |
|||
| Cooling system | water-cooling system | |||
| Ultimate vacuum | ≤8×10-4pa | |||
Pump time |
Pump from atmosphere to 5.0*10-2, 6 minutes |
|||
Control mode |
Manual/semi-Automatic , Automatic ,Touch screen+PLC |
|||
| Technology | vacuum evaporation coating | |||
Remark |
Dimension of the vacuum chamber can be designed and equipped according to customers demand |
|||
