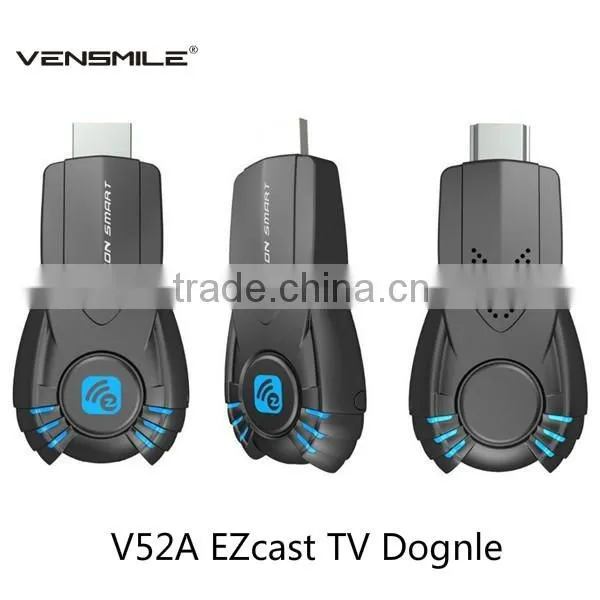

Vensmile Factory Price V52A EZcast TV Dongle External Antenna Android USB Wifi Dongle Support Miracast DLNA
What is V52A EZCast:
Vsmart V52A is a dongle with output, users can EZcast pictures,music,videos,documents of os/android
device to the big tv screen/ prjector screen by using EZCast/ miracast/ airplay mirroring function.
Achieve Miracast wireless sharing feature on your mobile screen directly mirrored to the TV screen or projector .
Enables wireless delivery of streaming or local HD movie/picture/screen from pc, tablets, mobile phones,
etc to normal TV set.
V52A features:
1. EZCast function: support mirroring photos/videos/musics, doc/ ppt/excel /pdf document, online videos, website, youtube,etc, only need android 4.0 or later, or later.
2. EZMirror ( Miracast): support miracast for real-time share evreything from android 4.2 or later smartphone/tablet to large TV screen/ projector screen.
3. DLNA: support DLNA function
4. Airplay/ Airplay Mirroring: support Airplay and Airplay mirroring function for phone and pad.
5. Mirroring: 100% real-time mirroring PC screen to TV screen.
Preparation:
1.According to your accessory,please use two in one wifi USB cable or extending cable connect Wireless Display Dongle to TV set.
2.Power on TV set and adjust signal resource of TV to the input channel.
3.Please connect the dongle to power properly,you can use mobile phone adapter or get power from USB port of TV set,and the current is 1A.

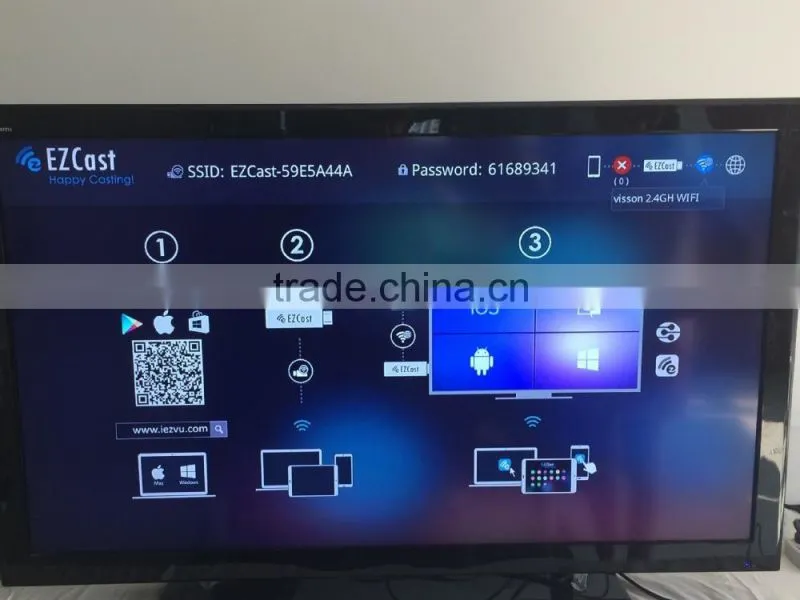

The information showing on boot screen:
SSID:ezcast-59E5A44A,Password:61689341,IP:192.168.111.2.2.
1.tablet Download arress:/download
2.For smartphone,you can scan the two-dimention code to log in the dowload address,or open App store and search Ezcast.
3.For android customer,you can scan the two-dimention code to log in the download address,or open Google play,search Ezcast.
V52A EZCast dongle functions screenshort:

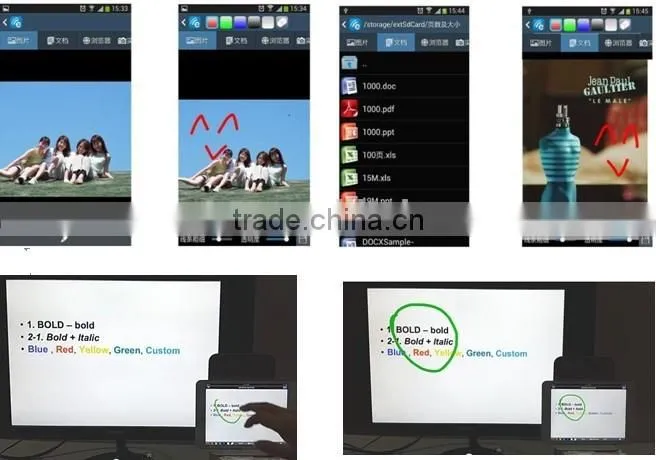

1). EZCast Doodle(Sidenote) on phones,documents,which shared from android phone,tablet

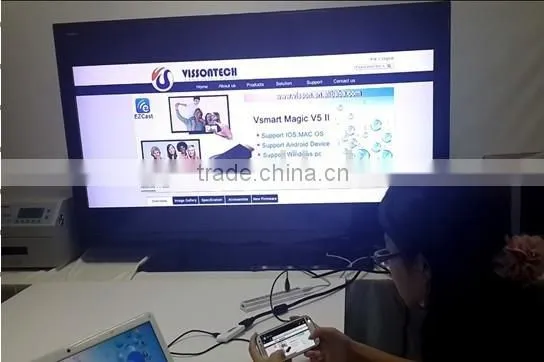

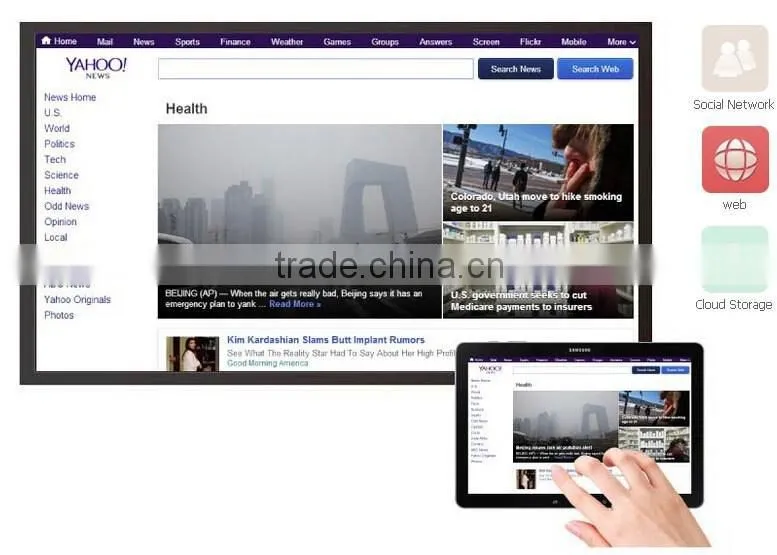

2).EZCast website to TV screen from android 4.0(or above)/ ios device
3).EZcast miracast for android device: world cup live tv
4). EZCast device miracast function screenshort:

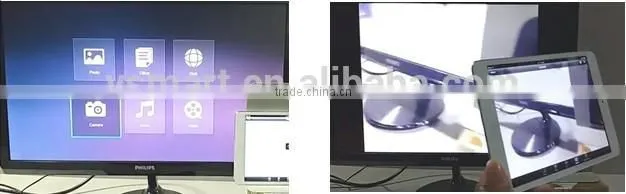

5). EZCast V52A mirroring PC's screen to TV Screen:
Resoluton:Support 1920*1080 24p,1280*720 60p
Password: Set access password of dongle;
Internet:Set wifi for dongle.
Language:Support multi-language.
Upgrade:Support OTA upgrading.
The V52A operation mode:
Miracast mode:
Under this mode,wifi display dongle can "mirror"100% on TV what you do with your smart devices as long as the device are "Miracast" certificated.
Airplay Mode:
Wi-fi Display dongle can cast the photo and Full HD 1080P video of your device direct on TV,even online content,point real time basis.
DLNA Mode:
This is similar function as airplay which is based on Android device.
Win Mode:
With this wireless display mode,user can cast whole screen of device to TV even projector.
System request:win 7/8.0/8.1.
. miracast android internet tv box with apk
Vsmart V52A hot selling android 4.2 tv box with chromecast
Vensmile Factory Price V52A EZcast TV Dongle External Antenna Android USB Wifi Dongle Support Miracast DLNA Parameters:
| Hardware feature | |
| CPU | Actions AM8251 (MIPS 600MHz) |
| RAM | DDRⅢ-128MB |
| Storage | Flash 128MB |
| OS | Linux |
| UI | Standard UI |
| Software feature | |
| EZCast | Support Android/iOS by EZCast APP(sharing local and streaming content to tv screen) |
| DLNA:DMP | Display photo, audio and videos base on DLNA protocol Android |
| EZMirror(Miracast) | Support miracast function(certified with wifi display) |
| Airplay Mirroring | Support 100% real-time mirroring iOS phone/pad via airplay mirroring function |
| soft AP | Cell phone can connect to EZCast-AP to another WIFI router |
| remote control | Android/software: EZCast app |
| Wi-Fi Module | Yes(have be built-in wi-fi module) |
| Wi-Fi | 802.11b/g/n 150Mbps 2.4Ghz |
| Video | MPEG-2, H.264,MPEG-4,at 1080P |
| Audio | MP3, WMA, OGG, WAVE,… |
| Interface definition | |
| output interface | HD 1.3 type A male |
| USB HOST | yes USB HSOT *1 for firmware update only |
| power | 5V/500MAUSB cable USB type A to Micro USB |
| key | U-key(update resite) |
Notice
-This manual includes safety instruction and how to use it correctly ,please read it to avoid any accident .
-Please do not put this item under high temperate ,humid,dusty place. -Avoid dropping or conflicting.
-Please do not disconnect when item upload or download ,or format ,or may cause error.
-Please do not disassemble the item ,do not touch alcoholic, diluent, Benzene
-No notice will be informed if Any product improve or change .
-Company will offer item service and maintain,we have no duty for the data loss during the use of the item.
-This item is not waterproof.
-The pictures in this manual just for reference.
V5II EZCast operation video:
/watch?v=TaW1MYDMu2Q&feature=youtu.be

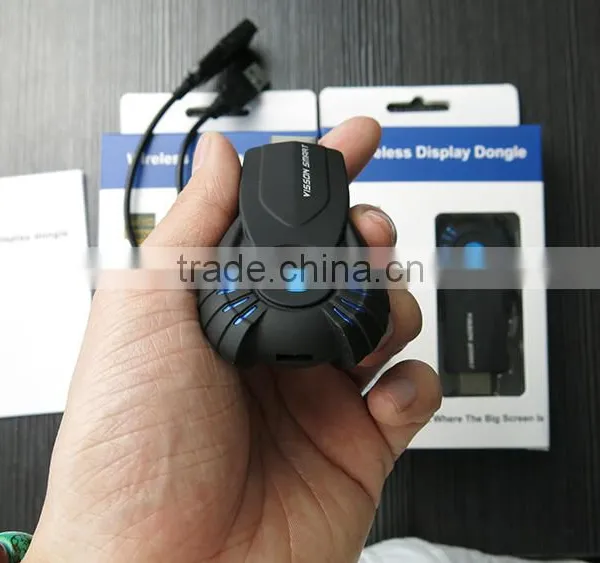

Package and accessories:
Package:

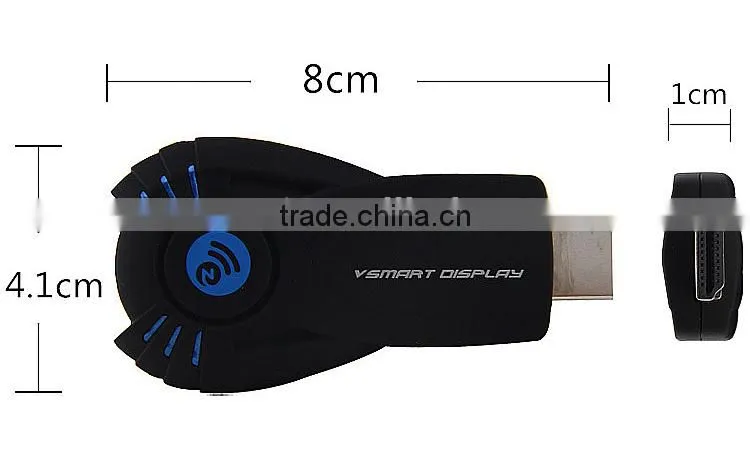

| Product size: | 8(L) x 4.1(W) x 1(H) cm |
| Quantity/Carton | 60pcs/Carton |
| Packing | Color box |
| Color box size | 17.8 * 10.3 * 3.2cm |
| N.W | 5.44KG |
| G.W | 5.9KG |
| Carton Size | 340*320*360cm |
Accessories:
HD line;
WiFi, USB 2 in 1 line/ USB line
User manual
Why you buy from us:
1.Leading manufactory and top supplier in alibaba;
2.Low prices direct from factory suppliers;
3.Fast delivery around the globe;
4.Professional OEM/ODM and personalized private customize;
5.High quality with global standards;
1.Frame Skipping or not smooth during display:
please make sure wifi display dongle not been sheltered or put behind TV set,otherwise wifi signal will be affected.
2.TV indicates”low current”:
Please check if your TV usb port can not offer enough power. In this case, you can use mobile phone’s power adapter.
3.Can not use Miracast:
Please make sure your smart phone is miracast certificated.
4.Buffering:
Please use dongle in a stable wifi signal the or adjust the position of router when streaming content buffering to much time.
