Home > Electrical & Electronics > Inverter > Power Inverter > 48V 3000w Home Use Sine Wave Power Inverter

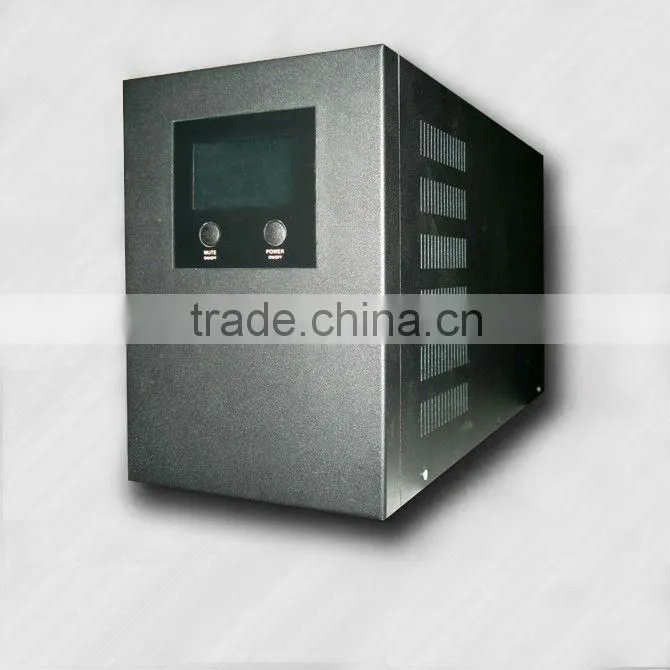

48V 3000w Home Use Sine Wave Power Inverter
US$ 39 - 40
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
JN
Model Number:
JN-PW3000-48
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
48V 2000w Home Use Sine Wave Power InverterUS$ 39 - 40MOQ: 100 Pieces -
48V 1500w Home Use Sine Wave Power InverterUS$ 39 - 40MOQ: 100 Pieces
-
24V 3000w Intelligent Power InverterUS$ 39 - 40MOQ: 100 Pieces
-
Solar Intelligent Controller With WaterproofUS$ 70 - 90MOQ: 100 Pieces
-
2013 New Design High Power Wind & Solar Hybrid ControllerUS$ 70 - 90MOQ: 100 Pieces
Place of Origin
Anhui, China
Brand Name
JN
Model Number
JN-PW3000-48
Output Power
1 - 200KW
Output Type
Single
Size
425*200*335
Weight
17
Input Voltage
48V
Output Voltage
110V/220V/240V
Type
DC/AC Inverters
Output Frequency
50HZ/60HZ
Output Current
50A
Specifications
48V 3000w home use Sine Wave Power InverterModel JN-PW3000-48
Rated 48v
48V 2000w home use Sine Wave Power Inverter
| Sine wave inverter series | |||||
| Features: | |||||
| Advanced performance by CPU control | |||||
| Auto voltage regulation(AVR),wide input voltage 145V~275V,accurate output,AVR function,adapt all kinds lf bad electric environments | |||||
| Intelligent battery charging, the charging current can be adjusted according to the equipped battery, it is fast and reliable and can increase the service life of the battery | |||||
| Intelligence display of output voltage,frequency,battery capacity,fault,over load,load | |||||
| User can use the program of RS232 or USB communication′s software to setting timing auto shut down | |||||
| Generator compatibly and external battery connection achievable | |||||
| Adapt all kinds lf bad electric environments | |||||
| It can be automatically started up with mains supply, and has a wider range of applications | |||||
| Advanced automatic constant charging circuit,prolongs battery life | |||||
| It has perfect battery under-voltage, overload, over-discharge, short-circuit protections | |||||
| Technical specification | |||||
| Model XD-NB | 14248 | 21248 | 28248 | 35248 | |
| Rated power | 1400W | 2100W | 2800W | 3500W | |
| Battery | 24VDC/36VDC/48VDC | 48VDC/96VDC | |||
| Size(W×D×H)mm | 405×180×320 | 425×200×335 | |||
| Shipping size(W×D×H)mm | 460×240×380 | 490×290×410 | |||
| Net weight(kg) | 17 | 20 | 28 | 31 | |
| Gross weight (kg) | 18 | 21 | 29 | 32 | |
| Universal parameter | |||||
| Input | Voltage | 145V~275V | |||
| Frequency | 45Hz~65Hz | ||||
| Output | Voltage | 220V±2%(Battery mode) | |||
| Frequency | 50Hz±0.5% | ||||
| Output wave from | Sine wave | ||||
| Output wavefrom distortion | ≤±0.3% | ||||
| Charging | 5A-15A(Adjustable) | ||||
| Display | LED,LCD(Optional) | ||||
| Transfer time | <4ms | ||||
| Surrounding | Noise | ≤50dB | |||
| Temperature | 0°C~40°C | ||||
| Humidity | 10%~90%(no condensate) | ||||
| Efficiency | ≥80% | ||||
| Protection | Overload | Overload110%,30seconds automatic closed-down;Overload120%,2seconds automatic closed-down;city electric mode overload not closed-down,the buzzer sends out alarm sound | |||
| Short-circuit | Output short-circuit, a buzzer ringing, 20 seconds after the automatic closed-down | ||||
| Battery | Battery high-voltage and low-voltage protections | ||||
| Reverse polarity | Battery reverse polqrity protections | ||||
| Alarm sound | A | When the city electricity when in normal work,the maching without alarm,when the utility power failure,the machine is in the working state of the battery,a buzzer 30 seconds each tweet 4 | |||
| B | Battery low voltage alarm buzzer two times per second,a call.Battery mode,the maching fails,the buzzeris urgeng | ||||
| C | Overload buzzer,tweet once per second | ||||
| Remark | Specification only for reference.Subject to change prior notice | ||||
