Help Center24V 10A Water Proof Solar Controller Built in LED Driver With Time and Light Control Function
Related Products
-
192V 10kw Home Use Sine Wave Power InverterUS$ 39 - 40MOQ: 100 Pieces -
192V 7000w Home Use Sine Wave Power InverterUS$ 39 - 40MOQ: 100 Pieces
-
192V 6000w Home Use Sine Wave Power InverterUS$ 39 - 40MOQ: 100 Pieces
-
192V 5000w Home Use Sine Wave Power InverterUS$ 39 - 40MOQ: 100 Pieces
-
96V 7000w Home Use Sine Wave Power InverterUS$ 39 - 40MOQ: 100 Pieces
Specifications
24V 10A water proof solar controller built in LED driver with time and light control functionModel No: JN-CI03
Rated 24
Maxi

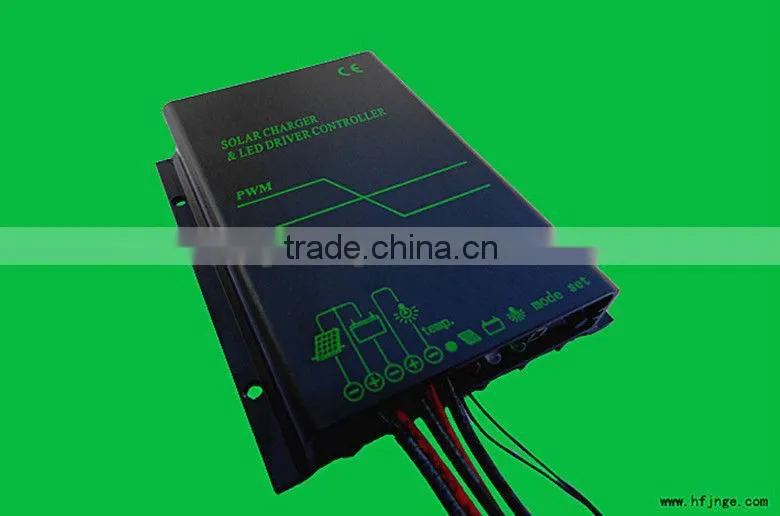

24V 10A water proof solar controller built in LED driver with time and light control function
Spec parameters
System voltage |
12V/24V Auto |
System current |
5A/10A/15A |
No-load consumption |
< 5mA |
Solar input voltage |
< 55V |
Over voltage protection |
16.5V;*2/24V |
Equalizing charge voltage |
14.6V;*2/24V(25°C),hold time:1 hour |
Float charge voltage |
13.8V;*2/24V (25°C) |
Charge return voltage |
13.2V;*2/24V (25°C) |
Over discharge voltage |
12.5V;*2/24V |
Over discharge protection |
10.8V;*2/24V |
Light control voltage |
Light control OPEN 7V, Light control CLOSE 2V |
Working temperature |
-35°C-------+65°C; |
Protection level |
IP68 |
Net weight |
0.15Kg |
Size |
102*81*19.6(mm)(L×W×H) |
I. Main Feature
1. IP68 waterproof , aluminum shell , can effectively prevent all forms of rusty.
2. 12V/24V automatic identified system .
3. LED digital display and waterproof keyboard operation, using simple and quick.
4. Improved three-step charging algorithm, the battery is charged per week, equalizing charge, effectively prevent the battery inequality and sulfuration, improve battery life.
5. Five kinds of loading modes, easy to use in a variety of solar street lights and led equipment.
6. Parameter settings can be saved after power-down. Do not need to re-set, so easy and quick for using.
7. Various status indicators.
8. Embedded high-performance LED constant current driver, the maximum efficiency of the constant current source can reach to 96%, the maximum voltage of the load output can reach to 70V and can drive up to 20 series LED
9. With over-charging, over-discharging protection.
10. TVS lightning protection
An Hui Jing Neng Green Energy Co.,Ltd
www .
Tel : 86-15955195857 Fax : 86-551-8564587
