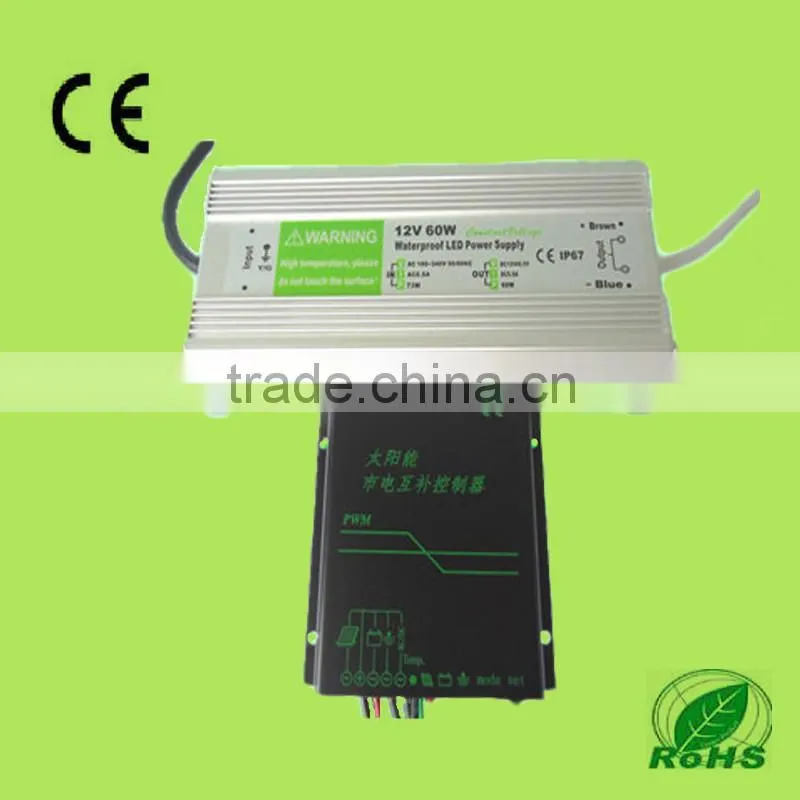

JN series Solar Electricity hybrid charge controller application for solar lighting system12V5A

Specifications

1.automatic identification
2.light and time control
3.used in household and street lamp system
4.better quality and service

JC series portable solar&grid hybrid controller

Overview:

Theproduct is the new generation of intelligent solar charge and discharge controller, it has strong stability and high service life. Grid Electric is uninterrupted switching to output electric automatically to ensure system continuous work with automatic detection battery voltage function, pwm charging way andcomprehensive protection function: overcharge,over-discharge, over-current, short-circuit, reversed etc.

Functions:

1.The controller has both household and streetlamp.2.The controller has 12 v, 24 v automatic identification3. The controller is applied to Grid Electric is uninterrupted switching to output electric automatically to ensure system continuous work .4.The controller has light control and time control (street lamp type).5.The controller has the overcharge, discharge, over current, short circuit, answer back and protective measures.5.Scientific and renew shape design, and usage of high-grade protection 6.With the Strong charging and equilibrium charging, floating three-step PWM control charging ways.

Safety advice:

1.The controller has reverse connection protection, it is restricted to reverse connection, or make some damage to the load .2.The controller doesn't work properly or stop working after connecting the battery, need to check the wire from controller to battery, don’t be allowed to connect the panels in that time (both panels and batteries are reverse connection, that make controller damage).3.Battery has lots of energy, at any time to avoid battery accidental short circuit.4.Battery will produce some combustible gas after full charging, so far from spark to prevent explosion.5.To comply with the battery manufacturer's safety advice, avoid touching of children, prevent accidents.

Technical parameters:



Rated volatge	12V	24V
Strong charging pressure	14.8V	29.6V
Equilibrium charging	14.5V	29.0V
Float charging pressure	13.7V	27.4V
Under Voltage	10.8V	21.6V
Recovery of under voltage	13.0V	26.0V
Voltage of switching	11.0V	22.0V
Maximumcharging current	20A	20A
Maximum load current	10A	10A
Protection of Controller	Over-load,reverse,connection Over-discharging,Over-charging,short-circuit etc.
Charging way	PWM adjusting
elevation	≤5500m(more than 2000m pls decrease the wattage of controller
Working temperature	-40-60°C
Weight (GW)	200g
Size of products (L*W*H)	136*92*31mm
Protection Grade	IP56





























































Note:
