Help Center1000Watt High Efficency Generator Solar Energy System for Home
Related Products
-
5000W Battery System JN-H5000W Control System Home,350W Solar Panel, Solar Power SytemUS$ 1,000 - 1,200MOQ: 10 Sets -
1000W High Efficency Solar Energy System /solar System for Home / 1kw off Grid Solar Power System, Battery Solar SystemUS$ 500 - 550MOQ: 10 Sets
-
5000W Battery Solar System JN-H5000W Control System Home,350W Solar Panel, Solar Power SytemUS$ 1,000 - 1,200MOQ: 10 Sets
-
300w Solar System for Home Use Without Battery(solar Panel,inverter,controller,mounting,cable,connector),350watt Solar PanelsUS$ 120 - 150MOQ: 10 Sets
-
5000W Solar System Control System Home 350W Solar Panel Solar Power SytemUS$ 1,000 - 1,200MOQ: 10 Sets

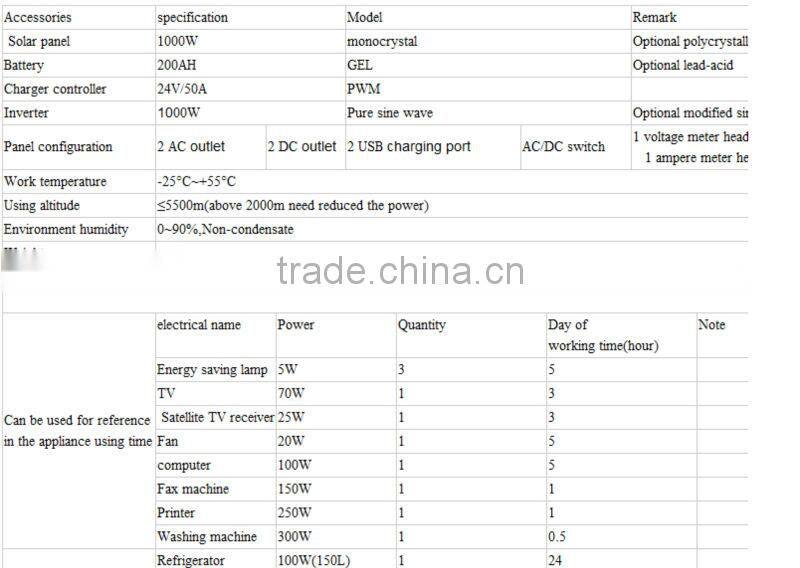

Specifications
Solar panel:1000wBattery:200ah
charge controller:24v/50a
inverter:1000w

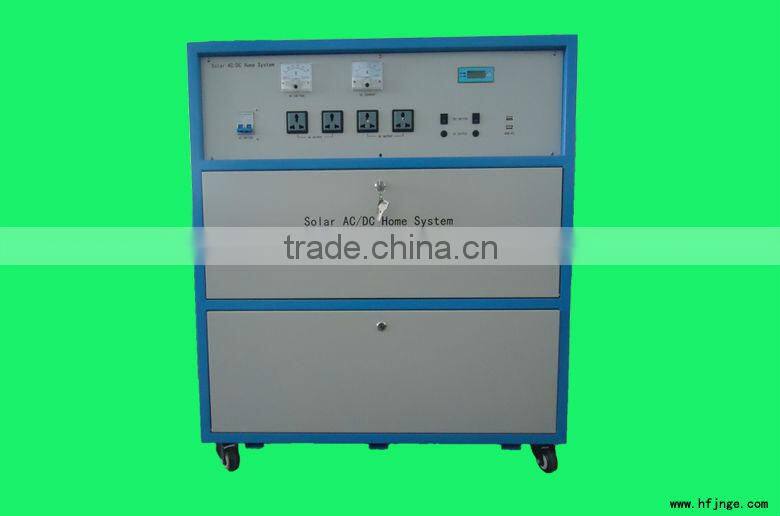

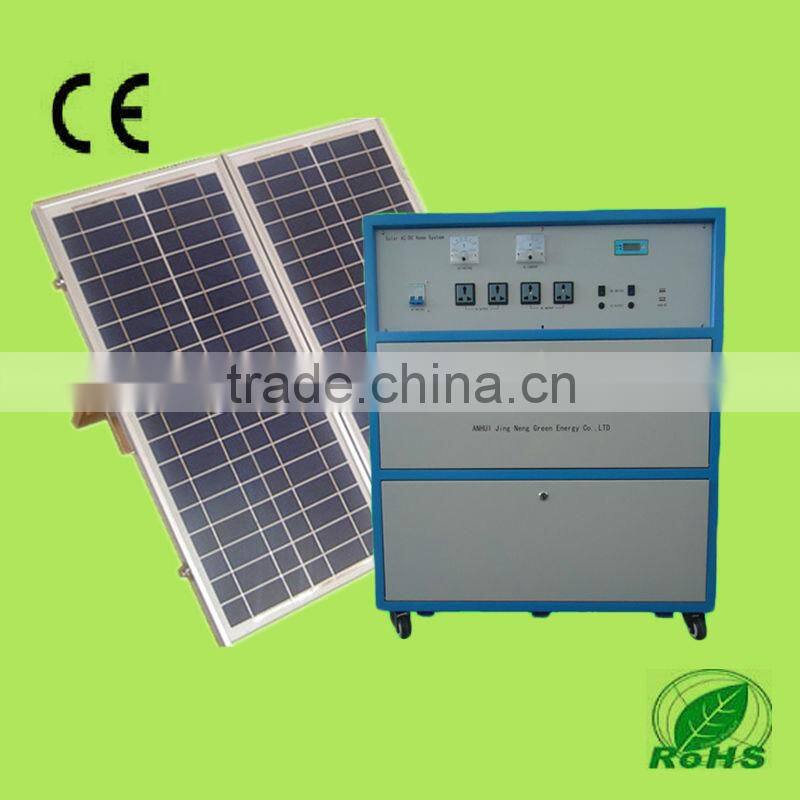

Picture of system:
Function:
DC12V and DC5V output: DC output port for your dc devices charging and power supply function.
Operation method
Before machine installation and use, please carefully read the following safety precautions and related content, please fully
understand its content then can operate , thank you for your cooperation! Please click the following method:
1.Prepare related installation tools (e.g., wrench) and accessories (such as DC power cord), and check the machine's installation
position is in line with the requirements of security considerations.
2.Check the battery or the batteries voltage is within the scope of the requirements or not(Refer to the technical parameters of this manual), confirm the battery or the batteries of the positive (red mark), negative
(black mark) and all-in-one battery input positive connection cable (red)and negative connecting cable (black).
3.Disconnect circuit breaker on machine, shut off the inverter power switch.
4.All-in-one battery input positive red connection cable connected to the battery or the batteries positive (red),battery input negative
black cable connection battery or the battery negative (black), to ensure the reliable and strong joint connection, banned the
battery positive and positive reverse connection, banned the any conductor will short circuit battery positive and negative plate,
please carefully check the robustness of each joint, such as the connection is not tight may cause local overheating and burning.
5.The circuit breaker closing machine, if the quantity is enough, the DC output port can normal power supply, LCD header can
have normal instructions. Open the front panel of the inverter power switch, the INVERT indicator, AC output socket universal to
use electrical power supply (please note that household appliances generally rated power, not more than inverter rated power).
6.Use solar panels mounted outdoors for the position of the sun, and solar panels output lead to machine the solar panels on
the input side (distinguish the positive and negative, the solar panels cables through current should not be greater than 3A/mm2)
if sunny right now, the LCD meter charging status indicator.
Note: please strictly according to the instructions for installation, the circuit breaker is only in the case of major breakdowns will
automatically disconnect, please don't disconnect circuit breaker after line normal operation of the system. If have to disconnect,
please be sure to removing the solar panels first input end. Once again when installation, first close the circuit breaker, connected
to the solar panels again.
