500w Solar Energy System Price

US$ 203 - 217 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

Model Number:

JN-300

Contact Supplier Request Quote Chat Now

Anhui Jing Neng Green Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai / ningbo /shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name JN

Model Number JN-300

Specification Normal

Application Home

Output Voltage (V) 12v

Solar Power (W) 100w

Work Time (h) 3 Lights work 5H

Specifications

Solar panel:300w
This price contain inverter & controller
Battery:12v/55ah
inverter 300w
keep 2 lights work 8 hours

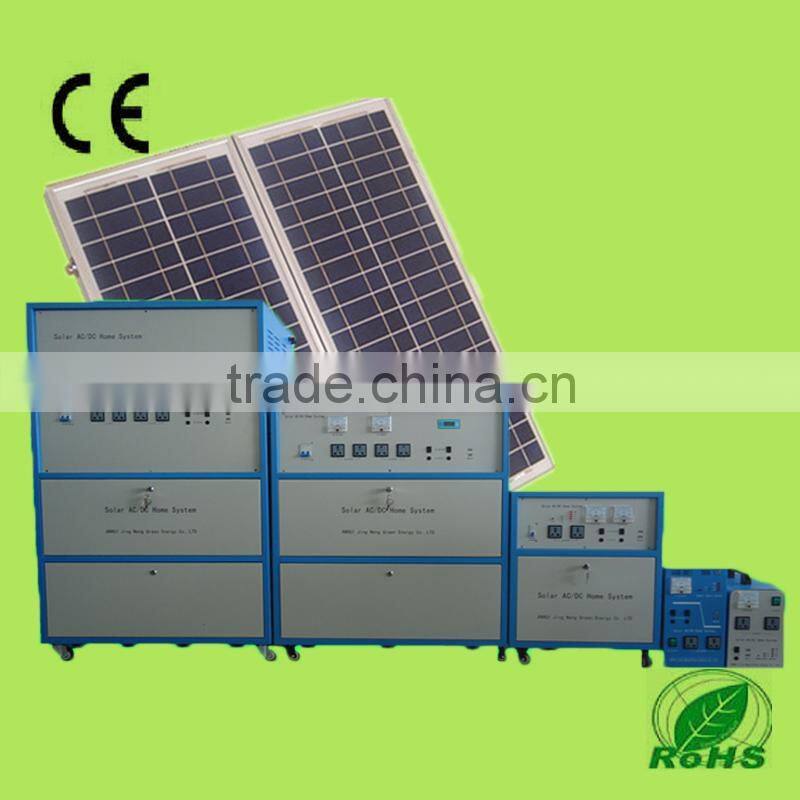

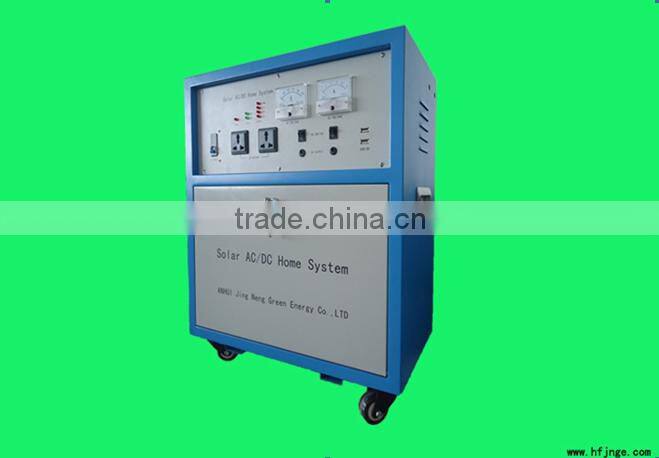

Picture of system:

Function:

Ⅰ.Overview

JingNeng series of solar power generation system is set of solar panel, battery, charge controller, inverter.,and so on,as one of the complete set of solar power generation system, using solar panels to battery management and control, the automatic management of battery discharge and have all kinds of protection function of intelligent control devices andinverterdevices, the system adopts the microcomputer chip, non-contact control technology, has the ABM advanced battery management system such as intelligent discharge technology. With over charge, over discharge, short circuit, over current, overload, over voltage and a series of perfect protection function, with high efficiency and energy saving, safe and reliable, to adapt to bad working environment and other aspects. They can be widely used in telecommunications, electric power, family power supply and other fields,and comply with relevant standards at home and abroad.

II.Note

The product has been fully considered in the design of the user personal property security, to ensure your security

and interests, at the time of installation and use, please observe the following rules:

1.Please don't on uneven or tilt.

2.Avoid direct sunlight, rain or damp places.

3.Please stay away from fire and high temperature, in case the temperature is too high.

4.Avoid placed in the corrosive gas

5.Please try to put this machine in clean, ventilated place, around and back at least 10 cm from the wall, please do not place items on board, in case of clogged ventilation holes.

6.Please do not insert any other object or any liquids into the chassis.

7.It is strictly prohibited to open the case, if the failure occurs please contact professional maintenance personnel or distributor.

III.The design features

1.Battery charging function: The all-in-one machineduring the day can constantly send the solar panels’s energyinto the battery, can adjust the charging current according to battery voltage, in order to prolong the service life of storage battery, it also have floating function, keep the battery in a full status for a rainy day. In addition the all-in-one prevent reverse charging battery to solar panelsat night.

2.Battery undervoltage protection function: Using inverter electric power supply for a long time will lead to a serious loss of battery voltage, greatly affect the service life of the battery. The machine can be shut in the storage battery voltage down to 11.0V dc output, 10.8V closed ac output. In order to prevent the over discharge of storage battery damage.

3.Battery over-voltage protection function: Normal inverter input voltage is 12.0v, if the input voltage more than 16.5v inverter input voltage will take protection measures to prevent too high damage to the machine itself.

4.Overload protection function: When you access the appliance is overmuch, total power over rating of the inverter, it will stop working for 10 seconds, lock the protection status, and report to the police, until you reduce the load, and the inverter power switch to "OFF" position more than 10 seconds, and then back to "ON" position, the inverter to restore work.

5.Short circuit protection function: When your household appliances internal short circuit occurs, the inverter will stop working in 1 seconds, and lock protection status, and report to the police, until you remove the short circuitshome appliances,and the inverter power supply switch to "OFF" position more than 10 seconds, and then back to "ON" position, the inverter to restore work.

6.Temperature protection function: When you load more, poor ventilation or the climate is hot, the temperature inside the inverter will gradually rise, if the temperature continues to rise to 100 °C inverter will stop working, and lock to protect state, suggest that you reduce the load or to improve the ventilation environment, the inverter power supply switch to "OFF" position, when the internal temperature decrease, and then to the "ON" position, the inverter will come back to work.

7.Status indication function: It have fault indicator, inverter indicator, and multi-function LCD or pointer to the header show,let all status be clear at a glance.

8.DC12V and DC5V output: DC output port for your dc devices charging and power supply function.

Accessories	specification			Model				Remark
Solar panel	300W			monocrystal				Optional polycrystalline
Battery	12V/100AH			GEL				Optional lead-acid
Charger controller	12V/20A			PWM
Inverter	500W			Pure sine wave				Optional modified sine wave
Panel configuration	2 AC outlet	2 DC outlet		2 USB charging port		AC/DC switch		1 voltage meter head / 1 ampere meter head
Work temperature	-25°C~+55°C
Using altitude	≤5500m(above 2000m need reduced the power)
Environment humidity	0~90%,Non-condensate
Weight	----

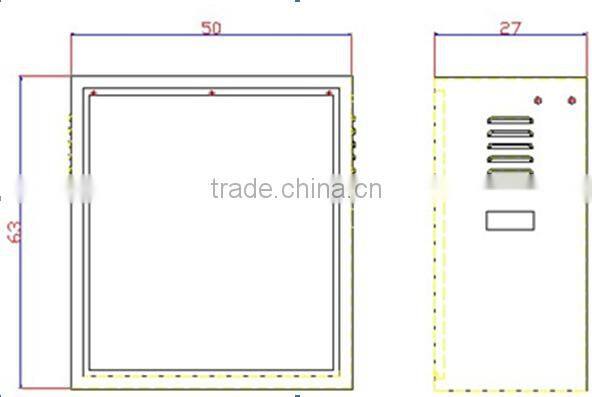

Size	500×270×630(MM)

Can be used for reference in the appliance using time	electrical name		Power		Quantity		Day of working time(hour)		Note
	Energy saving lamp		1W		3		5H
	TV		70W		1		3H
	Satellite TV receiver		25W		1		3H
	Fan		20W		1		5H
	computer		100W		1		3H
