30W/18V Solar Panel Polycrystalline Silicon Solar Module Specifications,10 Years Warranty

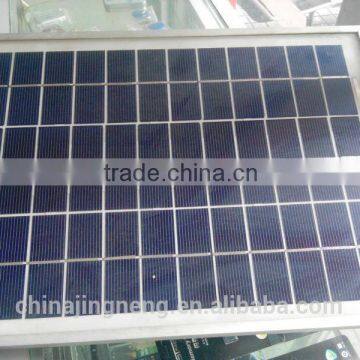

30W/18V Solar Panel Polycrystalline Silicon Solar Module Specifications,10 Years Warranty photo-1
US$ 0.65 - 0.8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
JN
Type:
Other, module
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name JN
Type Other, module

Specifications

30W/18V solar panel polycrystalline silicon solar module specifications,10 years warranty

30W/18V solar panel polycrystalline silicon solar module specifications,10 years warranty





Parameters

IMOK30P-12

Peak power Pm(W)

30±3%

Open circuit voltage Voc(V)

21.6

Max. power voltage Vmp(V)

18.0

Max. power current Imp(A)

1.67

Short circuit current Isc(A)

1.81

Solar cells Efficiency

16.5%

Dimensions(L*W*T)/ Weight(kgs)

720*345*25mm/3.6 kgs

solar cell / No. of cells and connections

Poly crystalline silicon 156*35*0.19mm/36 series

Front cover(material/thickness)

Low-iron temperd glass/3.2mm

Encapsulant(material)

Ethylene vinyl acetate(EVA)

Frame(material/collor)

Anodized aluminum alloy/silver

Junction box protection degree

≥IP65

Cable /Cable connector Model

------

STC

Irradiance:1000W/m2,Cell temperature:25°C,AM:1.5

Max. static load ,front(e. g .,snow/wind)

2400Pa

Max. static load ,back(e. g .,wind)

2400Pa

Max. hailstone impact (diameter/velocity)

25mm/ 23m/s

Max. system voltage (V)

1000V DC

Application Class

Class A

NOCT

48±2°C

Operating temperature limits

-40°C- +85°C

Coefficient current TK

0.1%/°C

Coefficient voltage TK

-0.37%/°C

Coefficient power  TK

-0.45%/°C

Life

≥25 years

Warranty

10 years guarantee 90% rated power, 25 years guarantee 80% rated power

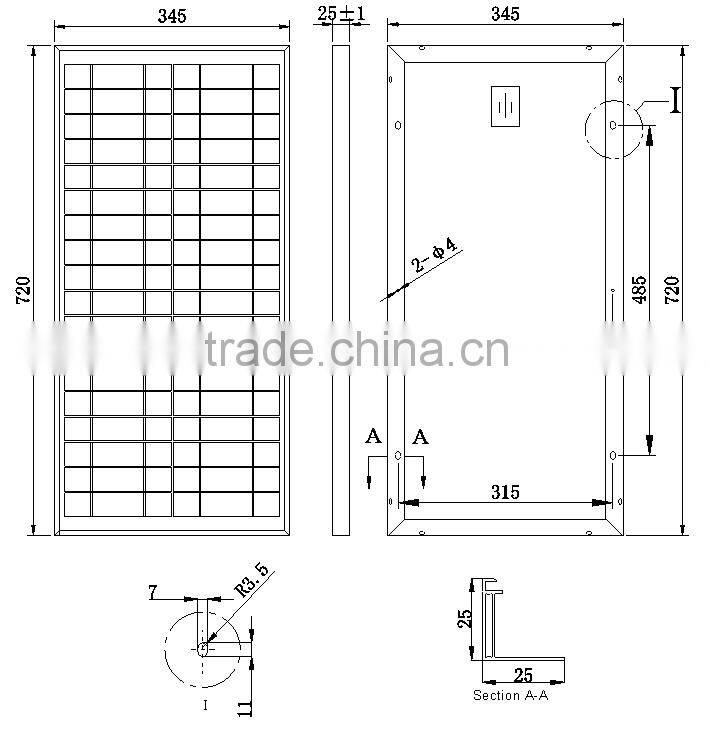

30W/18V polycrystalline silicon solar modules CAD diagram





30W/18V solar panel polycrystalline silicon solar module specifications,10 years warranty

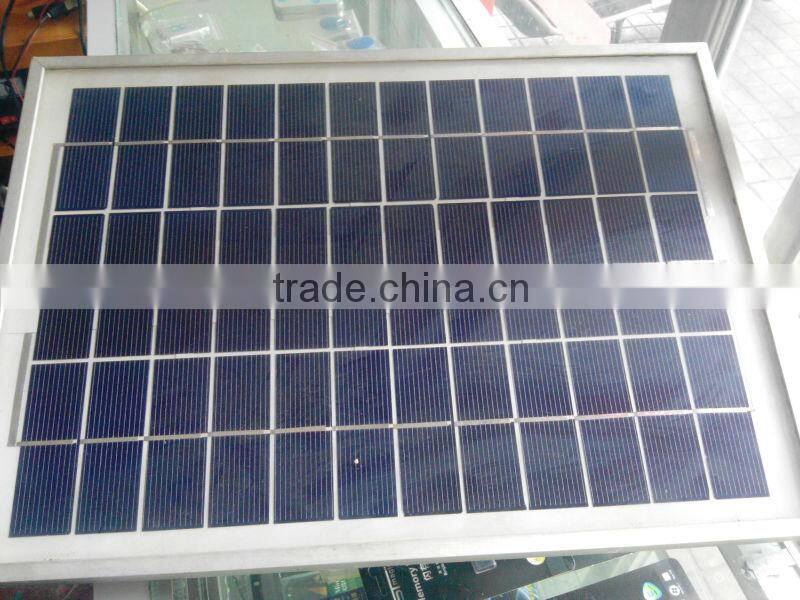

30W/18V polycrystalline silicon solar modules picture



30W/18V solar panel polycrystalline silicon solar module specifications,10 years warranty30W/18V solar panel polycrystalline silicon solar module specifications,10 years warranty
