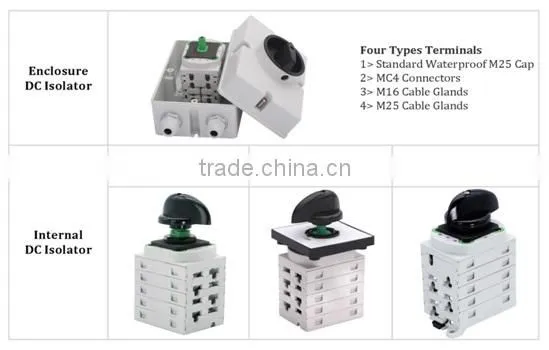

DC Isolator Switch enclosure IP66 PV solar -1500V 32A 2pole

APPLICATION:

The 32Amp 2 Pole 1500VDC Rotary Isolator Switch by PROJOY is generally used to isolate power in high-voltage industrial applications, such as solar system, between the solar Inverter and the solar Panels(PV Array).

● Max58A and 1500V
● Available in 2 or 4 Pole, suit for 1 ~ 2 MPPT
● Protection degree: IP66 with F1 anti UV certification
● IEC, TUV, SAA, CE, CB, UL, Europe Patent certificated
● Working Temperature: Full efficiency between -25℃ ~ 70℃
● 10 years guarantee certificate
● Handy Locking Mechanism while off keeps it safe from Children or Un-Authorized access
● Operator Independent trigger Ratchet Switching and Knife Edge Self Cleaning Contact Mechanism

MAIN FEATURE:

(1) Italy brand with Europe patent, so don't need to worry about patent conflict.
(2) Solar certificated wire, not normal wire inside
(3) Recall & Damage risk cover by insurance company
(4) The highest F1 certificate to anti-UV light of whole enclosure box
(5) All material imported from German & Japan
(6) Own professional isolator lab and will test every batch of isolators before leaving factory, ISO9001 certificate quality control

Enclosed box F1 Certificate:

Enclosed box is made by F1 certificated material imported from overseas, only material can truly anti UV light:

"Suitable for outdoor use with respect to exposure to UV light, water Exposure and Immersion in accordance with UL 746C"

Leading structure

2-12POLES, suit for 1-6MPPT

Only structure can meet SAA & TUV new regulation : EN60947-1 : 2007

By using the rotation of the elastic material savings force , when the elastic force catch the critical point, Projoy isolator can cut-off the current in a moment. Shorter switching time to 2ms, truly reducing ARC

Multi-connection mode(Jumper)

Personalized multi-connection mode(Jumper) for customers choosing:
**Internal wiring mode： German and Japan made copper Jumper

**External connection mode: Solar certificated cable

Insurance warranty for 10 years

10 years warranty underwrited by PIN AN insurance company, covering damage & recall. So your clients can easy buy PROJOY product without any risk :-)

Some detail terms as below:
USD1000000 in aggregate
USD500000 per occurrence
USD250000 for each accident damage compensation
USD250000 for each accident or personal injury damages

PROJOY® brand story:

1. Found in 1989 and manufacture button switches & Relays &terminals for international famous brands.
2. Professonal isolator R&D lab, 28000sq.m. neat plants, 3000 skilled workers and the strict quality management     system.
3. Launch new brand PROJOY® since 2013 in Italy and committed to combine foreign advanced technology, the overseas quality materials and the domestic low-cost assembly, providing customers with the highest ratio solution. Now PROJOY®is one of the biggest built -in DC isolator supplier for solar inverter manufacturers.
