Hot Sale chinese cnc plasma cutting machine
Features of chinese cnc plasma cutting machine
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
Application materials chinese cnc plasma cutting machine
For iron, aluminum, galvanized sheet, white sheet, titanium plate and other metal plates.
Components of the equipment
A : Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.
B : Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair.
C : Torch assembly including :Two cutting torches
D : Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.
E: Control system: Micro EDGE CNC system and Japan FUJI all-digital AC servo driving system
F: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.
G: Plasma power: USA Hypertherm MAX200
H: Software: Australia FASTCAM Nesting software.
I: Height adjustment: Hypertherm.
Parameters:
Name |
parameters |
unit |
|
Processing area |
2000*3000/1500*3000 /1300*2500 |
mm |
|
Processing materials |
Iron, aluminum, galvanized sheet, white sheet, titanium plate |
|
|
Processing thickness |
0.5-15 |
mm |
|
Cutting speed |
0-8000 |
mm/min |
|
Power |
8.5 |
KW |
|
Input voltage |
3-phase 380 |
V |
|
Power frequency |
50 |
HZ |
|
Plasma current |
60 or 100 |
A |
|
File transfer mode |
USB interface |
|
|
work |
Non-contact arc |
||

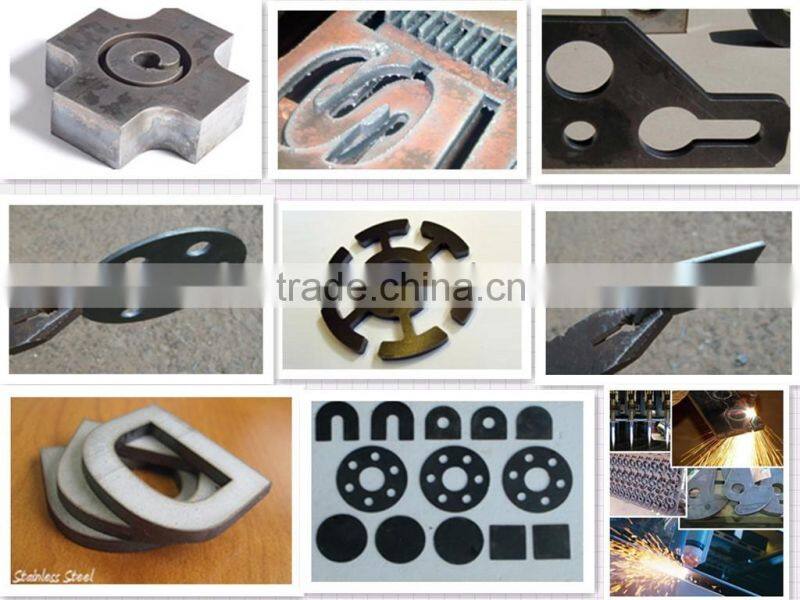

Samples show:

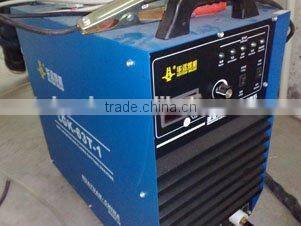

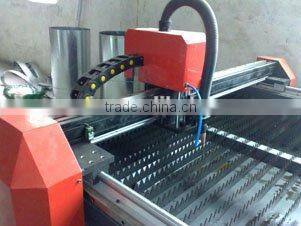

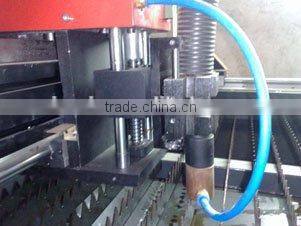

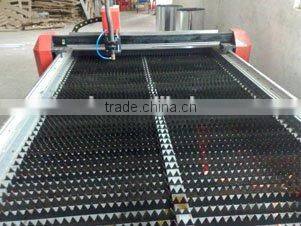

Machine details:
Hot sale products:
After sale service
1. 1.5 years guarantee for the whole machine.
2.Detailed manual and video to teach the users how to use the machine, also supply the specification settings for the speed and power to engrave or cut various materials.
3.If you have any question, we can solve it with pictures, videos etc.
4.Lively and fast technical guide and solution within 24 hours by email and web or skype!
My Skype:sinmicdaisy
Look forward to your cooperation!
Sincerely service for you.
