Help CenterHigh Speed of Yag Metal Laser Cutting Machine for Sale
Related Products
Specifications
Hot sale yag metal laser cutting machine for sale1.Laser 650W
2.PC control system
3.Japan YASKAWA servo motor
4.CE
High quality yag metal laser cutting machine for sale
Applicable materials and industry:
YAG laser cutting has been widely used in metal sheet processing, aeronautics, electronic, electrical appliances, food machinery, textile machinery, e
ngineering machinery, precision parts,ship, metallurgical equipment, elevator,household appliances,craft,processing tools,decoration and advertisement,etc.
Technical parameter of yag metal laser cutting machine for sale
NO. |
Model |
S/L YAG 650W |
1 |
Working area |
1300x2500mm |
2 |
Laser medium |
YAG |
3 |
Laser power |
650w |
4 |
Laser wave length |
1064nm |
5 |
Laser pulse frequency |
0.1-500Hz |
6 |
Width of pulse |
0.2- 20ms |
7 |
Min line width |
≤0.15mm |
8 |
Positon accuracy |
0.03mm/m |
9 |
Repetition accuracy |
0.02mm/m |
10 |
Focus method |
Following and automatic adjust focus |
11 |
Guide rail |
Hiwin from Taiwan |
12 |
Transmission method |
Ball screw from Germany |
13 |
Drive system |
Servo motor and drivers |
14 |
Cooling system |
7p water chiller |
15 |
Control system |
Motion control card+PC |
16 |
Control software |
Software of RF Laser |
17 |
Graphic format support |
BMP,HPGL,PLT,DST and AL,etc |
18 |
Working environment |
Temperature:0-45°C, |
19 |
Equipment power |
0-20kw |
20 |
Power supply |
380v/50Hz |
21 |
Total weight |
1700kg |
22 |
Packaging size |
2300x2100x1500mm |

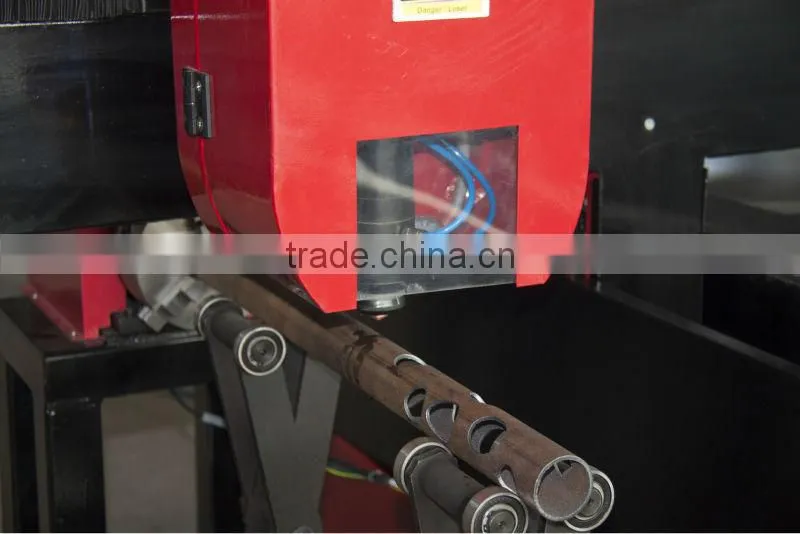

Samples of machine:

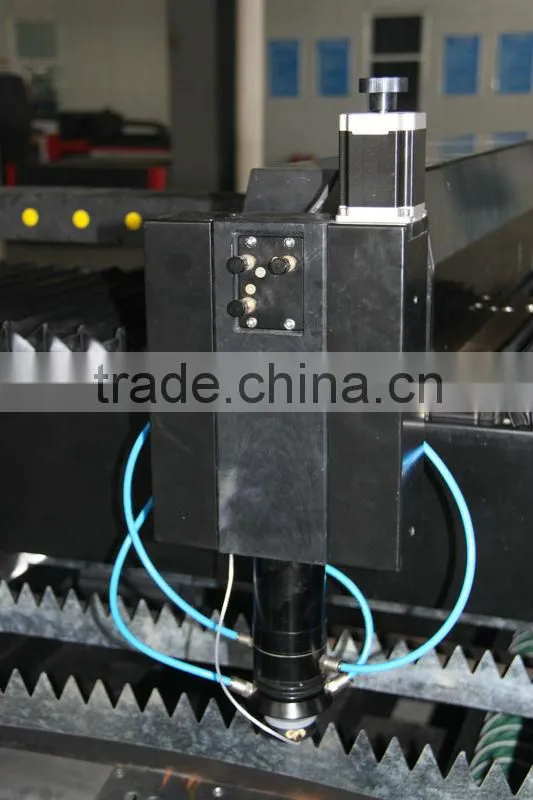

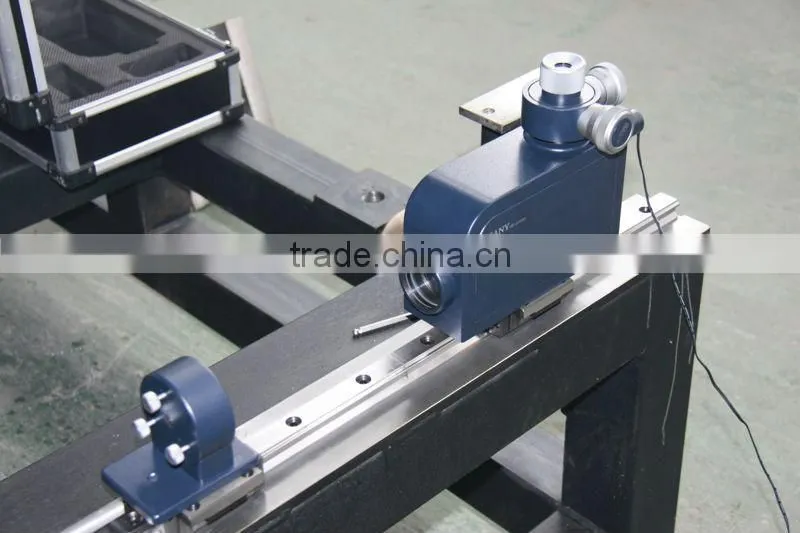

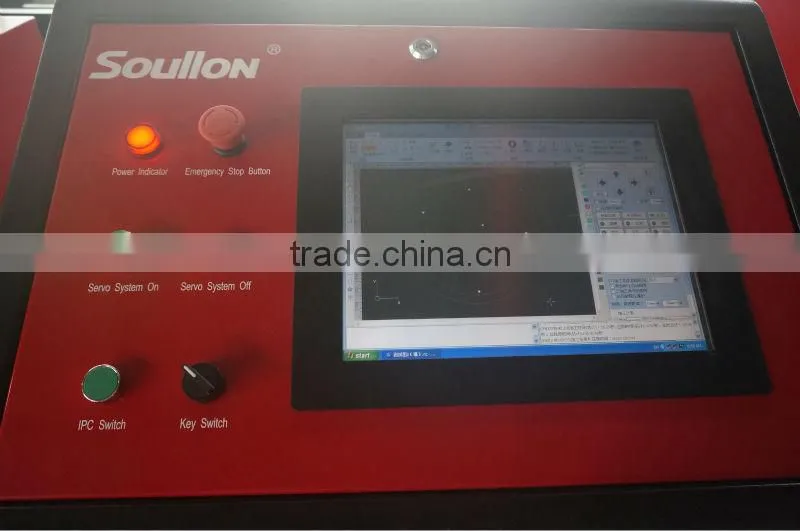

Details of machine:
Hot sale products:
Advantages of laser cut machine:
Self-design and self-manufacture
- Advanced Servo motor
- Cutting speed is 100 times more than line cutting
- Using cost is only 1/8 to 1/10 of similar performance CO2 laser cutting machines
- Low maintenance cost: only 1/10 to 1/15 of similar CO2 laser cutting machines and 1/3 to 1/4 of similar performance CNC punch machines.
- YAG laser equipment is one of the most steady and mellow products in the laser field.
why you choose us?
With an experienced team of 1st Class Machinists and 1st Class Sheet Metal Workers, we have passed ISO 9000 and machine quality is trusted.
- The most competitive advantage of Soullon sheet metal laser cutter is that we research and develop laser generator by our company. We are totally familiar with the core of YAG sheet metal laser cutter, which enable effective after-sale services.
- We depend on our domestic reputation and customer satisfaction to succeed. We have been trying to be the best laser equipments supplier in China.
If you need more details, please contact me directly.
