Home > Products > laser cutting machine > Advertising Sign laser machine for metal and nonmetat 150/200w CO2 Acrylic and 2mm stainless steel Laser Cutting Bed S/L-1325

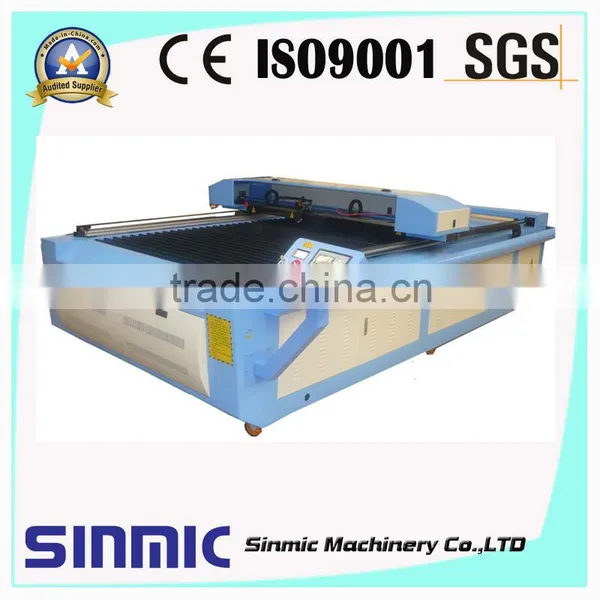

Advertising Sign laser machine for metal and nonmetat 150/200w CO2 Acrylic and 2mm stainless steel Laser Cutting Bed S/L-1325
- 150 Set / Sets per Month
- TIANJIN/QINGDAO/SHANGHAI
- T/T Credit Card PayPal
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plywood, Rubber, Stone, Wood |
Cutting Thickness: | 0-30mm | Cutting Area: | 1300x2500mm | Cutting Speed: | 0-50000mm/min |
CNC or Not: | Yes | Cooling Mode: | Other, Water Cooling, Water Cooling | Control Software: | REDCAM |
Graphic Format Supported: | AI, PLT, DXF, BMP, DST, DXP, AI, DXF, BMP, DST, DWG | Place of Origin: | Shandong, China | Brand Name: | SINMIC |
Model Number: | S/L 1325 | Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
laser cutting1) blade worktable
2) stepper motor
3) red light pointer
4) controller with
Advertising Sign laser machine for metal and nonmetat 150/200w CO2 Acrylic and 2mm stainless steel Laser Cutting Bed S/L-1325
Machine Introduction of 1325 co2 laser cutting machine
1. Laser cutting bed, suitable for large size nonmetal materials processing.
2. Very stable 3 phases stepper motor.
3. RECI brand laser tube---80W, 100W, 150W, 180W, which is very good for cutting work.
4. Imported focus lens and reflecting mirrors.
5 HIWIN Linear Rail, durable rubber belt, which can assure high cutting precision.
Applicable materials:
No-nmetal materials such as acrylic board, rubber board, wood, MDF, plywood, die board, plastic, foam,
leather, fabric, jeans, textile, etc.
Applicable industries:
Advertisement, furniture, leather, shoemaking, decoration ,packing and printing, molding and art craft industries.
Technical Parameter:
S/L-1325 Laser Cutting Machine | |
Model NO. | S/L-1325 Laser Cutting Machine |
Machine Dimension | 308cm*200cm*112cm |
Cutting Area | 1300x 2500mm |
Laser Power | RECI 80W/100W/150W/180W |
Laser Type | CO2 Laser Tube |
Cutting Speed | 0 -50000mm/min |
Reposition Accuracy | ±0.01mm |
Power Supply | AC 220V, 50HZ or 110V, 60HZ |
Operation Temperature | 0 - 45°C |
Operation Humidity | 5 - 95% |
Min. Shaping Character | Character 2*2mm, English 1 x 1mm |
Graphic Format Supported | PLT, DXF, BMP, AI, DST |
Software Supported | CorelDraw, Photoshop, AutoCAD |
Driving System | Stepper or Servo Motor |
Cooling Mode | Water-cooling and Protection System |
Optional Spare Parts | Red Light Pointer |
Recommended Spare Parts | Laser Tube and Lens |
Net Weight/Gross Weight | 530KGS/550KGS |
Packing Dimension | 3440X1870X1180mm |
Samples:
Main machine parts:
Hot Sale Products
FAQ:
About after-sale service:
a. we offer 2 years warranty for whole machine
b. for laser tube: 40w-for 5 months
60w -for 6months
RECI 80W, 100W,150W,180W-for 10 months
--this is what laser tube supplier offer to us.
c. for laser lens: for one month.
If the accessories are broken because of quality problems during warranty time, you can send back to us, we will repair and send back to you freely.
d. 24hours technical support will be supplied when you need
Laser machine using attention:
(1) Before working must open the industrial chiller and add pure water.
(2) The working temperature will up 5°C, avoid water freezes, frost crack the laser tube.
(3) When the machine is working, it is strictly prohibited to lean into the work area. Avoid burns.
(4) Machine must be keep flat avoid tilt.
(5) When the machine is working, it must be with personnel, avoid fire.
Our factory, welcome to visit.
I'm Daisy, service for you sincerity.
