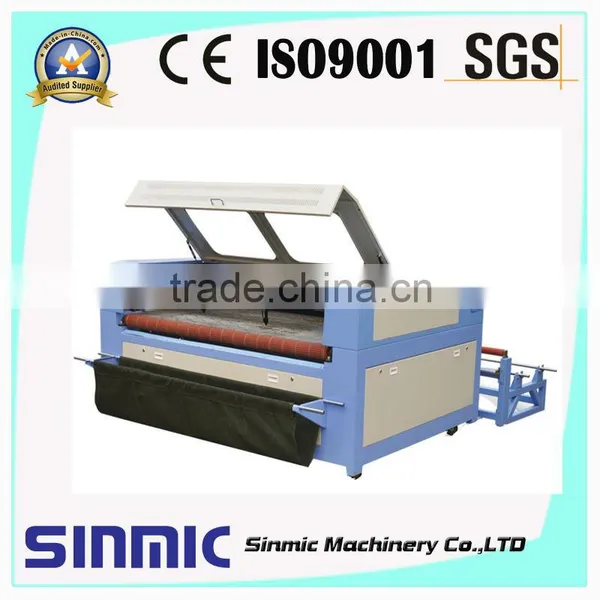

High speed fabric cutting machine with auto feeding system S/L1610

Specifications

Best fabric cutting machine with auto feeding system
1.RECI laser tube
2.Lasercut 5.3
3.Auto feeding system

            Hot sale fabric cutting machine with auto feeding system




Machine Introduction:

1. Auto feeding system to forward materials automatically

2. Dual laer heads work together to improve working efficiency

3. RECI brand laser tube--one of best laser tube in this industry

4. Red light pointer and USB interface to make machine more multifunctional

5. Stable 3 phases stepper motor



Characteristics of fabric cutting machine with auto feeding system

l        Japanese technical engine running, making sure the products to run at high aped and high precision.

l        The original binding beeline lead rail, the mechanic is running well and stable.

l        Channel feeding, the feeding can be unlimited.

l        The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.

l        The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.



Specifications:

Name:	S/L 1610
Processing area	1600mm*1000mm
Laser power	60W,80W,100W,130W,150W
Laser type:	Co2 glass laser tube
Software:	Laser cut 5.3
Dimension:	2.6mm*2m*1.3m
Engraving speed	1-6000mm/min
Cutting speed	1-1000mm/min
Cutting thickness	0-25mm acrylic (others determined by materials)
Resolution ratio	≤0.0125mm
Position system:	Red dot
Interface:	USB
Minimum shaping character	letter 0.5mm, Chinese 0.5mm
Support graphic format	DST, PLT, BMP, DXF
Gross power	1000W
Driving mode:	DC0.8A 24V stepper motor
Cooling mode:	Circulation water cooling
Working voltage:	AC220V/50HZ or 110V/60HZ or depend on customer
Operating temperature	0-45C
Operating humidity:	5-95%
Packing:	wooden box
Guarantee time:	1.5 years, laser tube 8 months
Option:	Rotary attachment for column materials
Operation:	Video to tell customer how to operate the machine





Applicable materials:

Non-metal materials such as acrylic, double color board, Plexiglas,

Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.



Applicable industries:

Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo

and wooden product, garment and leather, embroidery, decoration and upholster industry.



 Samples:













Hot Sale products:





After- Sale Service for laser machine:



1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us.

and all of our machine with a 24 months quality guarantee period.



2> We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine.

We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.



3> We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, Skype,telephone and fax.



4> Our engineer can make a door-to-door instruction training service at your local site.



Our factory:







If you need any model laser machine, please contact me freely ! !
