Specifications
Excellent design EPS cnc machine for sale1. Reasonable price
2. ISO and CE certification
3. One year gurantee

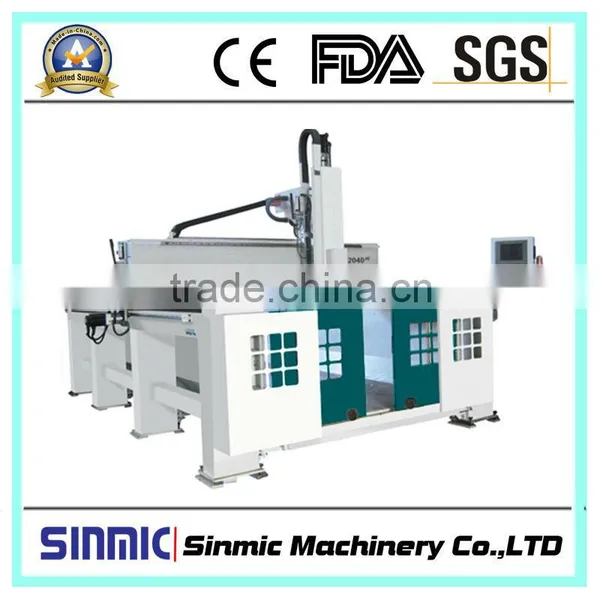

Excellent design EPS cnc machine for sale
1.Product introduction:
# We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.
# The route of Z axis can be heightened to 900mm, so it is suitable for processing large-scale and super-thick material.
# The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.
#The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.
2.Applicable Industry and materials:
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
3.Main parameters:
No. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
2000x4000x900mm |
2 |
Table Size |
2200×4500mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Milling steel table (T-slot) |
6 |
Frame |
Welded structure (cast iron) |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without spindle) 6.5Kw |
10 |
Max. Rapid Travel Rate |
40000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
9.0KW |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Yaskawa servo system |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V)) |
16 |
Command Language |
G code |
17 |
Operating System |
Syntec control System (Osai) |
18 |
Computer Interface |
Ethernet |
19 |
Flash Memory |
256 M(with CF card) |
20 |
Collet |
ER32 (BT30) |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3, UcancameV9, Artcam software |
23 |
Running Environment Temperature |
0 - 45 centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
2300X4800X1900mm (in parts) |
26 |
N.W. |
6500KG |
27 |
G.W. |
7300KG |
28 |
Guarantee |
One year from the date of commission |
29 |
Optional Parts |
Air cooling spindle or Water cooling spindle |
Dust collector | ||
Rotary system | ||
Mist-cooling system | ||
Panasonic Servo motors/Delta servo motors |
4.Sample:
5. Factory:
6.FAQ:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading .
7.After-sale Service:
1.Technical support by phone, e-mail or MSN around the clock.
2.Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 monthssince the date of comission
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
We are looking for distributors from all over the world!
