Specifications
Professional 6090 cnc router china for saleing area:600*900mm
2.2.2kw water colingspindle
3.TAIWAN TBI
4.CE ISO9001
Professional 6090 cnc router china for sale
1. Application:
This machine canbe used for stone, brass and Aluminum sheet
processing, mold manufacturing, wood processing, craft manufacturing,indoor
decoration cutting, sign and mark manufacturing,acrylic boardprocessing,as well
as stamp and PCB drilling,
2.Feature:
1. The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed,
to make sure the machine stability.
2. Pause, adjust speed and cutting depth anytime during cutting, also can preview the tool path.
Convenient for engraving different materials, applicable to different industries.
3. Well-compatibility: The CNC router is characterized by good software compatibility, which can work with various different CAD/CAM software, such as Type 3/artcarm/castmate/pro-E/Coreldraw/wentai/ JDPaint/proe/ug.etc and other CAD/CAM software
4. Imported WEIHONG system. This system have break point memory mode an special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.
3.Parameters:
Model |
S/C-3030M |
Working dimensions |
600x900x300mm |
Body dimensions |
800x1200x1200mm |
Max. Feeding height |
250mm |
Drive type |
Stepper motor |
Blade diameter |
3.175mm,4mm, 6mm(optional) |
Control system |
WEIHONG PC-control |
Spindle motor |
2.2kw water - cooled spindle motor |
Resolution |
0.01mm |
Motion speed |
4200mm/min |
Max. Engraving speed |
3000mm/min |
Rotating speed of spindle |
0-24000rpm |
Operating voltage |
AC220/50HZ |
Soft ware |
Type3 original with dongle /CARVING |
Square orbit |
TAIWAN TBI |
Ball screw |
Higher resolution |

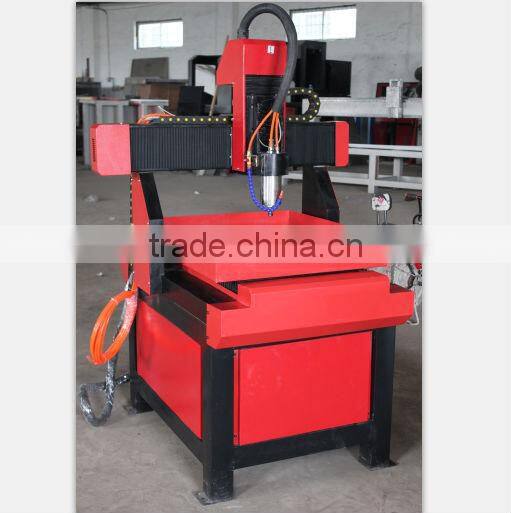

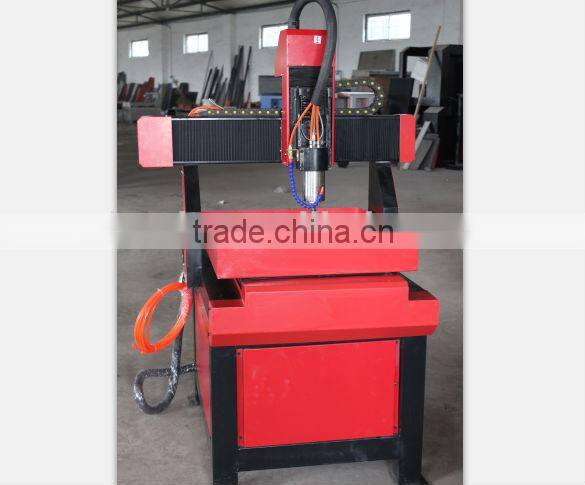

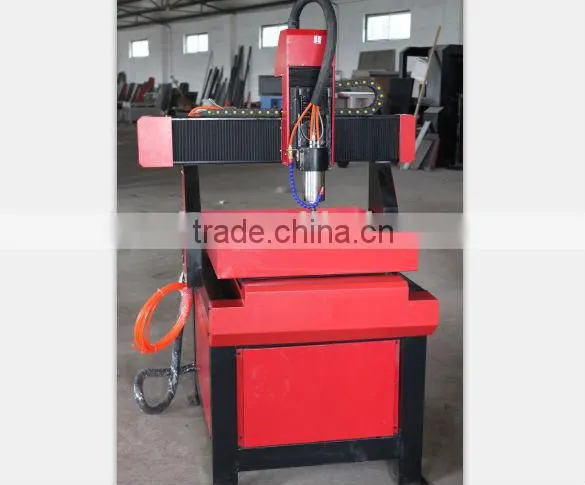

4.Machine details:
5.Samples:
6.FAQ:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading .
7.After-sale Service:
1.Technical support by phone, e-mail or MSN around the clock.
2.Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 monthssince the date of comission
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
We are looking for distributors from all over the world!
