Specifications
High standard 1530 cnc router wood carving machine for sale1. ISO and CE
2. DSP control system
3. One year guarantee
High standard 1530 cnc router wood carving machine for sale
1.Introduction:
♦ CNC Router machine is designed for processing metalloid materials.
♦ It can be used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and chemical, PCB,PP, PE, PVC, MDF, acrylic, aluminium, brass and so on.
♦ It is qualified for mass-producing of funiture with the vacuum holding way and dust collector.
2. Advantages:
♦ Intergal seamless welded steel tube structure. After tempering treatment, reliving of internal pressure, ensure the bathe more rigidty, reliability and durability.
♦ Top-quality world famous brand components, to make the machine hig-precision and high-efficiency. Delta inverter, TBI ball screw, DSP control system and so on,
♦ Humanized and beautiful designing.
Breakpoint specific memory to keep the carving status when power off, processing time forcast and other functions in case of the accidental power outages.
Colorful machines’ appearances and high-quality paint make the machine beautiful.
♦ Easy and safe operation and low maintenance cost. Free training in our factory will be offered. Less time and less money will be cost on the maintance because of the top quality of the machines.
♦ Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
3.Parameter:
| 1 | X,Y,Z Working Area: | 1500*3000*200mm |
| 2 | Table Size: | 1500*3000mm |
| 3 | X,Y,Z Traveling Positioning Accuracy: | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03 mm |
| 5 | Table Surface: | Vacuum and T-slot comnbined(option:T-slot table) |
| 6 | Frame: | Steel Tube Welded Structure |
| 7 | X,Y Structure: | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
| 8 | Z Structure: | Hiwin Rails Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption: | 3.5kw(without spindle) |
| 10 | Max. Rapid Travel Rate: | 33,000mm/min |
| 11 | Max. Working Speed: | 25,000mm/min |
| 12 | Spindle Power: | 3.0/4.5/6/7 KW |
| 13 | Spindle Speed: | 0-18000 RPM |
| 14 | Drive Motors: | Stepper System |
| 15 | Working Voltage: | AC380V, 50/60Hz, 3PH (Option:220V) |
| 16 | Command Language: | G Code |
| 17 | Operating System: | DSP System (Options: Ncstudio/ Mach3 PC Software) |
| 18 | Computer Interface: | USB |
| 19 | Flash Memory: | 128M (U Disk) |
| 20 | Collet: | ER25 |
| 21 | X,Y Resolution: | < 0.03mm |
| 22 | Software Compatibility: | Type3/ Ucancame V9 software (Option: Artcam Software) |
| 23 | Running Environment Temperature: | 0°-45° |
| 24 | Relative Humidity: | 30%-75% |
| 25 | Packing Size: | 3700x2250x1970mm |
| 26 | N.W.: | 1560kg |
| 27 | G.W.: | 1750kg |

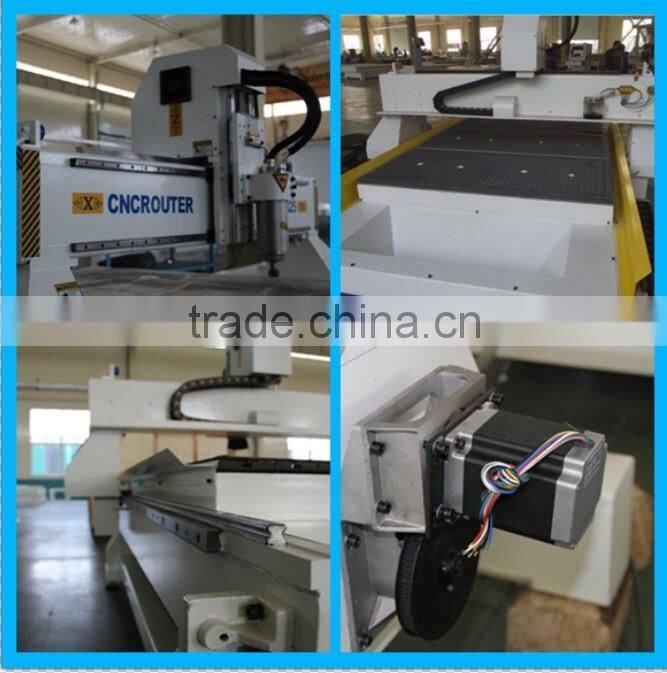

4. Machine details:

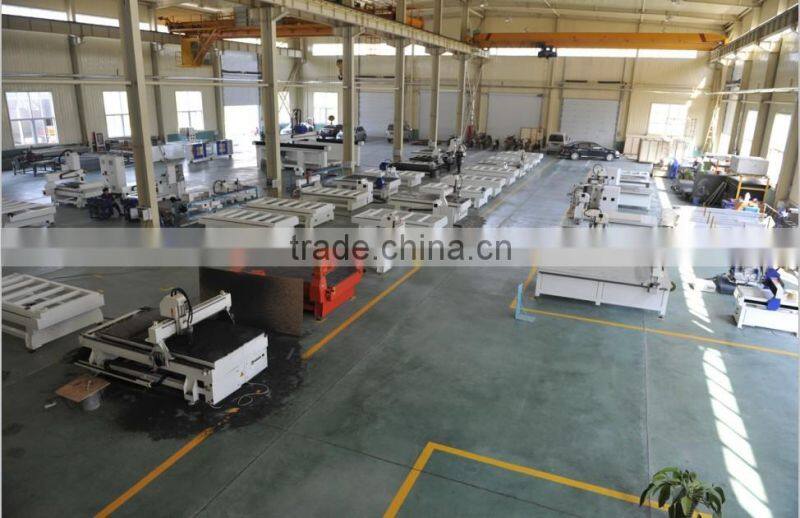

5.Factory& delivery:
6.Samples:
7.FAQ:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
8.After-sale service:
1. Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 months since the date of comission.
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
We are searching agency from all over the world! Welcome to inquire us for more informations!
