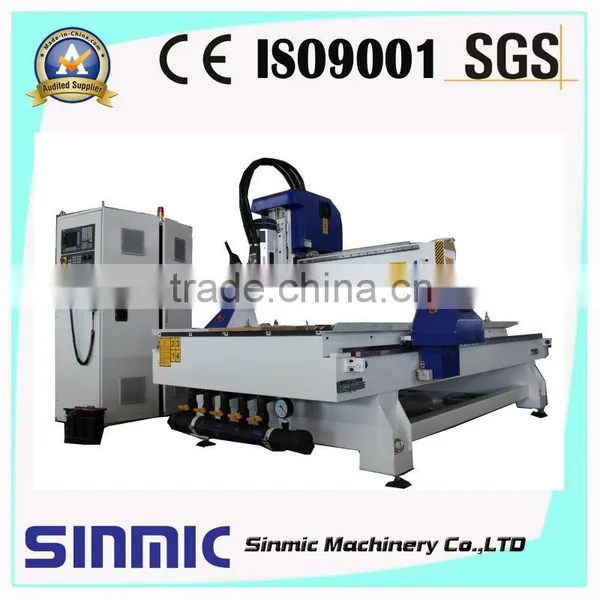

Hot sale 1325 router cnc with CE certificate

Specifications

Hot sale 1325 router cnc with CE
ing area:1300*2500mm
2.HSD 9KW air cooling spindle
3.YAKASWA850W servo motor

Hot sale 1325 router cnc with CE certificate

1.Production description:



1) It is used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and

chemical, PCB, PP, PE, PVC, MDF, acrylic, aluminium, brass and so on.



2) It has a Carrousel Tool Magazine System with 8 forks and can change the tools

automatically.

3) It is qualified for mass-producing of funiture with the vacuum holding way and dust collect.

 2.Advantages:



1) Welded structure, so the machine’s body is strong, reliable and durable. It is with large bearing capacity and long working life.

2) Top-quality components, to make the machine hig-precision and high-efficiency. HSD ATC spindle, Delta inverter, TBI ball screw,

Hiwin linear rails,Yaskawa servo motors and drivers, Syntec control system and so on, which keep the machine in best condition even after working for many years.

3) Easy and safe operation. To make you learn quickly how to operate safely the machine, free training in our factory will be offered.

3.Parameters:



Number	Description	parameter
1	X,Y, Z working area	1300*2500*250mm
2	Table size	1330*3640mm
3	X, Y, Z travel positioning accuracy	±0.03mm
4	X,Y, Z repositioning positioning accury	±0.03mm
5	Table surface	Vacuum and T-slot combined
6	Frame	Steel tube structure
7	Drive system X-Y axis	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Drive system Z axis	Hiwin Rail Linear Bearings and Ball Screw
9	Max power consumption	4.5kw(without spindle)
10	Max velocity	45000mm/min
11	Max working speed	30000mm/min
12	Spindle power	9kw
13	Spindle speed	0-24000rmp
14	working motor	Servo Yaskawa
15	Working voltage	AC380V/50/60Hz,3PH
16	Command language	G code
17	Interface	USB
18	Operating system	Syntec control system
19	Flash memory	256M
20	X-Y resolution	0.03mm
21	Software	Type3UcancameV9 software (Option: Artcam software)
22	Running	Temperature:0 degree-45 degree
23	Paking size	3750*2250*2100mm
24	Net weight	1550KG
25	Gross weight	1790KG

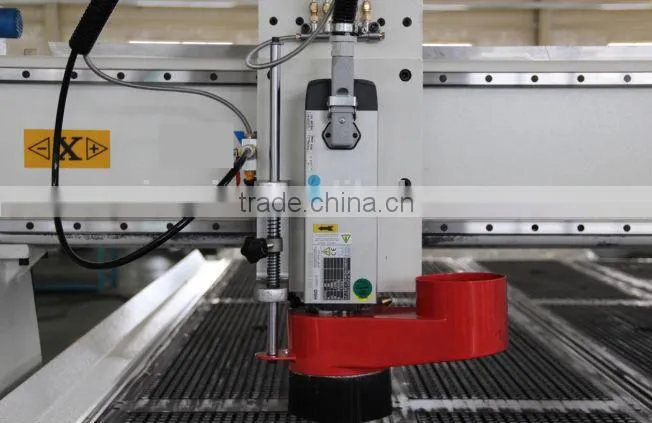

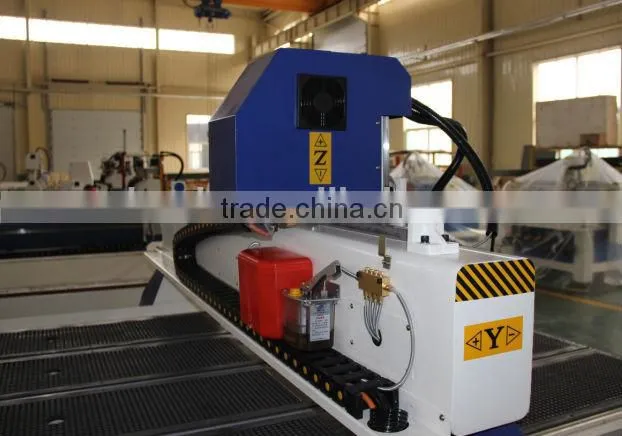

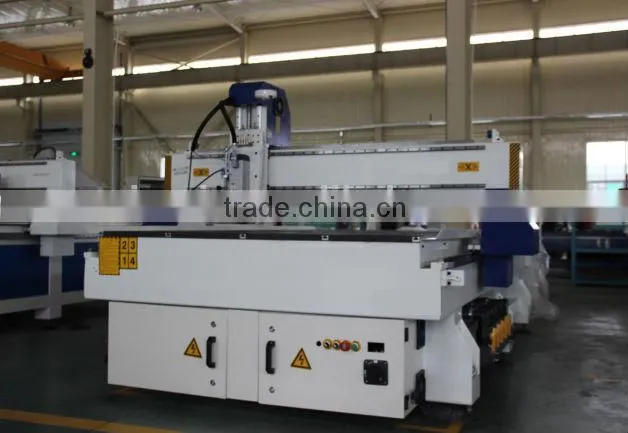

4.Machine details:

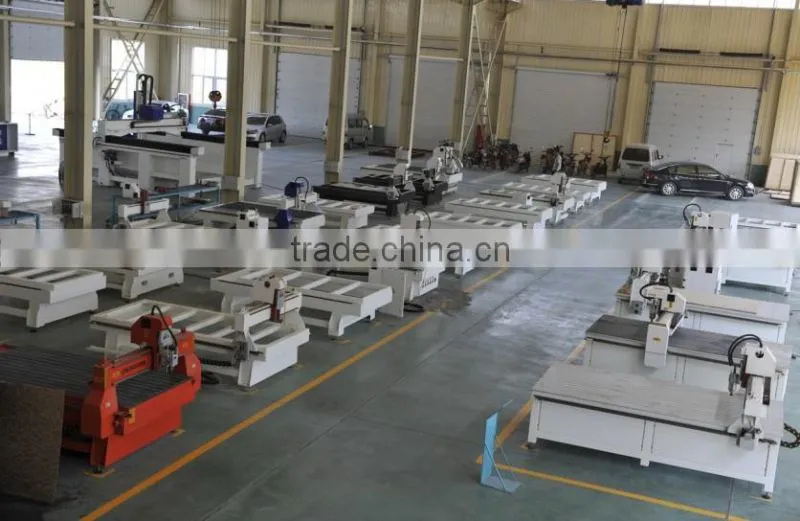

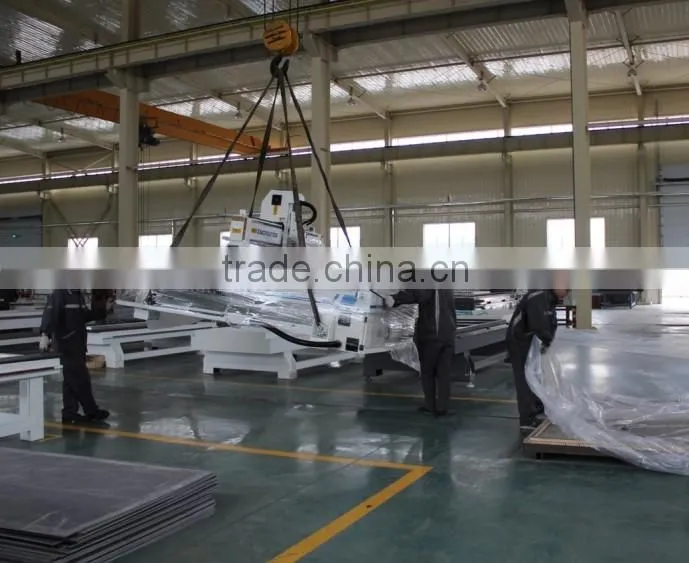

5.Factory&delivery:

6.Samples:



7.FAQ:



1, How to pay to you ?

T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .



2, How long is the delivery time?



For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients

specific requirements, it would be 30 days.

3, Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to

arrange shipment by themselves or their agents.



4,How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.



5, How is the packing?



Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

Save space as much as possible for container loading

8.After-sale service:

1)The machine is guaranteed for 12 months.

2)Technical support by phone, e-mail or MSN around the clock.

3)Offer good-after service for the software training, machine

operating, machine maintenance and all of your questions.

Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
