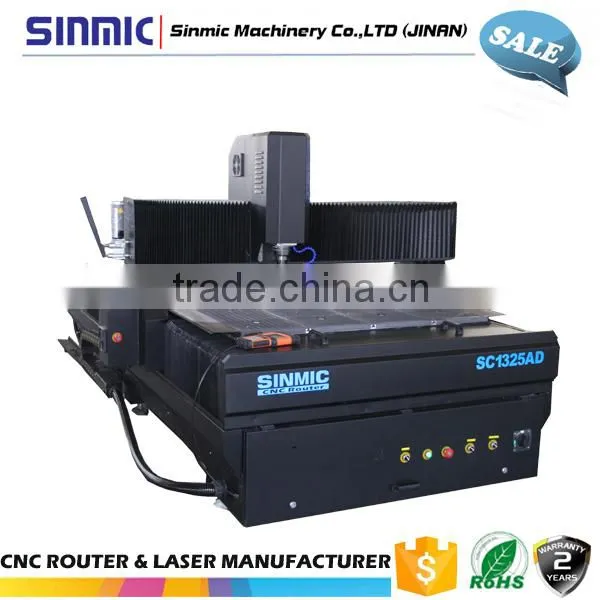

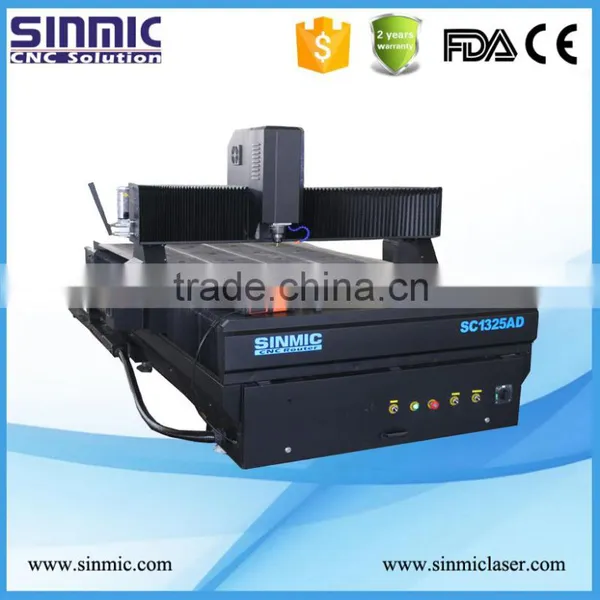

SINMIC CNC Router wood
1.Introduction:
a) Furniture processing industry
b) Decoration
c) Wooden art crafts
d) Wood furniture engraving
2. Advantages:
1) Max motion/working speed can reach 50m/30m/min
2) Two-motor drive system ensures quick, even, stable operation
3) Highly accurate gears allow for engraving characters as small as 1.5mm
4) The subdivision, stepper motor, and the high power main shaft make the
machine more efficient
5) The vacuum cleaning system offers a clean working environment and better quality
6) USB ensures high speed and efficiency
7) The unique calculating system realizes speedy, accurate, curvy operation.
3.Parameter:
| 1 | X,Y,Z Working Area: | 1300*2500*200mm |
| 2 | Table Size: | 1300*2500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy: | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03 mm |
| 5 | Table Surface: | Vacuum and T-slot comnbined(option:T-slot table) |
| 6 | Frame: | Steel Tube Welded Structure |
| 7 | X,Y Structure: | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
| 8 | Z Structure: | Hiwin Rails Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption: | 3.5kw(without spindle) |
| 10 | Max. Rapid Travel Rate: | 33,000mm/min |
| 11 | Max. Working Speed: | 25,000mm/min |
| 12 | Spindle Power: | 3.0/4.5/6/7 KW |
| 13 | Spindle Speed: | 0-18000 RPM |
| 14 | Drive Motors: | Stepper System |
| 15 | Working Voltage: | AC380V, 50/60Hz, 3PH (Option:220V) |
| 16 | Command Language: | G Code |
| 17 | Operating System: | DSP System (Options: Ncstudio/ Mach3 PC Software) |
| 18 | Computer Interface: | USB |
| 19 | Flash Memory: | 128M (U Disk) |
| 20 | Collet: | ER25 |
| 21 | X,Y Resolution: | < 0.03mm |
| 22 | Software Compatibility: | Type3/ Ucancame V9 software (Option: Artcam Software) |
| 23 | Running Environment Temperature: | 0°-45° |
| 24 | Relative Humidity: | 30%-75% |
| 25 | Packing Size: | 3700x2250x1970mm |
| 26 | N.W.: | 1560kg |
| 27 | G.W.: | 1750kg |

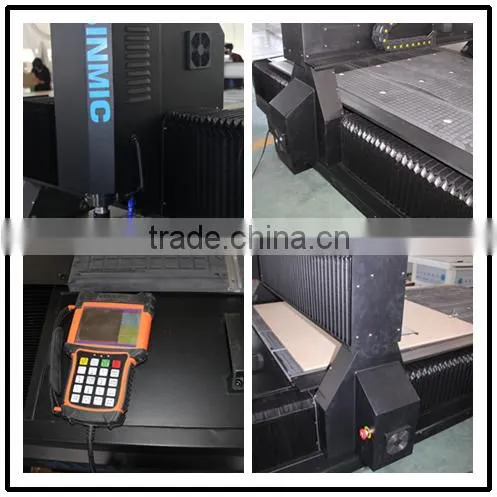

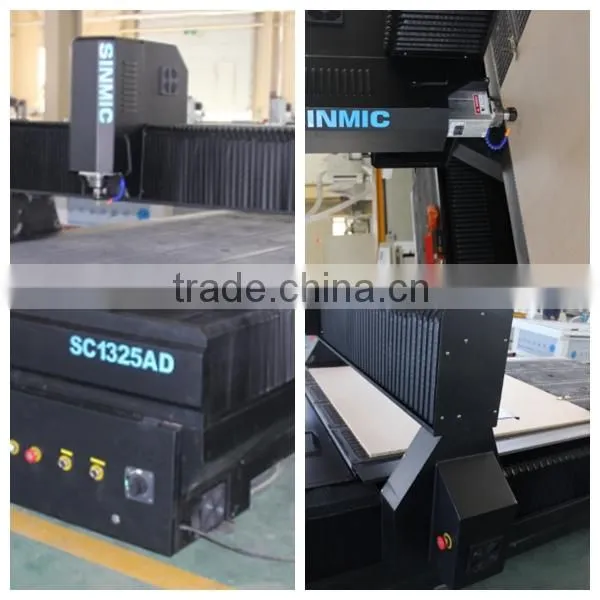

4. Machine details:

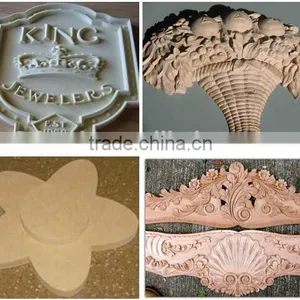

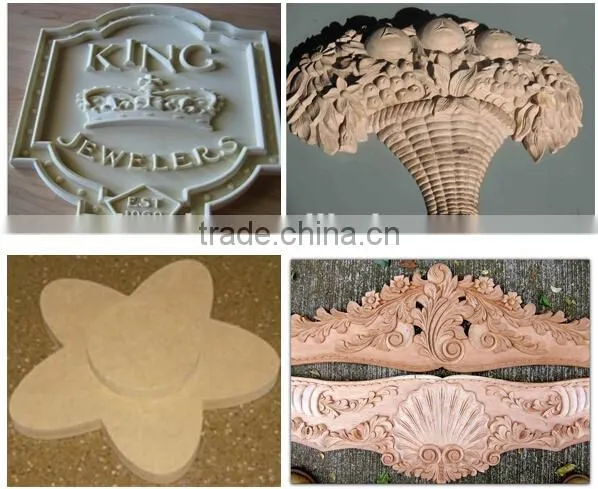

6.Samples:
Now Sinmic design and manufacture CNC routers and laser machine for many industries, enabling our customers to efficiently produce a wide range of products.
Q1.how to get the most suitable machine and best price ?
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
We are searching agency from all over the world! Welcome to inquire us for more informations!
