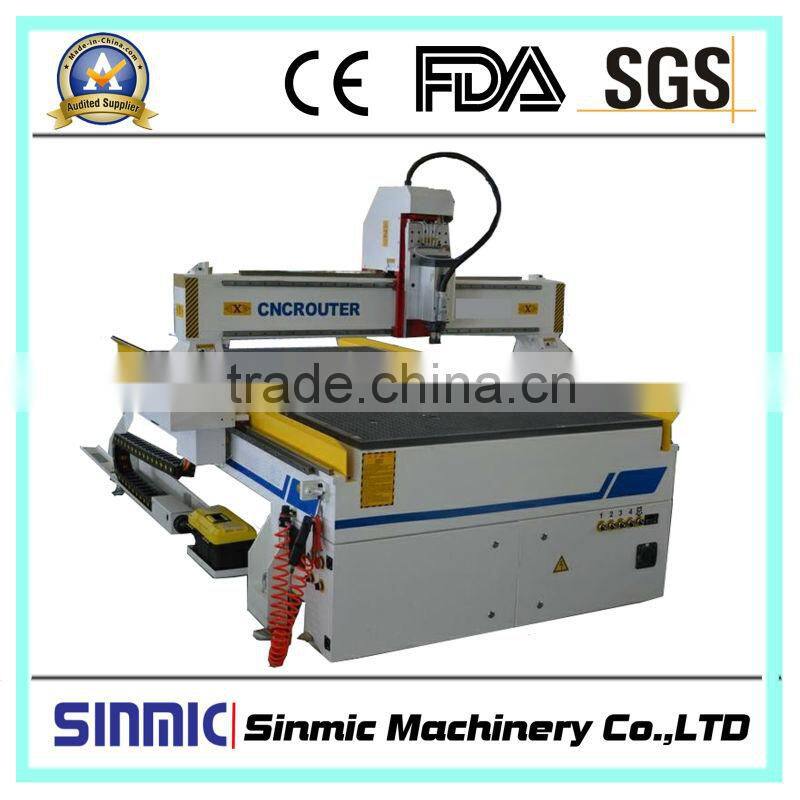

hot sale new design cnc wood carving machine 1325

Specifications

cnc wood carving machine
ing area:1300*2500mm
2.3kw water cooling spindle
3.vacuum table
4.DSP control system



SINMIC hot sale new design cnc  wood carving machine 1325



1.Application:

Woodworking industry:stereo wave board processing,cupboard door,craft wood door,wenqi door,screen,

process window home furniture product milling form sculpture.Mainly for the production of cupboard door,

real wooed,the furniture and so no,also can be used in the production of MDF cutting.



2.Main advantages:

♦ Big steel tube welded structure, reliable and durable, stable and long-life.

♦ Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw,

Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and high efficiency.

♦ Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.

♦ Many optional configuration and OEM service available. According to your

requirement, different configurations will be offered.

3.Parameters:



Model		S/C1325
Working Area		1300×2500×200mm/ 2,000×3,000×200mm
Spindle Motor		3kw/4kw/4.5kw Inverter-driven spindle motor cooled by water (or air for option)
Working Mode		Stepper motor (servo motor for your optional )
Control System		DSP off-line control panel with USB interface(128MB) or PCIMC control system
Drive Mechanism		Gear-wheel on x,y axis
Table Surface		Vacuum table o& T-slot extrusions
Frame		wholly steel structure
Motion Positioning Accuracy		± 0.03/300mm
Repositioning Accuracy		± 0.05mm
Max Motion Speed		50,000mm/min
Max Engraving Speed		30,000mm/min
Rotating Speed of Spindle		2,4000rpm
Z-axis setting		Auto Z origin tool high sensor
Dictate Formate		G code, *.u00, *.mmg, *.plt
Operating Voltage		3phase 380v
Software		Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software
Packing Size		3350×1950×1990mm
Lubrication System		Oil lubrication system
Net weight/ Gross Weight		1227kg/ 1240kg
Noise Level	Racing	LAeep dB(A)72±1
	Engraving	LAeep dB(A)80±2
	Engraving Peak	LAeep dB(C)95
Optional Parts		Dust Collecting System
		Vacuum Table with Air Pump (For XJ-1224,1325)
		Mist Sprayer and flume
		Rotary device with Dia80mm/100mm/200mm
		DSP System w/Portable Control Pad (128MB)

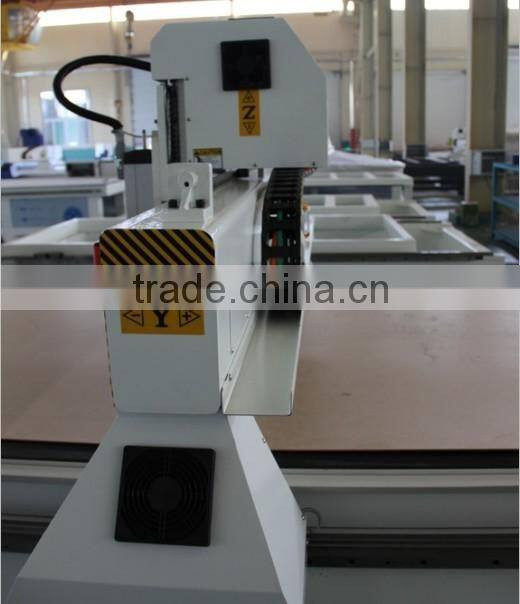

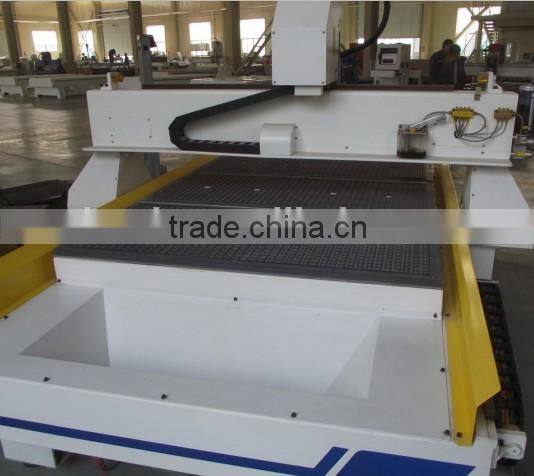

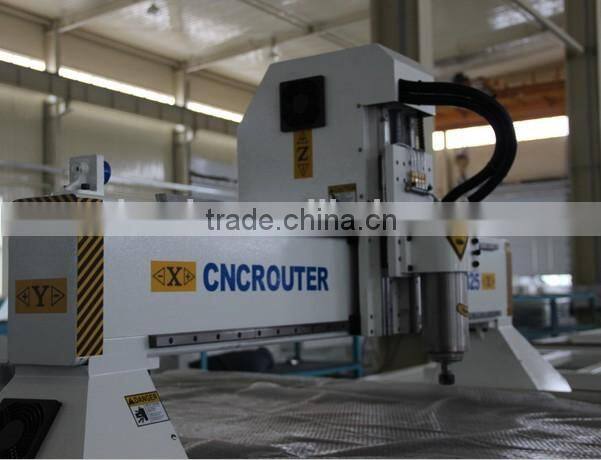

4.Production details:

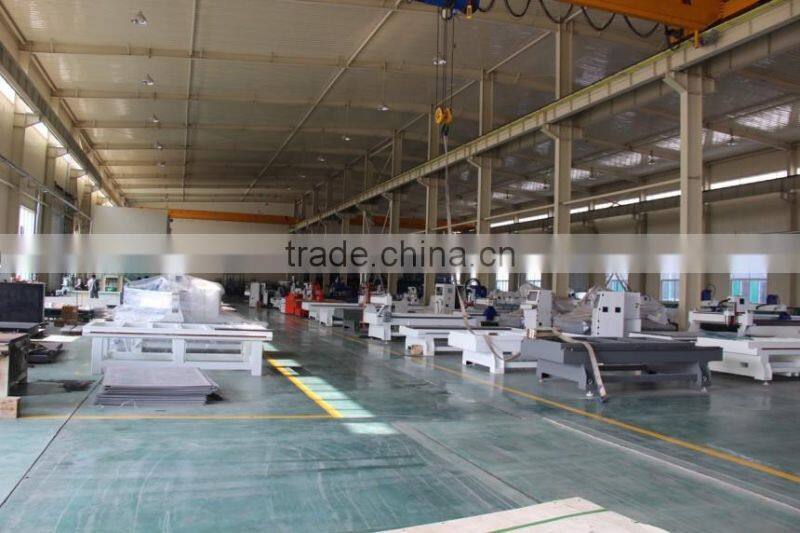

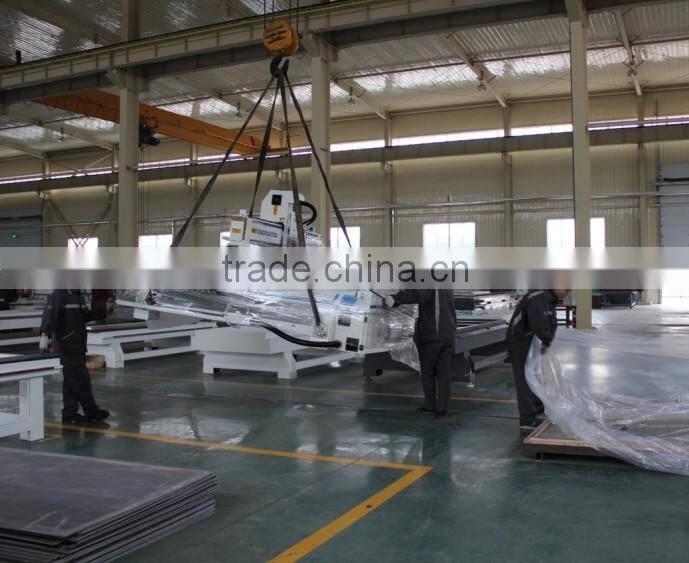

 5.Factory&packing:





6.Samples:

7.FAQ:



1, How to pay to you ?



T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .



2, How long is the delivery time?



For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.



3, Do You Arrange Shipment For The Machines?



Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.



4,How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

5, How is the packing?



Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

Save space as much as possible for container loading .

8.After-sale Service:

1.Technical support by phone, e-mail or MSN around the clock.

2.Friendly English version manual and operation video CD disk.

3.The machine's warranty is 12 months since the date of comission





Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
