Specifications
stone cnc router machineing area:1300*2500mm
2.DSP controlling system
3.USB interface
4.water tank working table

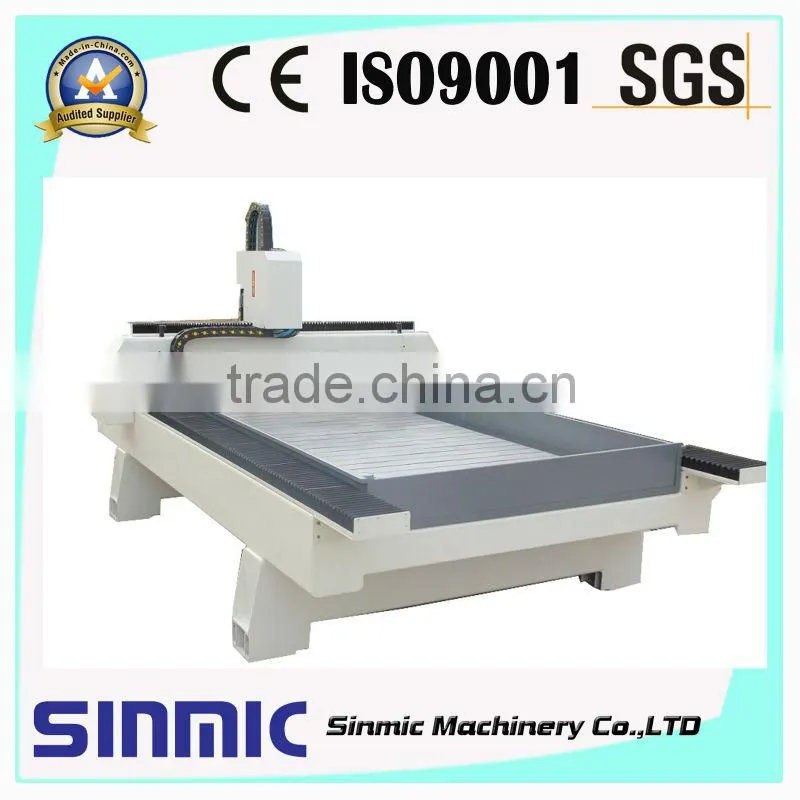

stone cnc router machine
1.Brief Introduction:
- Adopt TaiWan linear guide rail,the bearing of the lead guide rail is face to face,precision is high and durable.
- Germany double nuts automatic ball screw.
- High speed driver,fast and strong.
- Anti-dust oiling structure guaranteed the long-term running of the machine.
- With the fuction of break point and break knife continue engraving,can engrave at any place as you like.
- High compatibility with CAD/CAM software such as Type3/artcarm/castmate/proe/corelerow/artcut.
- High power frenquency changing water cooled spindle,can process hard materials efficiently.
2.Advantages:
1) NC STUDIO control system, powerful function.
2) Leading automatic tool change system design, greatly improving efficiency.
3) It’s a collection of deep relief, drilling, milling, milling bottom, hollow.
4) The whole body is casted, can guarantee accuracy.
5) Unique cooling system, greatly improving the spindle life.
6) All the components are from well-known international brands and undergo a rigorous assessment.
3.Parameters:
Working voltage |
3AC380+-20%; 50/60hz |
|
Working travel |
X axis |
1300mm |
Y axis |
1800mm |
|
Z axis |
300mm |
|
Processing accuracy |
±0.05 |
|
Reposition accuracy |
±0.03 |
|
Structure |
Casted steel body |
|
Moving speed |
Idle speed>30000mm/min |
|
Processing speed decide processing materials etc | ||
Spindle |
Brand |
BT30 ATC spindle |
Power |
5.5kw |
|
Rotating speed |
0-12000rpm |
|
Drive system |
YASKAWA servo |
|
Operating system |
NC STUDIO |
|
Machine weight |
4.5T |
|
Design standard |
CE |
|

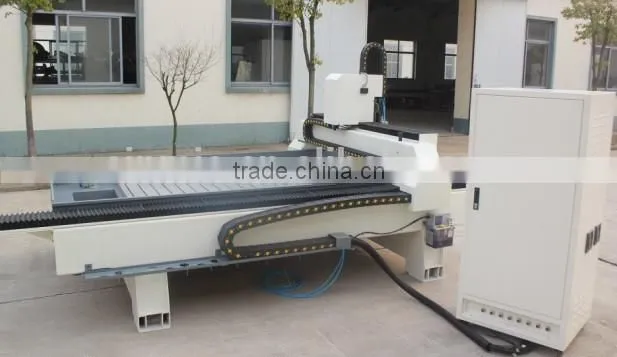

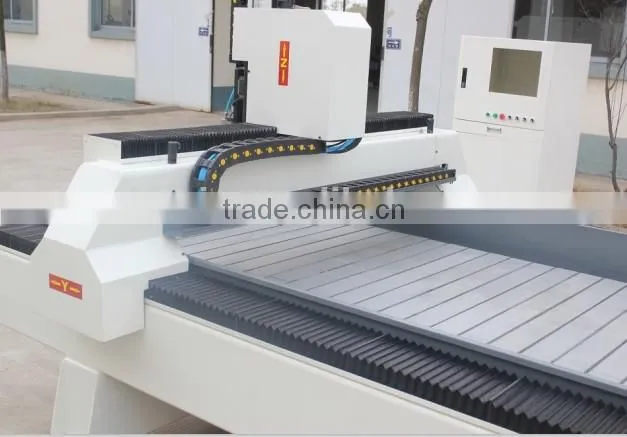

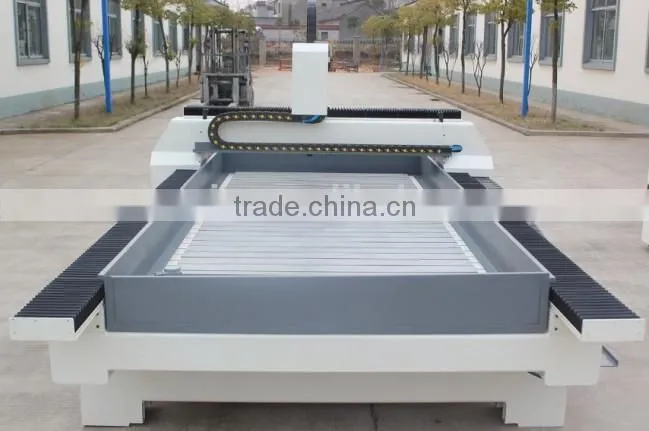

4.Machine details:
5.Factory & delivery:

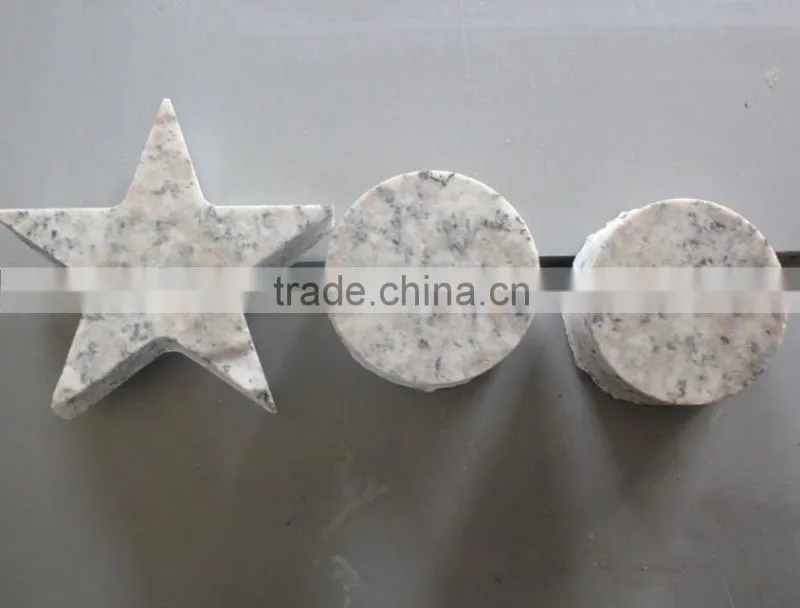

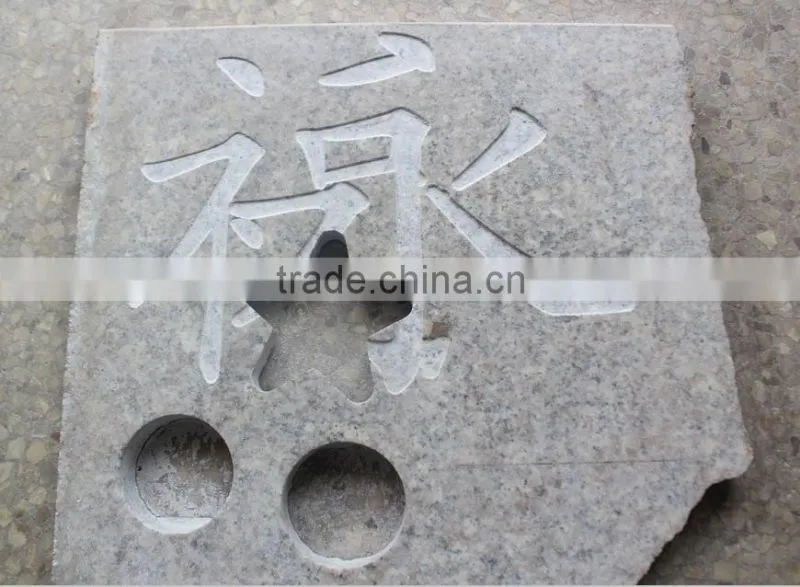

6.Samples:
7.FAQ:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading .
8.After sale service:
1.Technical support by phone, e-mail or MSN around the clock.
2.Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 months since the date of comission
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
We are looking for distributors from all over the world!
