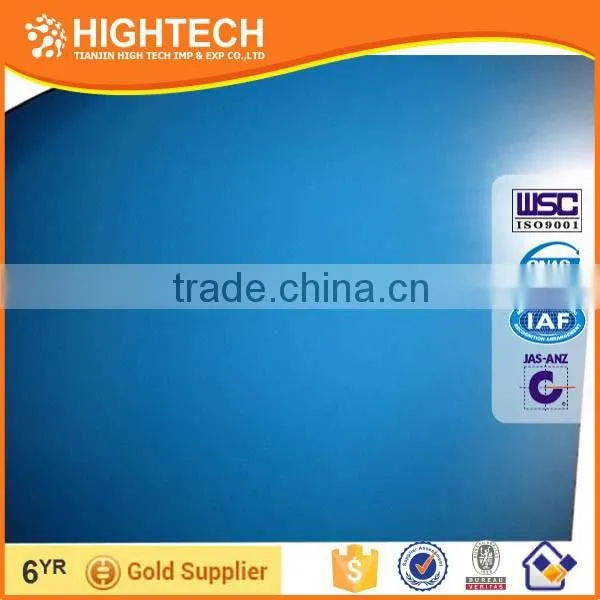

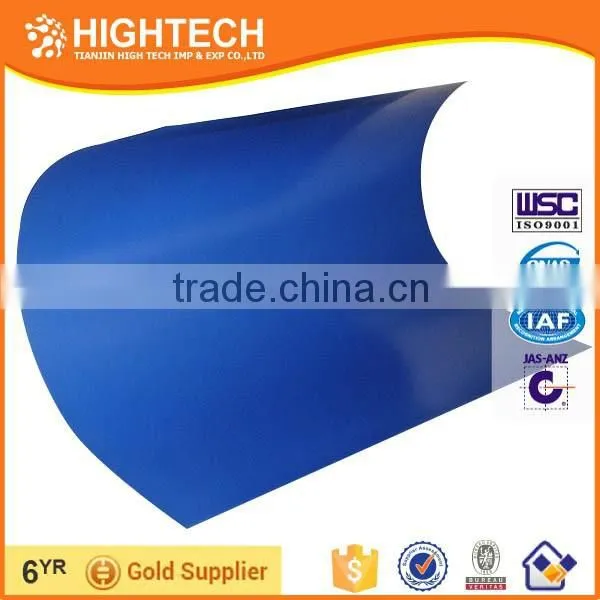

Thermal CTP Plate Used On CRON CTP Machine
1. Products Features:
Thermal CTP Plate is a high-quality printing plate specialized in thermal CTP platesetter, self-developed by our company. It is directly scanned by 830nm laser controlled by computer and put on press for printing after developing. The formulation designed by our own intellectual property and the unique manufacturing process make TIGER Thermal CTP Plate features as following:
a. Unique formation design
The sensitive layer of TIGER Thermal CTP Plate is a unique formulation structure and it makes the dot edge which is formed with laser scanning more sharp and suitable for high-end commercial color printing.
b. High-quality substrate
TIGER Thermal CTP Plate takes use of the fine aluminum plate with complex grain construction and dense oxidized layer as its substrate which was processed with a special method. It not only ensures the adhesion of the thermal coating to the aluminum plate, but also makes the plate possessing excellent runlength and exact dot reproduction to guarantee high quality printing.
c. Convenient bright room operation
TIGER Thermal CTP Plate is imaged and processed under room-light condition without additional dark room, which can be easier and more comfortable to operators.
d. Outstanding platesetter compatibility
TIGER Thermal CTP Plate can be compatible with various thermal CTP platesetters available in current market.
2. Our Certifications:
3. Characteristics:
Thermal CTP Plate Related Chemicals
| Model | Type | Thickness of aluminum base | Application | Specification | Recommended platesetter |
| TP-II | Positive | 0.30mm | High-quality commercial color printing | Sensitivity: 120-140mj/cm²; Dot reproduction:1-99% (200lpi); Safe operation in fluorescent light: 8 hours; Run length before baking: more than 100,000; After baking: 200,000+ |
Infrared laser thermal platesetter with 830nm |
| 0.15mm | High-quality commercial quick printing | High-sensitivity: 120-140mj/cm²; Dot reproduction:1-99% (200lpi); Safe operation in fluorescent light: 8 hours; Run length before baking: 50,000+ |
Infrared laser thermal platesetter with 830nm | ||
| TP-26 | Positive | 0.30mm | High-quality commercial color printing | Sensitivity: 130-150mj/cm²; Dot reproduction:1-99% (200lpi); Safe operation in fluorescent light: 8 hours; Run length before baking: more than 100,000; After baking: 200,000+ |
Infrared laser thermal platesetter with 830nm |
| 0.15mm | High-quality commercial quick printing | High-sensitivity: 130-150mj/cm²; Dot reproduction:1-99% (200lpi); Safe operation in fluorescent light: 8 hours; Run length before baking: 50,000+ |
Infrared laser thermal platesetter with 830nm | ||
5. Technical Specification:
Thermal CTP Plate Related Chemicals
| Name of Product | Model | Application | Recommended Condition | Replenishment |
| Positive thermal plate developer | TPD-III | Developing TIGER positive thermal CTP plate and the imported positive thermal plates |
Del Temp: 22-24°C; Del Time: 20-40s |
Dynamic:100-120ml/m²; Static: 80-100ml/hr |
6. Production Transaction Process:
7. Storage and Package :
Thermal CTP Plate Storage and Unpacking
a. Light and heat can cause the thermal CTP plate to chemical change easily, the recommended condition Temp: 15-26°C, RH≤65%.
b. Unpacking the outer package should be in yellow light or room light; the recommended plate-making room light should be yellow.
c. Carrying plate gently; avoiding striking, folding and falling.
d. Stacking the plate at the height of less than 1.2m.
e. 12 months under above recommended storage condition
8. Our Services:
9. Marketing Distribution:
10. Our Customers And Our Team:
CTcP machine Doie CTP machine Amsky CTP machine Processor
Thermal CTP Plate Used On CRON CTP Machine
