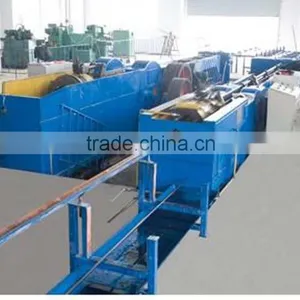

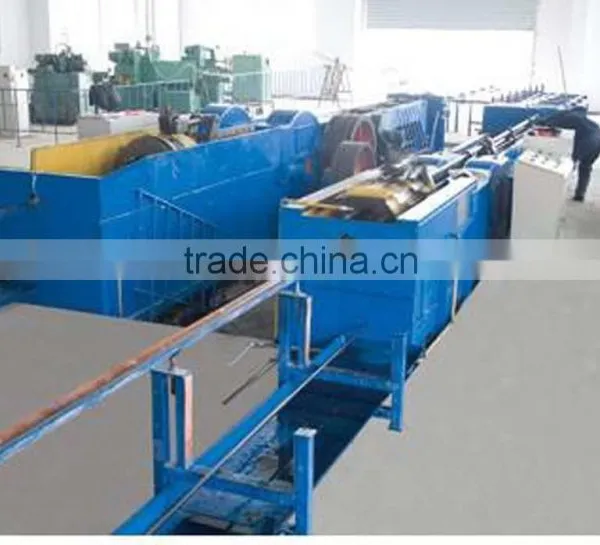

I.Cold Pilger mill
cold rolling mill is applied to roll carbon steel, alloy steel, stainless steel, non-ferrous metal, rare metal and precision alloy steel in cold condition. compare with LG series cold rolling mill, rolling from LD series, the finished pipe can get higher precision
II. Main parameter of LD40
|
No. |
Name |
Number |
Unit |
1 |
Shell OD |
17-42 |
mm |
2 |
Shell WT |
2.5 |
mm |
3 |
Shell length |
5 |
m |
4 |
Finished Tube OD |
15-40 |
mm |
5 |
Finished Tube WT |
0.1-2 |
mm |
6 |
Finished Tube Length |
15 |
m |
7 |
Journey length of rolling mill bus |
475 |
mm |
8 |
Journey times of rolling mill bus |
65-110 |
time/per minute |
9 |
Feeding bar length |
3-8 |
mm |
10 |
Connecting bar length |
1500 |
mm |
11 |
Deviation between rolling and brace center line |
234 |
mm |
12 |
Power of main motor |
37 |
kw |

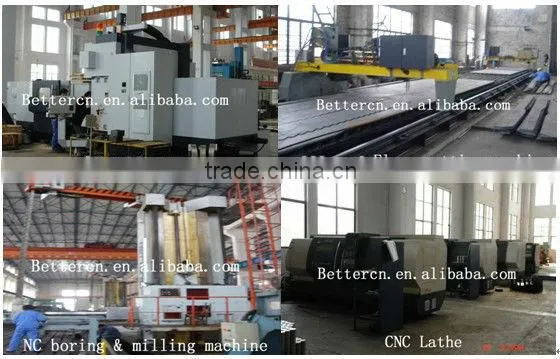

III. Machining equipments

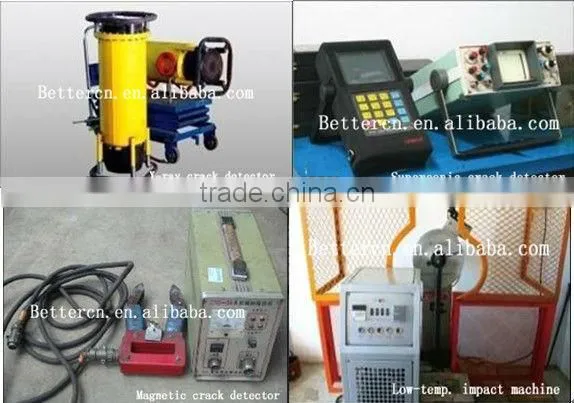

IV. Testing tools
V. Packing and shipping
Any more information required, please not hesitate to contact us!
