Product Details
Condition: | New | Type: | Conventional Plate Processor | Automatic Grade: | Other, Automatic, Automatic |
Place of Origin: | Shanghai, China | Brand Name: | Hu-Q | Model Number: | TP-90 |
Voltage: | 220V | Power(W): | 4KW | Dimension(L*W*H): | 149*198*129cm |
Weight: | 500 kg | Certification: | ISO9001:2008; ISO13485:2003; ISO14001; CE | Warranty: | 12 months, 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Similar Kodak CTP plate processor with CE mark
Model | PT-90/90B | PT-130/130B |
Processor plate | CTP plate | |
Plate width (max) | 860mm | 1260mm |
Plate width (min) | 180mm | |
Plate length (min) | 400mm | |
Thickness | 0.15-0.4mm | |
Enterance/exit height | 845mm/865mm | |
Dev time | 10s ~ 60s | |
Processing speed | 38 ~ 228cm/min | |
Dev. temp | 20°C~ 40°C | |
Dry temp. | 40°C~ 60°C | |
Dev repl. | Area repl. | 10~200ml/inch |
| Time repl. | 10~200ml/inch |
Brush speed | 60~120r/min | |
Dev tank volume | 35L | 40L |
Dev cool | special cooling system | |
Power | Single phase 220V 50HZ 4KW(max) |
Processing feature:

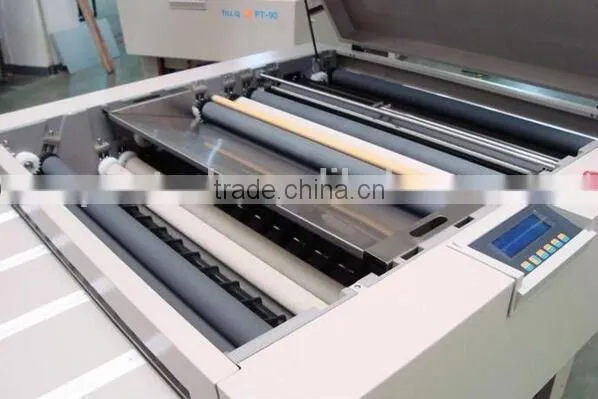

Continuous speed-adjust immersed roller. Developing, washing, gumming and gathering can be done by one time.
Easy operation:
Large intuitive display and six key operation for displaying processor funtions and status. Friendly operation system is easy to learn.
Advanced control system:
Independent eletric and software control system, microprocessor-controlled operation and the setting of 3 sets processing programs is convenient for setting technical data and fitting different plates. Develop temperature control system is comprised of heating tube, cooling system, temperature snesor and circulation pump, ensured the develop temperature is within ±0.3°C. Continuous speed-adjust system, ensure a precise and uniformityarian speed.
Solution management:
Configurable developer is replenished according to the actual size of plate. Also it can maintain the activity of developer for long time, farthest ensuring the best processing quality.
Excellent processing quality:
Big capacities of developing tank, continuous speed-adjust immersed roller, acid and alkali resistance roller can ensure the stable and excellent processing quality. Futhermore, machine will be equipped with different rigidity and material brush according to the plate customer chooses for esuring the clear dot.
Energy-saving design:
Energy-saving sleep mode, with periodic roller movement; double-way and double-loop high efficient drying system; automatic gum callback system.
Optional upgrade function:
Conductive transducer integrated with sensitive probe, value visible through display. Change relevant communication interface, attach with CTP, stacker can get an integrated system of automatic plate making, processing and stacking.
Product safety:
Equipped with emergency stop switch, drying over-heat protection syste, lack and over-low solution alarming system, enclosed protection system of mechanical transmission. And safe marks are sticked on all important pants.

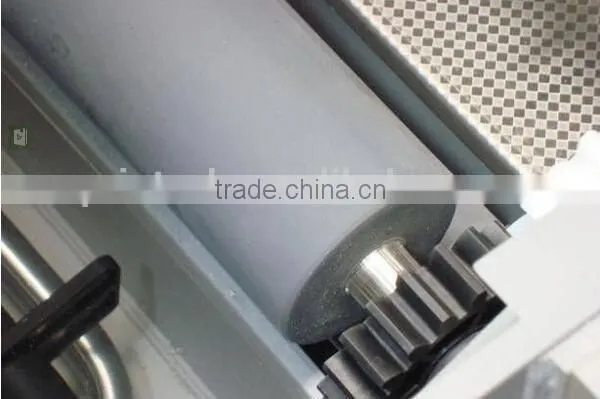

Convenient maintenance: Inside parts like roller, brush, guide, anti-oxygen cover can be easily disassembled bled for cleaning and maintenance.
Similar Kodak CTP plate processor with CE mark
