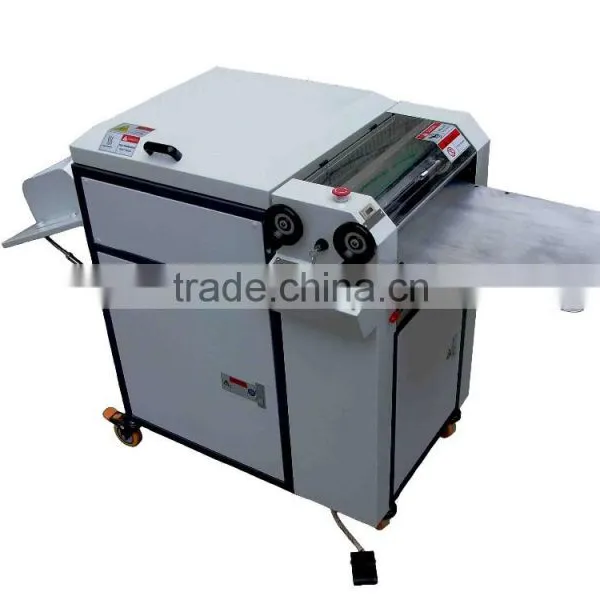

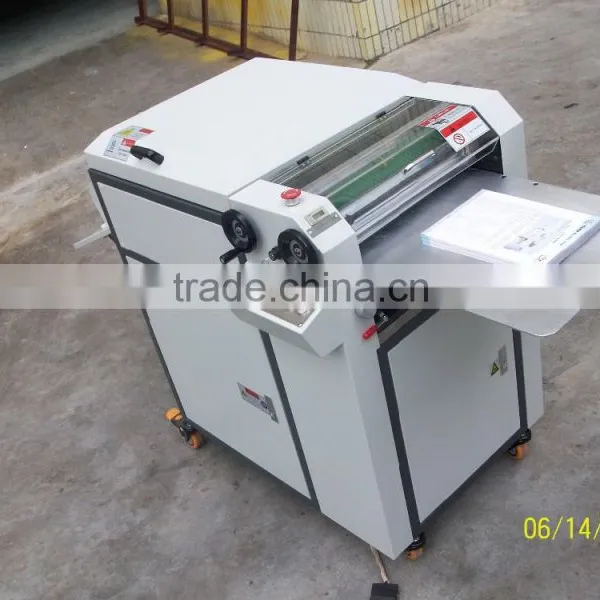

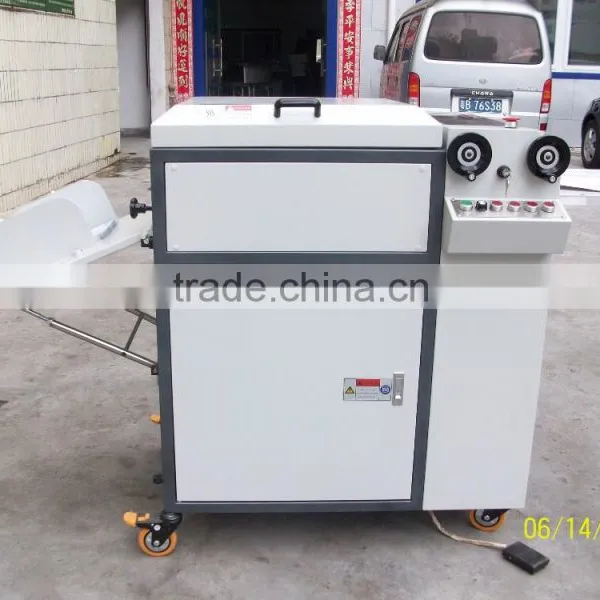

SGUV-480A automatic digital uv coating machine
CTcP machine Doie CTP machine Amsky CTP machine Processor
Features
·Before configuring the suction paper feeding machine and automatic closing machine.
·Equipped with UV curing or IR drying device.
·Roll coating variable speed control.
·Single-handle roller adjustments.
·Air-suction sheets hold-down throughout conveyor paper path.
·Ultra compact footprint.
·Easy access UV lamp replacement.
·High velocity blower fan for cooling and exhaust.
·Safety locker on all machine doors and covers.
·Full coverage protection against UV radiation aroud the UV lamp chamber.
·Lower temperature control on the UV lamp chamber surface.
·Interlocks design prevent against misoperation.
·Single phase power supply 1Φ-220V-50/60Hz.
Technical Parameters
| Model | SGUV-480A |
| Max. Sheet Size | 450x650mm |
| Min. Sheet Size | 150x210mm |
| Sheet Weight | 150~500g/m2 |
| Speed | 0~25m/min |
| Power | 10.7Kw |
| UV Lamp | 1PCSx4.0Kw |
| IR Lamp | 3PCSx0.9Kw |
| Weight | 1000kg |
| Dimension | 3000x850x1100mm |
| Application Rubber Roller Dia. | 90mm |
| Metering Roller Dia. | 60mm |
| Impression Roller Dia. | 90mm |
Thermal CTP Plate Blue Face CTcP Plate PS Plate Flexo Plate
SGUV-480A automatic digital uv coating machine
