4.15*58m Rotary Kiln in Cement Industry With High Efficiency

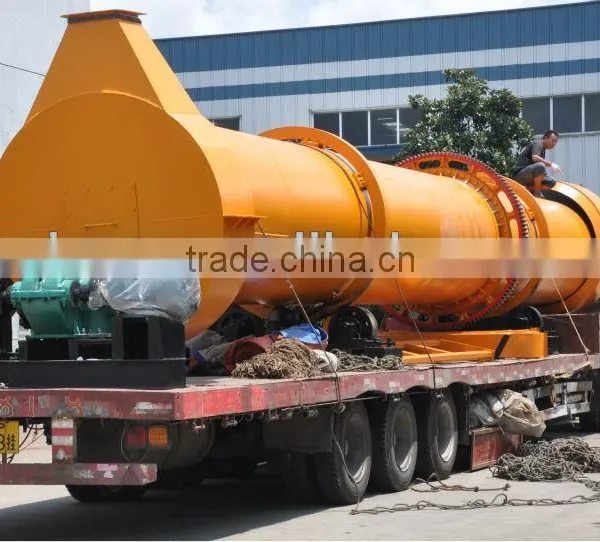

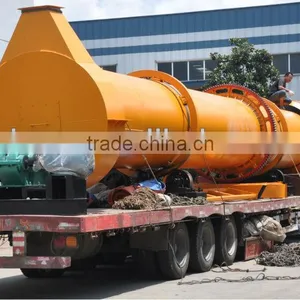

4.15*58m Rotary Kiln in Cement Industry With High Efficiency thumbnail-1
4.15*58m Rotary Kiln in Cement Industry With High Efficiency photo-1
US$ 10,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
20 sets per week
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Sievo Heavy Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Production Capacity 20 sets per week
Place of Origin Shanghai, China
Brand Name sievo
Model Number 2.1/1.8x36
Voltage 380v
Power(W) 60-2000kv
Weight 188.3-1580t
Certification BV/ISO9001:2008
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Cement rotary kiln:
use top quality material to make the rotary kiln.
rotary kiln/ Cement rotary kiln / lime rotary kiln



Cement Rotary Kiln



The rotary kiln consists of a tube made from steel plate, and lined with firebrick. The tube slopes slightly (1–4°) and slowly rotates on its axis at between 30 and 250 revolutions per hour.
Rotary kiln is referred to rotate calcination kiln, belonging to construction material equipment. According to different materials,Rotary kiln can be pied into cement kiln, metallurgy chemical kiln and lime kiln. Cement kiln is used for making of cement clinker and there are dry and wet methods to make cement. Cement kiln is used for making cement clinker and there are dry and wet methods to make cement. Metallurgy chemical kiln is used in metallurgy industry and ironworks for lean iron ore, chromium ore and ferronickel ore calcination, which is used for calcining of high aluminum vandal ochrea in refractory material industry; for calcining of calotte and aluminum hydroxide in aluminum manufacturer; for calcining of chrome sand ore and chrome powder ore in chemical plant. Lime kiln are used for calcine dolomite and active lime which is used in steel plant and ferroalloy factory.
 The structure of Cement Rotary Kiln is simple, operate conveniently and reliably in life, less wearing parts, high rate of operation;it is the equipment to calcine high-grade cement in cement plant. Meanwhile, it is also widely used in metallurgical, chemical, construction and other industries. The rotary kiln produced by my company is with strong structure, operation smooth, high-quality products etc.
As a professional Lime Kiln/Rotary Kiln/Clinker Kiln/Cement Kiln manufacturer in China, hongxing can also provide full specifications of crushing machines, mineral processing equipment, cement production lines, fertilizer equipment, etc..These products are popular in metallurgy, mine, chemistry, coal and building materials industries due to their excellent performance, high productivity and convenient maintenance.
In order to meet customers' requirements, we also provide impact crusher, cone crusher, magnetic separator, and more. Welcome customers all over the globe to contact us! We sincerely welcome you to visit our company!

Technical data
Specification Capacity
(t/d)		 Incline of
body (%) 		 Speed
(r/min)		 Main Motor
(KW)		 Main Reducer Weight (t) Remarks
Φ2.5×40 180 3.5 0.98 ~ 2.94 45 Zs145 ~ 1 ~ Ⅰ 142 Kiln with shaft cyclone preheater
Φ2.5×60 168 3.5 0.516 ~ 1.549 75 ZS165 ~ 7 ~ Ⅱ 222 Alumyte-alumina forge kiln
Φ3×48 700 3.5 0.726 ~ 3.63 110 ZSY450 ~ 35 ~ v 244 Kiln with 5-stage cyclone precalciner
Φ3×60 300  3.5 0.492 ~ 1.476 75 ZL165 ~ 7 ~ Ⅰ 190 Alumyte-alumina forge kiln
Φ3×100.94 450 4 0.3 ~ 1.503 90 NZS995 ~ 90 ~vi ~ L 526 Multiple-drum cooling
Φ3.2×46 1000 3.5 0.36 ~ 3.57 160 NZS995 ~ 40vi BR 257 Kiln with preheater precalcine
Φ3.2×52 1200 3.5 0.343 ~ 2.34 125 ZSY1110 ~ 71BLvi 275 Kiln with preheater
Φ3.3×50 1300 3.5 0.676 ~ 3.38 160 NZS1110 ~ 40 vi 266 Kiln with plateau suspension preheater
Φ3.3×52 1300 3.5 0.266 ~ 2.66 125 NZS995 ~ 40vi BR 283 Kiln with preheater precalcine
Φ3.5×54 1500 3.5 0.55 ~ 3.4 220 ZSY500 ~ 40 ~ v 363 Kiln with preheater precalcine
Φ3.6×70 1800 3.5 0.25 ~ 1.25 125 ZS177 ~ 5 ~ii 419 Generating kiln for using ofterheat
Φ4×60 2500 3.5 0.396 ~ 3.96 315 ZSY630 ~ 35.5 ~ i 510 Kiln with preheater precalcine
Φ4.2×60 3000 4 0.4 ~ 3.98 375 ZSY710 ~ 40 ~ i 633 Kiln with preheater precalcine
Φ4.3×60 3500 3.5 0.396 ~ 3.96 375 ZSY710 ~ 40 583 Kiln with preheater precalcine
Φ4.5×66 4000 3.5 0.41 ~ 4.1 560 JH800C ~ SW306 710.4 Kiln with preheater precalcine
Φ4.8×74 5000 4 0.396 ~ 3.96 630 Jh710 ~ 40 899 Kiln with preheater precalcine
Φ5.0×74 6000 4 0.35 ~ 4 710 JH800C ~ 28 944 Kiln with preheater precalcine
Φ5.6×87 8000 4 Max4.23 800 JH900C ~ SW305 ~ 25 1265 Kiln with preheater precalcine
Φ6.0×95 10000 4 Max5 950×2 JH900C ~ SW305 ~ 28 1659 Kiln with preheater precalcine







4.15*58m Rotary Kiln in Cement Industry with High Efficiency4.15*58m Rotary Kiln in Cement Industry with High Efficiency
