Specifications
Rutile Rotary Kiln1.high capacity
2.low consumption
3.energy saving,safety
4.reliable in operation

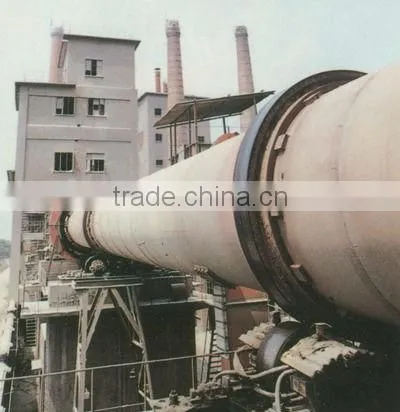

Rutile Rotary Kiln
Features of rutile:
Rutile is a common accessory mineral in high-temperature and high-pressure metamorphic rocks and in igneous rocks.
Rutile is the preferred polymorph of TiO2 in such environments because it has the lowest molecular volume of the three polymorphs; it is thus the primary titanium bearing phase in most high pressure metamorphic rocks, chiefly eclogites. Brookite and anatase are typical polymorphs of rutile formed by retrogression of metamorphic rutile.
Within the igneous environment, rutile is a common accessory mineral in plutonic igneous rocks, though it is also found occasionally in extrusive igneous rocks, particularly those that have deep mantle sources such as kimberlites and lamproites. Anatase and brookite are found in the igneous environment particularly as products of autogenic alteration during the cooling of plutonic rocks; anatase is also found formed within placer deposits sourced from primary rutile.
Features of Rutile rotary kiln:
The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, material gradually moves down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln, sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or "firing pipe") which acts like a large bunsen burner. The fuel for this may be gas, oil or pulverized coal.
The kiln connects with a material exit hood at the lower end and to ducts for waste gases. This requires gas-tight seals at either end of the kiln. The exhaust gas may go to waste, or may enter a preheater which further exchanges heat with the entering feed. The gases must be drawn through the kiln, and the preheater if fitted, by a fan situated at the exhaust end. In preheater installations which may have a high pressure-drop, a lot of fan power may be needed, and the fan is often then largest drive in the kiln system. Exhaust gases contain dust and there may be undesirable constituents such as sulfur dioxide or hydrogen chloride. Equipment is installed to scrub these out before the exhaust gases pass to atmosphere.
Characteristics of rutile rotary kiln:
1.Rotary kiln consisted of support device, catch wheel, gears, the cylinder, sealing equipment and kiln head hood.
2.Rotary kiln belongs to building material equipment. Rotary kiln according to different processing materials can be divided into cement kiln, metallurgy chemical kiln and lime kiln.
As a professional rotary kiln manufacturer in China, we adopt advanced contact type graphite block sealing device and hydraulic catch wheel device to ensure the stable running of kiln.
3.Our rotary kiln has the features of reliable performance, easy operation, low energy consumption, and high productivity, etc.
Technical parameters of rutile rotary kiln:
| Specification | Capacity (t/d) |
Incline of body (%) |
Speed (r/min) |
Main Motor (KW) |
Main Reducer | Weight (t) |
Remarks |
| Φ2.5×40 | 180 | 3.5 | 0.98 ~ 2.94 | 45 | Zs145 ~ 1 ~ Ⅰ | 142 | Kiln with shaft cyclone preheater |
| Φ2.5×60 | 168 | 3.5 | 0.516 ~ 1.549 | 75 | ZS165 ~ 7 ~ Ⅱ | 222 | Alumyte-alumina forge kiln |
| Φ3×48 | 700 | 3.5 | 0.726 ~ 3.63 | 110 | ZSY450 ~ 35 ~ V | 244 | Kiln with 5-stage cyclone precalciner |
| Φ3×60 | 300 | 3.5 | 0.492 ~ 1.476 | 75 | ZL165 ~ 7 ~ Ⅰ | 190 | Alumyte-alumina forge kiln |
| Φ3×100.94 | 450 | 4 | 0.3 ~ 1.503 | 90 | NZS995 ~ 90 ~ VI~ L | 526 | Multiple-drum cooling |
| Φ3.2×46 | 1000 | 3.5 | 0.36 ~ 3.57 | 160 | NZS995 ~ 40 VI BR | 257 | Kiln with preheater precalcine |
| Φ3.2×52 | 1200 | 3.5 | 0.343 ~ 2.34 | 125 | ZSY1110 ~ 71BL VI | 275 | Kiln with preheater |
| Φ3.3×50 | 1300 | 3.5 | 0.676 ~ 3.38 | 160 | NZS1110 ~ 40 VI | 266 | Kiln with plateau suspension preheater |
| Φ3.3×52 | 1300 | 3.5 | 0.266 ~ 2.66 | 125 | NZS995 ~ 40 VI BR | 283 | Kiln with preheater precalcine |
| Φ3.5×54 | 1500 | 3.5 | 0.55 ~ 3.4 | 220 | ZSY500 ~ 40 ~ V | 363 | Kiln with preheater precalcine |
| Φ3.6×70 | 1800 | 3.5 | 0.25 ~ 1.25 | 125 | ZS177 ~ 5 ~ Ⅱ | 419 | Generating kiln for using ofterheat |
| Φ4×60 | 2500 | 3.5 | 0.396 ~ 3.96 | 315 | ZSY630 ~ 35.5 ~ Ⅰ | 510 | Kiln with preheater precalcine |
| Φ4.2×60 | 3000 | 4 | 0.4 ~ 3.98 | 375 | ZSY710 ~ 40 ~ Ⅰ | 633 | Kiln with preheater precalcine |
| Φ4.3×60 | 3500 | 3.5 | 0.396 ~ 3.96 | 375 | ZSY710 ~ 40 | 583 | Kiln with preheater precalcine |
| Φ4.5×66 | 4000 | 3.5 | 0.41 ~ 4.1 | 560 | JH800C ~ SW306 | 710.4 | Kiln with preheater precalcine |
| Φ4.8×74 | 5000 | 4 | 0.396 ~ 3.96 | 630 | Jh710 ~ 40 | 899 | Kiln with preheater precalcine |
| Φ5.0×74 | 6000 | 4 | 0.35 ~ 4 | 710 | JH800C ~ 28 | 944 | Kiln with preheater precalcine |
| Φ5.6×87 | 8000 | 4 | Max4.23 | 800 | JH900C ~ SW305 ~ 25 | 1265 | Kiln with preheater precalcine |
| Φ6.0×95 | 10000 | 4 | Max5 | 950×2 | JH900C ~ SW305 ~ 28 | 1659 | Kiln with preheater precalcine |
