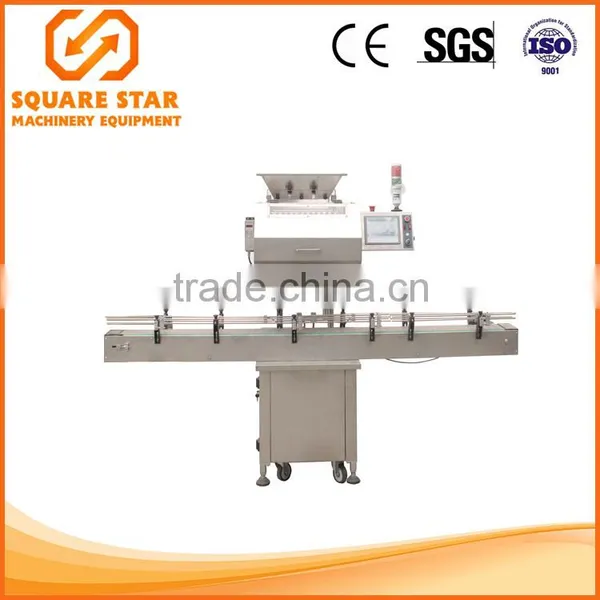

Automatic small electronic tablet counting machine
Counting& Filling Speed |
4500 pieces/minutes (Max) |
Application |
small electronic tablet counting machine |
Channel |
12 |
Diameter of bottle |
30~100mm (Customizable) |
Diameter of bottleneck |
Twice over tablet diameter or capsule length |
Height of bottle |
50~200mm (Customizable) |
Applicable objects |
0~5# hard/soft capsules, φ5~20mm tablets |
Dimensions |
1800mm×1500mm×1600 mm ( L × W × H ) |
Electrical Requirements |
1.5kW, 220/110v, 50-60HZ(Optional) |
Weight |
700kg |
Error rate |
≤1‰ |
Air supply pressure |
0.7MPa |
Working direction |
Left → Right (or Right → Left) |
l Speeds up to 45 cpm based on 100-count bottles with vibration system
l Counter discrepancies is less than 1‰
l Operation stable and lower noise

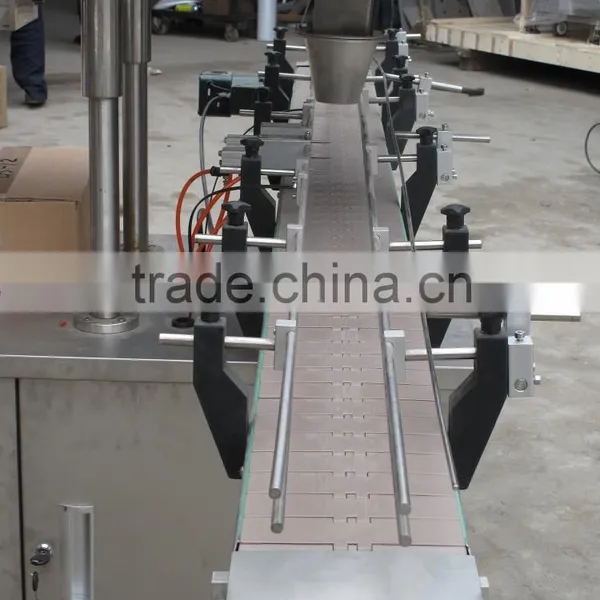

l Bottle convey smoothly with dual-track conveyor
l full-set protecting device keep operation steady and reliable
l Touch screen Control System which is easy to control
l Simple Straight Forward Operator Controls
l On-Screen trouble description which is easy to solve
l Stainless Frame small electronic tablet counting machine
This small electronic tablet counting machine combines 16-channel counting heads over a dual-track conveyor on a single frame to double the throughput without doubling the floor space, achieving speeds up to 60 cpm based on 100-count bottles. The machine handles a wide variety of candies,both hard and soft candies of different shapes, sizes and properties. |
Major components:
Specification |
Brand |
HMI |
SIEMENS |
PLC |
SIEMENS |
PLC extending module |
SIEMENS |
Communication cable |
SIEMENS |
Relay |
OMRON |
Sensor |
NS |
Logic inspection system |
PHILIP |
Bottle detecting sensor |
AUTONICS |
Power switch |
MEANWELL |
Transformer |
GBL |
Motor |
MEISTER |
Stainless steel |
SS304 |
Cylinder |
AIRTAC |
Squarestar Machinery was established in Shanghai, PR China in 1985, since that, we have dedicated to packaging machinery manufacturing and design for nearly 30 years. During so long time, we have extended our business to become a supplier of complete packaging line including bottle washer, unscrambler, filling and counting machine, inserting machine, labeling machine, capping machine, sealing machine, cartoning machine and so on. We believe that we possess rich experience and ability to meet a variety of requirements of you. Besides, we also provide very good after-sales service and solution of technology problem. We also provide training, on-site installation, documents support. We could make customized products based on different requirements of different customers. small electronic tablet counting machine |
|
1. One year warranty, free charge for spare parts in warranty 2. Engineer available to service overseas small electronic tablet counting machine 3. Good quality competitive price. ISO9001:2008 and CE certificate 4. You could ask for help about technical problem from our engineer through phone call orinternet any time for free. electronic tablet capsule counters |
