V-65 floor spring used imported spring,can run 50 thousand times

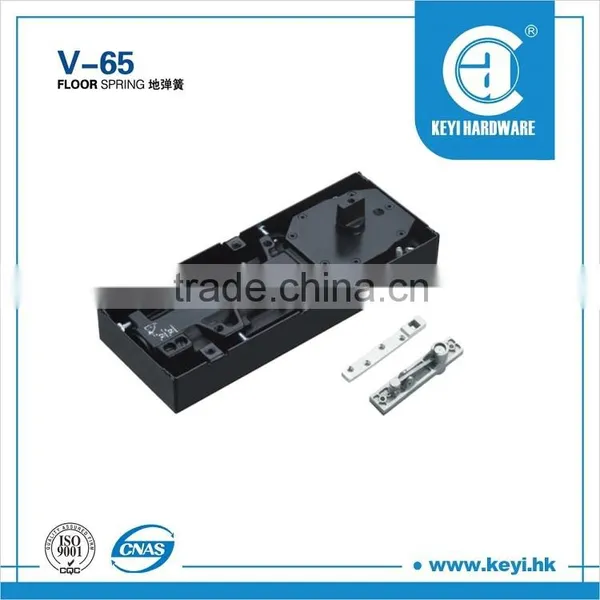

V-65
Standard Function
Sulitable for door size 950*1100mm
Maximum door weight 100kg
Angle of turn on the door 105 degree
90 degree arbitrariness orientation function
Suitable for the left,right door open and single,double action

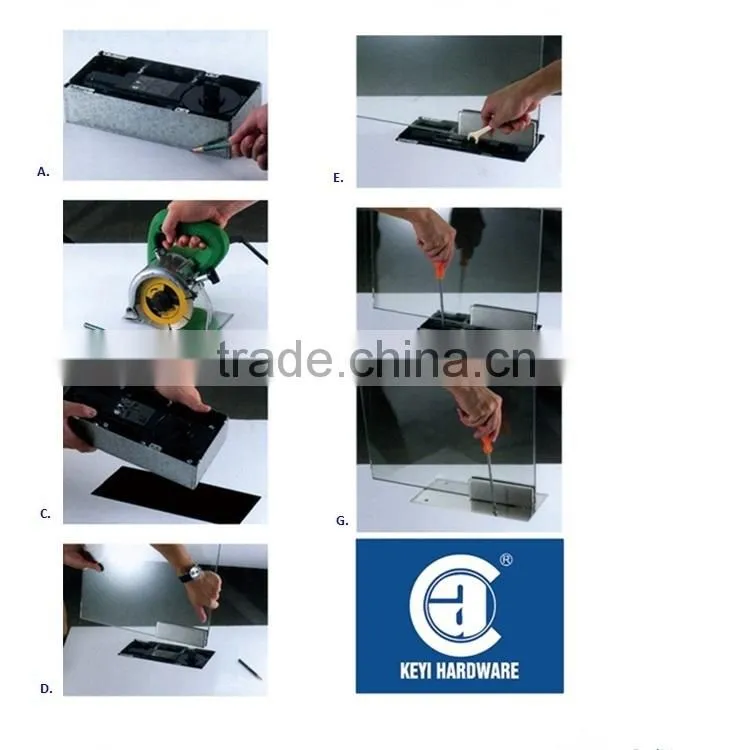

Floor spring installation steps:
A.Draw lines and make floor spring pivot center and door-nip pivot coincide with each other.
B.Drill holes on the floor according to the instruction.The sizes of the holes must tightly match the floor spring.
C.Place the floor spring into the holes and position it.
D.Raise the door leaf installed with door-nip,and insert the floor spring pivot into the hole of the door leaf.
E.Adjust the screws at three directions.Make them vertical and the upper an lower pivot center coincide with each other.
F.Adjust the speed of door closing.
G.Put the decoration cover on the floor spring.
floor spring series remarkable character
The body is thin and beautiful,used inported spring,can run 50 thousand time.
Used low temperature & resist freeze hydraulic pressure oil,keep the door smooth when it is -40 degree cold.
After special design,control the bearing of the spring hinge,lighten the strength when open and close the door
High strength and leak prevent configuration were used for extend the life of it.As it can avoid damage and oil leak by strength or strong wind from outside.
Cement box can be adjusted 5mm in length and 5mm in wide. Portrait adjust ±2 degree when calibrate zero site.It makes products easier to install.
our company
our workshop
our certificate
FAQ
01.Q:Are you a factory or trading company?
We are a factory specialized in designing and manufacturing window accessories, door control and furniture hardware from 1997
02.Q:Where is your factory located? How can I visit there?
We located in Jintao industry, Jinli town, Gaoyao area, Guangdong Province, China. If you want to visit our factory, you can inform us in advance so we can pick you up.
03.Q:Can you arrange sample for us to check the quality?
It is our pleasure. Please inform us your details information, we will delivery it within 3 days.
04.Q: What is the MOQ?
1 piece sample is available. The cost and freight will be requested at first and it will return to your first order.
05.Q:What's the payment of your factory?
We accept T/T, L/C etc.(Generally 30% T/T in advance, balance T/T before delivery)
If you need help, feel free to contact me,thank you very much.
