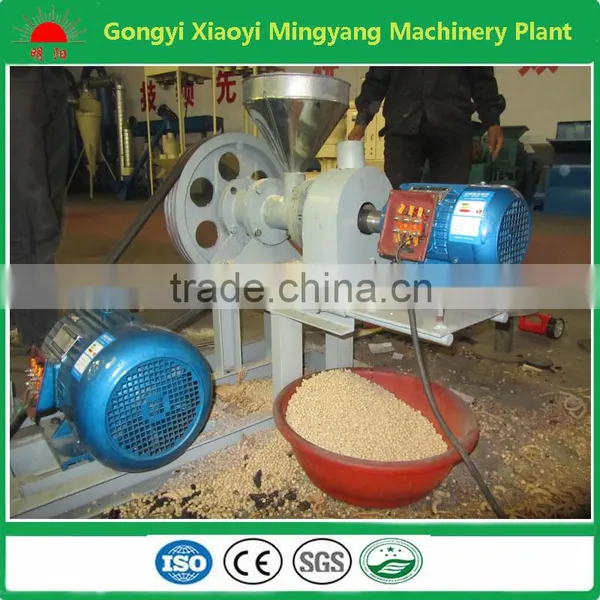

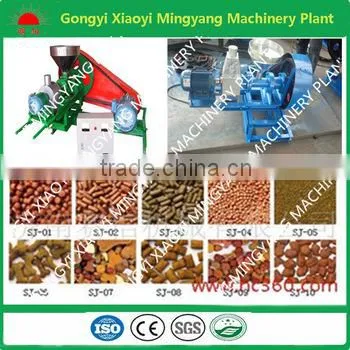

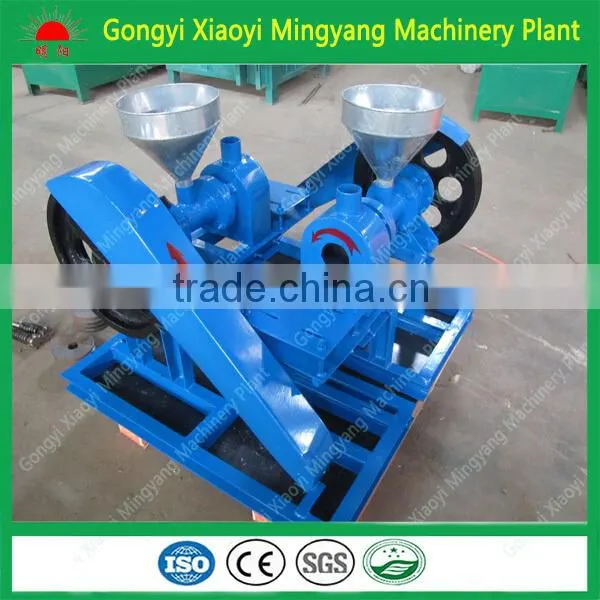

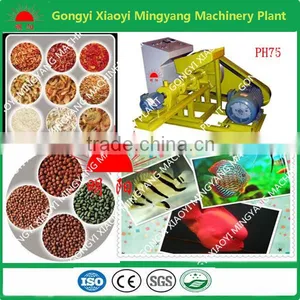

high quality 300kg per hour yield Animal Feed Pellet Machine

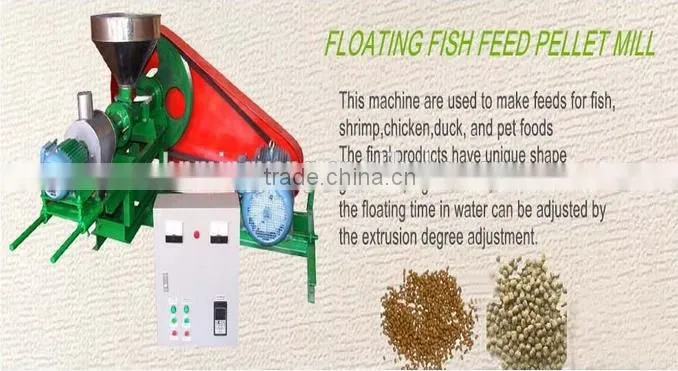

Introduction of Animal Feed Pellet Machine
- International advanced & diced structure, adopt cutter positioning spring and cutting forms, frequency, cut out and dice various different lengths of particles.
- Innovative, unique design, simple structure, easy disassembly is discharged transvestite, convenient operation.

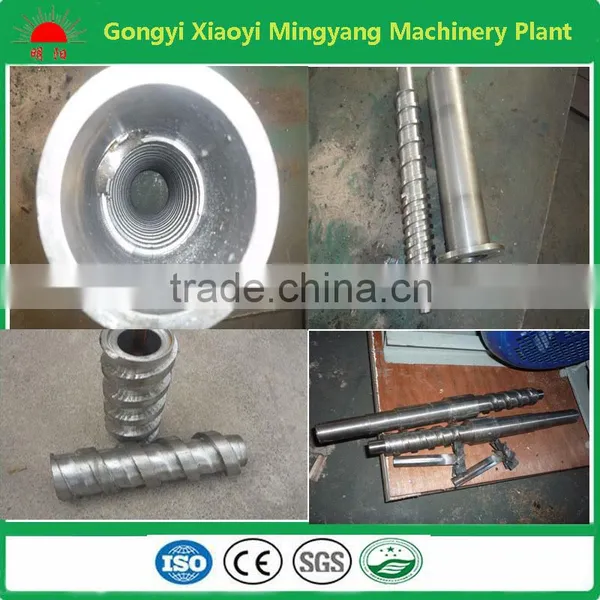

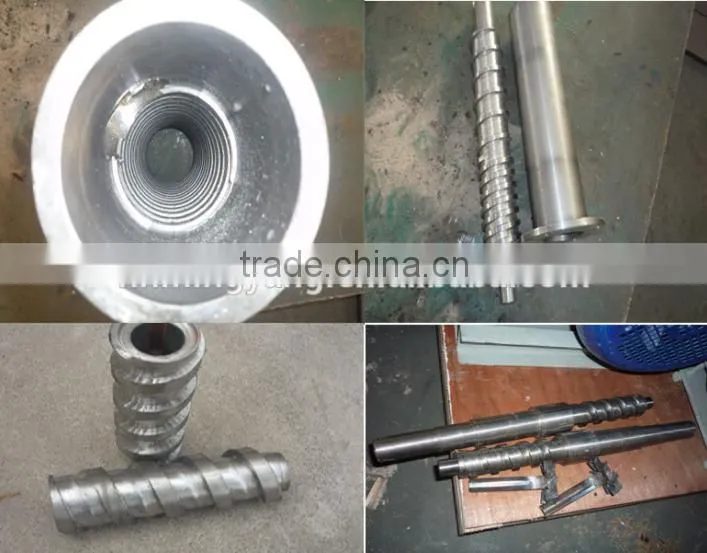

- Screw adopts special wear-resisting, high temperature resistant materials after the first conditioning heat molding, wear resistant and long life.
- With distinctive turbocharged punching, ensure the quality and yield of feed.
- Reasonable combination of practical spindle bearing, ensure the security and reliability of extrusion machine.
- The main motor adopts high-quality Y series three-phase motor, ensure the power is strong.
- Production buoyancy particles floating on the surface of extrusion feed can not keep 12 hours, fish and poultry bubble eat easy digest, artificial to observe the appetite of fish, don't cause feed waste water pollution.
- The high temperature and high pressure effectively kill salmonella typhimurium, escherichia coli, etc, to ensure that the virus harmful to health, the feed protein degeneration absorption and starch pasting, easy to fish and poultry.

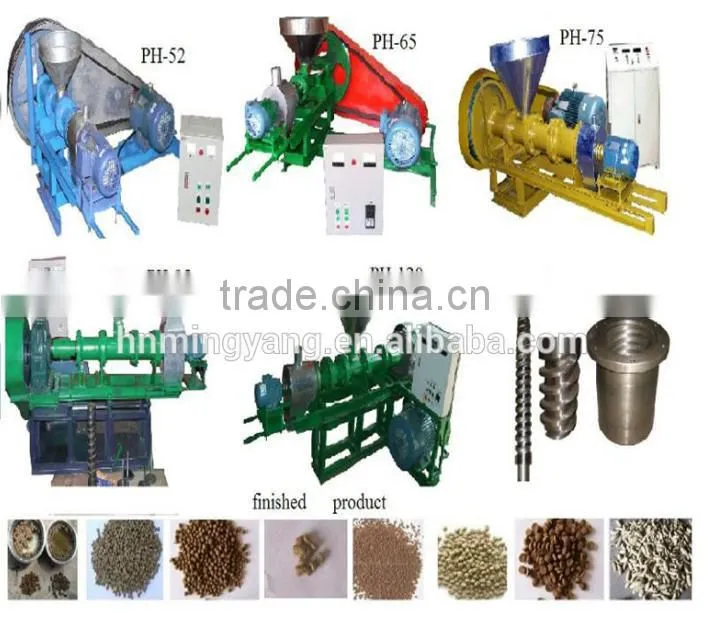

| Type | Screw dia(mm) | Power(kw) | Capacity(kg/h) | Machine size(m) | Final size(mm) | Weight(kg) |
| PH52 | 52 | 5.5+0.55 | 50-60 | 1.3*1*0.8 | 1.5-6 | 245 |

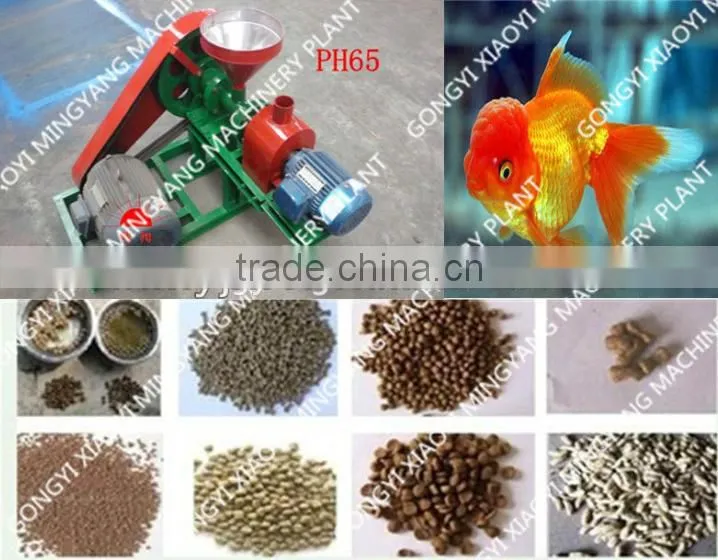

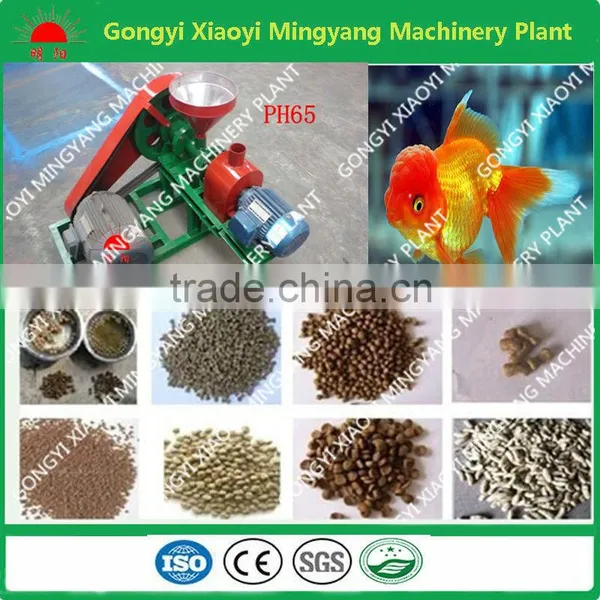

| PH65 | 65 | 11+0.75 | 80-100 | 1.2*0.7*0.85 | 1.5-8 | 420 |

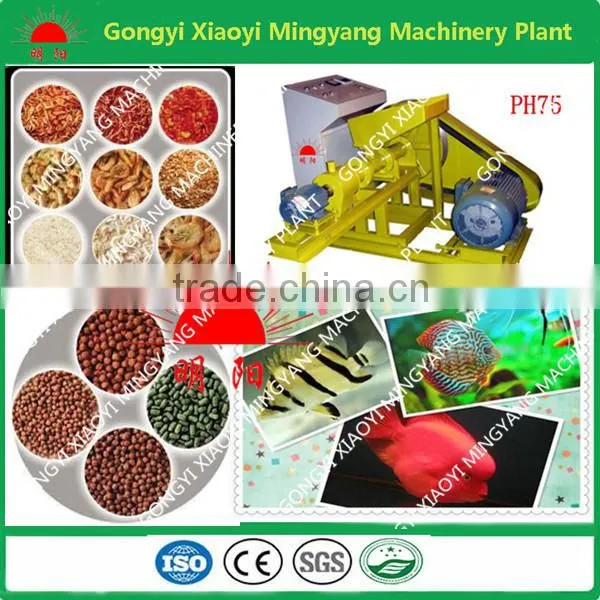

| PH75 | 75 | 15+0.75 | 140-160 | 1.5*1.2*0.9 | 1.5-8 | 565 |
| PH95 | 95 | 22+0.75 | 250-300 | 1.9*1.25*0.95 | 1.2-10 | 860 |

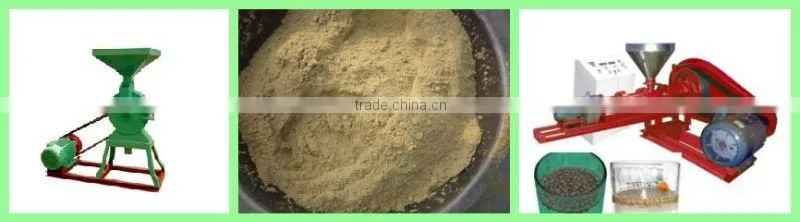

Raw material of Animal Feed Pellet Machine
The Animal Feed Pellet Machine can process different materials such as Grain plant, meat, bone meal, starch, grass powder and other material that can feed the animal.

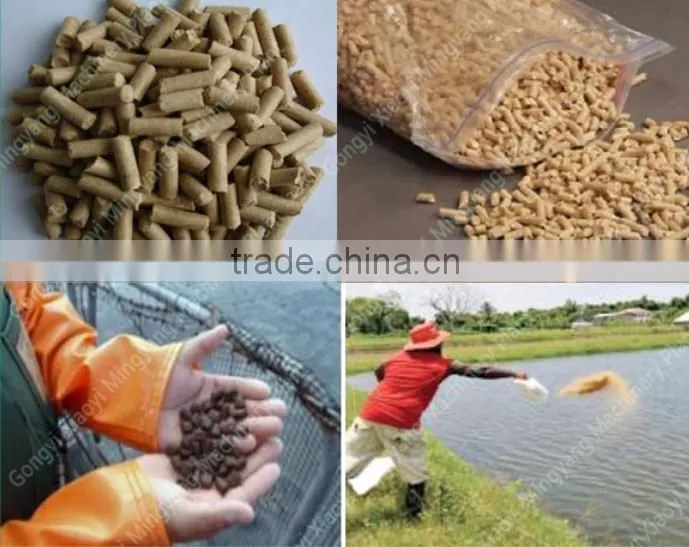

Final product of Animal Feed Pellet Machine

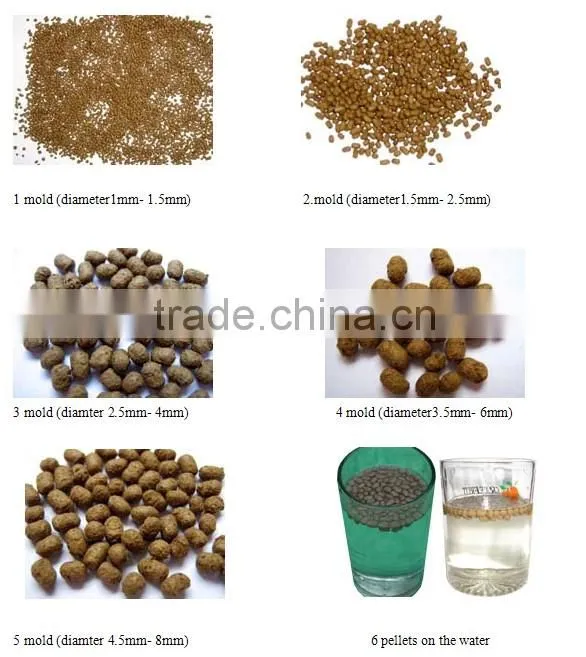

Different moulds can produce different size. The final products can used in frogs, fish, ornamental fish, pet feed, fish farmers, and small feed mill.
The Size of the final products : 1.2-12mm.
Working principle of Animal Feed Pellet Machine
There is no need to heat outside the machine, through the screw extruding of the raw material, produces heat during the rotary working process, and gathers heat in the airtight environment to reach ripening, during the high temperature ripening process, the starch and fiber of the raw material become swell, on the pressure-tight condition, spray up from the mold outlet through the high pressure produced by the regular rotating of the screw, after cutting by the forepart cutter which rotates regularly and high-speedily, the finished product will be shrunk and become small average ball.
Feature of Animal Feed Pellet Machine
- Composed of feeding system, extruding system, cutting system, controlling system.
- Auto temperature control system, make the temperature controlling more direct viewing and the parameter more precise.
- Combined main shaft can adapt a variety of material.
- Screw barrel are designed optimized to get longer service life lower production cost.
- Cutting system adopts advanced frequency conversion and speed-adjusting system of sophisticated structure, and granules of the size is adjustable.
- Works well in long time and continuous using, running steadily and reliability, easy to operate.
Advantage of Animal Feed Pellet Machine
- With different moulds, the food processing machine can produce different diameter food, from 0.9mm to 10 mm.
- The food can meet different stage fish. The food can be floating 24hours.
- It can produce different shapes feed for fish, dog, cat etc.
- Through the pretreatment of the feed, it can reduce loss of nutrition and advance the protein ratio.
- So the feed will be digested easily by animals.

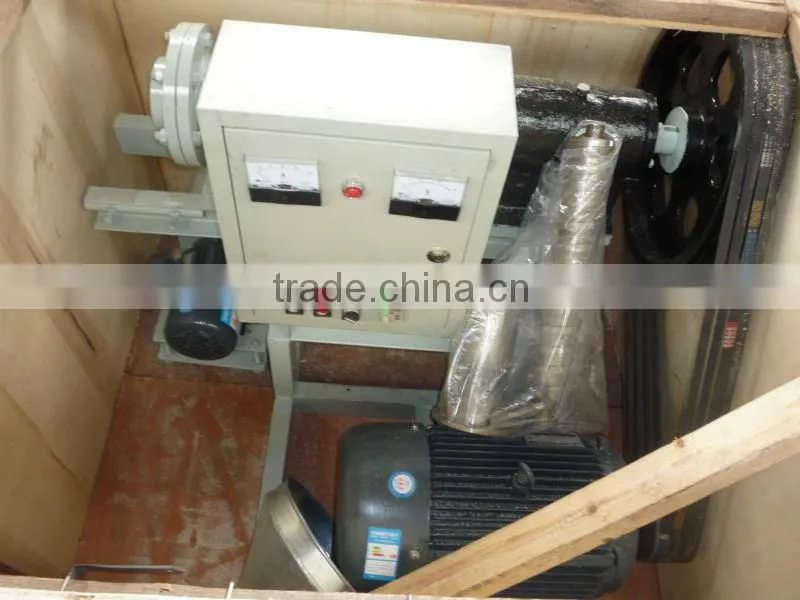

The Animal Feed Pellet Machine are packing in the plywood boxes or wooden cases, then put into the 20 feet or 40 feet container in delivery.

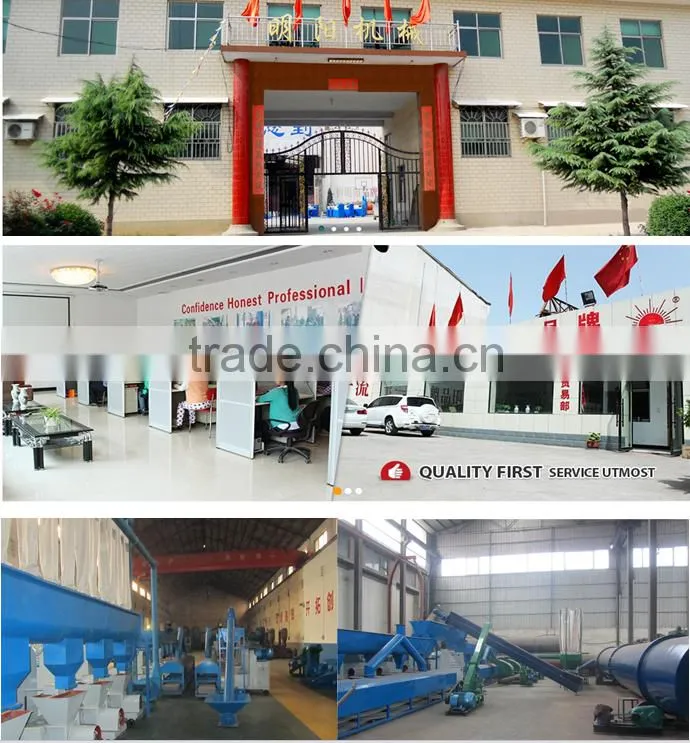

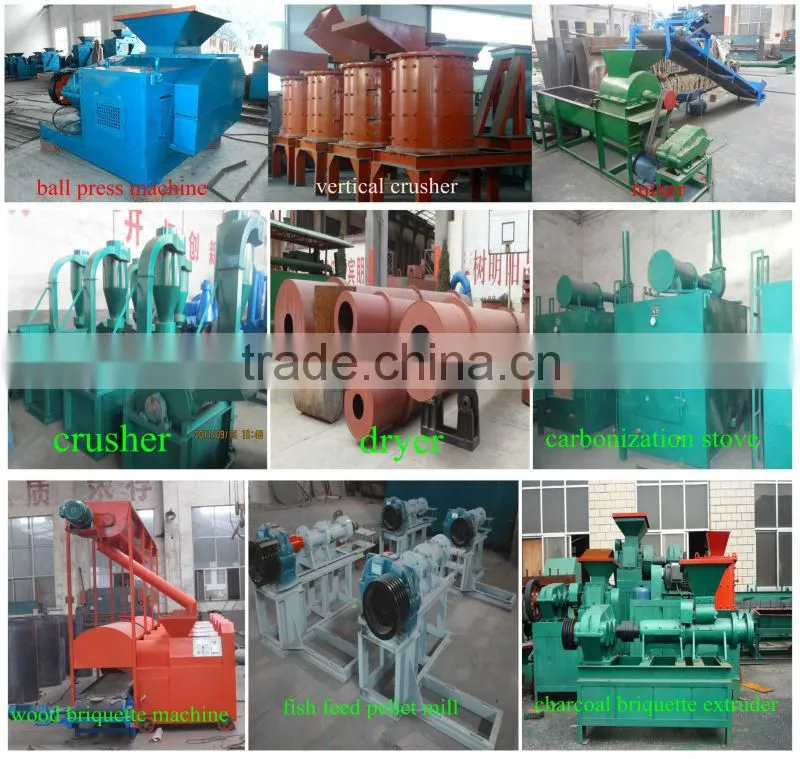

About us----Gongyi Xiaoyi Mingyang Machinery Plant
Gongyi Xiaoyi Mingyang Machinery Plant is established in 2000, which is the biggest manufacturing base of charcoal making machinery. And we have developed to be a new type scientific enterprise combining scientific research and produce through more than 10 years development. Our products hold the features of reasonable design, high performance and low cost, environmental friendly and conservation of energy,low investment and high return.and as a result , have been sold all over China and many otherer oversea countries.
