2016 Hot Sell Screw Type 80kg per Hour Fish Feed Pellet Mill With Factory Price

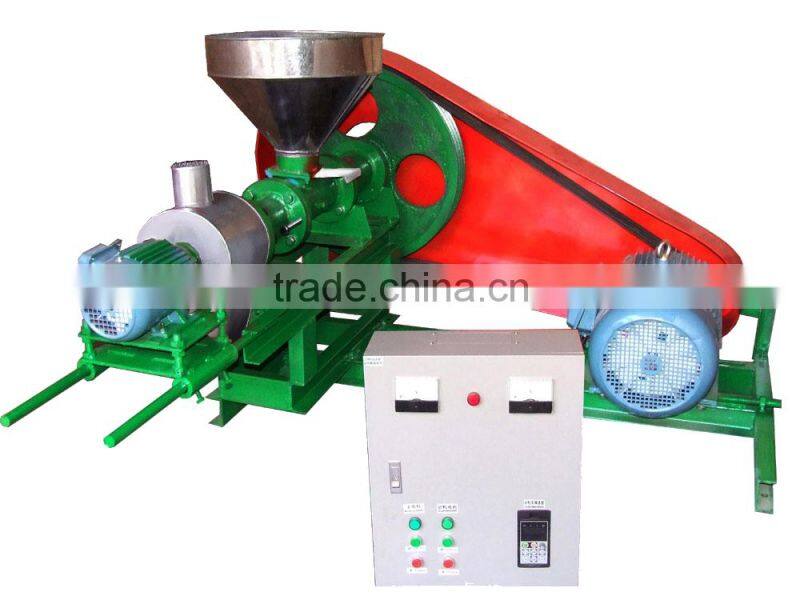

2016 Hot Sell Screw Type 80kg per Hour Fish Feed Pellet Mill With Factory Price photo-1
2016 Hot Sell Screw Type 80kg per Hour Fish Feed Pellet Mill With Factory Price photo-2

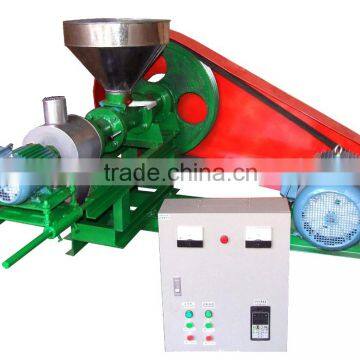

2016 Hot Sell Screw Type 80kg per Hour Fish Feed Pellet Mill With Factory Price photo-3

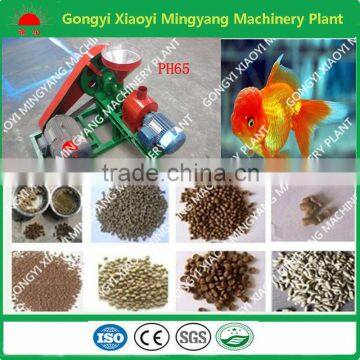

2016 Hot Sell Screw Type 80kg per Hour Fish Feed Pellet Mill With Factory Price photo-4
2016 Hot Sell Screw Type 80kg per Hour Fish Feed Pellet Mill With Factory Price photo-5
2016 Hot Sell Screw Type 80kg per Hour Fish Feed Pellet Mill With Factory Price photo-6
US$ 1,500 - 4,039 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Mingyang
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Mingyang
Model Number PH-65
Type Feed Pellet Machine
Voltage 380V
Power(W) 11+0.75kw
Dimension(L*W*H) 1.2*0.7*0.85m
Weight 420 kg
Certification ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

The information of fish feed pellet mill

fish feed pellet mill along with the development of the society, the feeds for fish, shrimp, chicken, duck, and pet foods of cats and dogs are in high demand currently. The final products have unique shape and good taste, high nutrition, smooth textures. For feeds of fish and shrimp, the floating time in water can be adjusted by the extrusion degree adjustment.

The raw material of fish feed pellet mill

raw materials need grind into less than 2mm, moisture content : 20-25%

raw materials can be: corn,wheat, rice,corn, broomcorn,maize, beans, soybean, grain, bone powder etc.

The  application of fish feed pellet mill

fish feed pellet mill is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps,crab etc. The puffing fish feed pellets can float on the water surface without dissolution for over12 hours.

The technical parameter of fish feed pellet mill

we have some type
Type
Screw dia
Power
Capacity
Weight
Machine size(m)
Final size
PH-52
52mm
5.5+0.55kw
50-60kg/h
245kg
1.3*1.0*0.8
1.5-6mm
PH-65
65mm
11+0.75kw
80-120kg/h
420kg
1.2*0.7*0.85
1.5-8mm
PH-75
75mm
15+0.75kw
140-160kg/h
565kg
1.5*1.2*0.9
1.5-8mm
PH-95
95mm
22+0.75kw
250-300kg/h
850kg
1.9*1.25*0.95
1.2-10mm

The working principle of fish feed pellet mill

After the material is sent into feeding device, they will be extruded and expanded by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the expanded material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.

Main Features of fish feed pellet mill

1. Composed of feeding system, extruding system, cutting system, controlling system.

2. The fish feed pellet mill includes auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.

3. The fish feed pellet mill Works well in long time and continuous using, running steadily and reliability, easy to operate.

4. The fish feed pellet mill can also make sinking fish feed, for floating fish feed, the floating time will be more than 24 hours

5. The fish feed pellet mill can produce different sizes of the fish feed pellets, to meet the needs of different fishes.

The final product of fish feed pellet mill

During the process of producing feed pellets, the temperature of pellet press can reach 70-80 centigrade.
At this temperature, fecula can be made into paste in pellet press.
The inside granule is cooked fully, so the pellets will be not easy to go moldy and degenerative.
This kind of cooked pellets can be stored for a long time and improve poultry dainty and assimilation function for feed animal.
It also can shorten the period of feeding, so it can efficiently guarantee many users’productive cost.

Packing & Delivery

The packing and shipping of fish feed pellet mill

fish feed pellet mill packing in the plywood boxes or wooden cases, then put into the 20 feet or 40 feet container in delivery as follows.
