Hot Sell Floating Fish Feed15kw Screw Type Feed Extruder With ce Approved

Hot Sell Floating Fish Feed15kw Screw Type Feed Extruder With ce Approved photo-1
Hot Sell Floating Fish Feed15kw Screw Type Feed Extruder With ce Approved photo-2
Hot Sell Floating Fish Feed15kw Screw Type Feed Extruder With ce Approved photo-3
Hot Sell Floating Fish Feed15kw Screw Type Feed Extruder With ce Approved photo-4
Hot Sell Floating Fish Feed15kw Screw Type Feed Extruder With ce Approved photo-5
Hot Sell Floating Fish Feed15kw Screw Type Feed Extruder With ce Approved photo-6
US$ 1,500 - 4,039 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Mingyang
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Mingyang
Model Number PH-75
Type Feed Pellet Machine
Voltage 380V
Power(W) 15+0.75kw
Dimension(L*W*H) 1.5*1.2*0.9m
Weight 565 kg
Certification ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

The information of screw type Feed extruder

Our screw type Feed extruder is a new kind of single-screw extrusion bulking machine which is suitable in the large-sized, medium-sized, small sized Feeding Farm, Feed Mill and Foodstuffs Factory.

screw type Feed extruder is mainly used for puffed food, Livestock and poultry feed or extruding single material,

The raw material of screw type Feed extruder

Groundnut shell, sugarcane biogases caster shells, stalk, sawdust, coffee husk, paddy straw, sunflower stalk, cotton stalk, tobaco waste, bamboo dust, tea waste, wheat straw, palm husk, soybean husk.

The  application of screw type Feed extruder

1 suit for water live animal or pet etc

2 feed pellet can float or sink in the water

3 dry or wet extrude

The technical parameter of screw type Feed extruder

we have some type
Type
Screw dia
Power
Capacity
Weight
Machine size(m)
Final size
PH-52
52mm
5.5+0.55kw
50-60kg/h
245kg
1.3*1.0*0.8
1.5-6mm
PH-65
65mm
11+0.75kw
80-120kg/h
420kg
1.2*0.7*0.85
1.5-8mm
PH-75
75mm
15+0.75kw
140-160kg/h
565kg
1.5*1.2*0.9
1.5-8mm
PH-95
95mm
22+0.75kw
250-300kg/h
850kg
1.9*1.25*0.95
1.2-10mm

The working principle of screw type Feed extruder

After the material is sent into feeding device, they will be extruded and expanded by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the expanded material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.

Main Features of screw type Feed extruder

 High Stability, floating pellets can float about 12 hours continuously in water,without polluting the water.

Easy to absorb and digest. The starch gelatinization degree can reach 80-99% after processing.

It is of great help to feed water animals,like fish,shrimp,carp,catfish,etc.

Harmful bacterial are killed under high temperature and high pressure, which greatly reduced fish ill rate.

The pellet's surface is smooth, looks very beautiful and have no bad smell.

The final product of screw type Feed extruder

During the process of producing feed pellets, the temperature of pellet press can reach 70-80 centigrade.

At this temperature, fecula can be made into paste in pellet press.

The inside granule is cooked fully, so the pellets will be not easy to go moldy and degenerative.

This kind of cooked pellets can be stored for a long time and improve poultry dainty and assimilation function for feed animal.

It also can shorten the period of feeding, so it can efficiently guarantee many users’productive cost.

Packing & Delivery

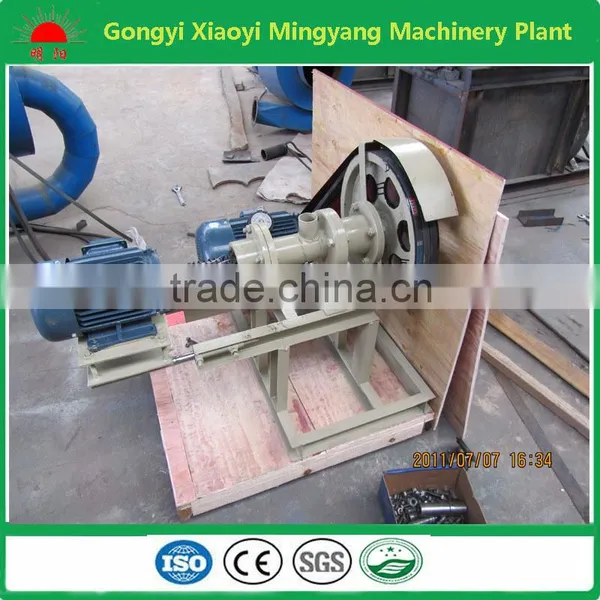

The packing and shipping of screw type Feed extruder

screw type Feed extruder packing in the plywood boxes or wooden cases, then put into the 20 feet or 40 feet container in delivery as follows.

Other machine
Our company

for us -------- Gongyi Xiaoyi Mingyang Machinery Plant

Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery.And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
our company:

After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.

Certifications

We have got many certification such as CE, ISO9001,BV ,etc.
