Floating Type 100kg per Hour Flour Pellet Extruding Machine With Factory Price

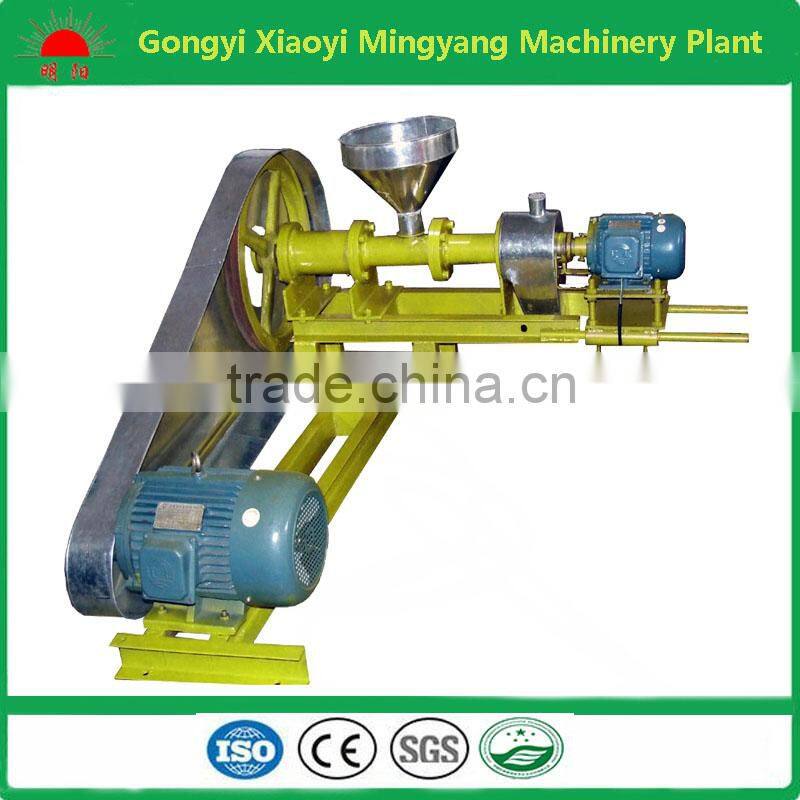

Floating Type 100kg per Hour Flour Pellet Extruding Machine With Factory Price photo-1

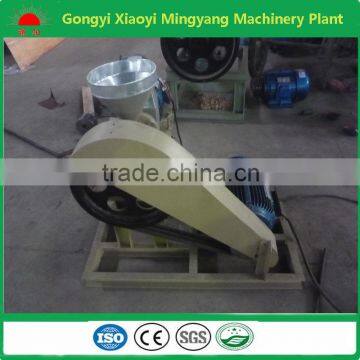

Floating Type 100kg per Hour Flour Pellet Extruding Machine With Factory Price photo-2

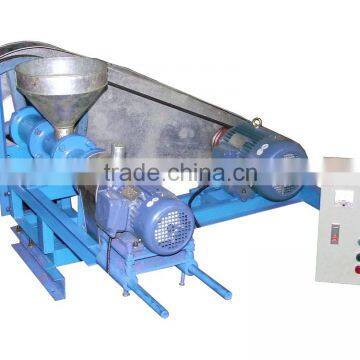

Floating Type 100kg per Hour Flour Pellet Extruding Machine With Factory Price photo-3

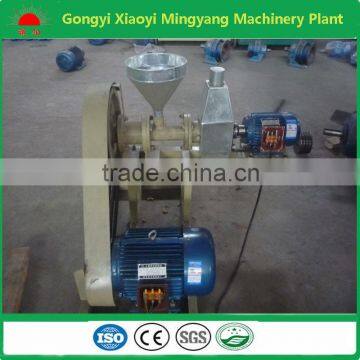

Floating Type 100kg per Hour Flour Pellet Extruding Machine With Factory Price photo-4

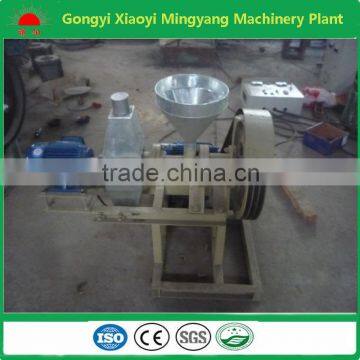

Floating Type 100kg per Hour Flour Pellet Extruding Machine With Factory Price photo-5
Floating Type 100kg per Hour Flour Pellet Extruding Machine With Factory Price photo-6
US$ 1,500 - 4,039 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Mingyang
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Mingyang
Model Number PH-65
Type Feed Pellet Machine
Voltage 380V
Power(W) 11+0.75kw
Dimension(L*W*H) 1.2*0.7*0.85m
Weight 420 kg
Certification ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

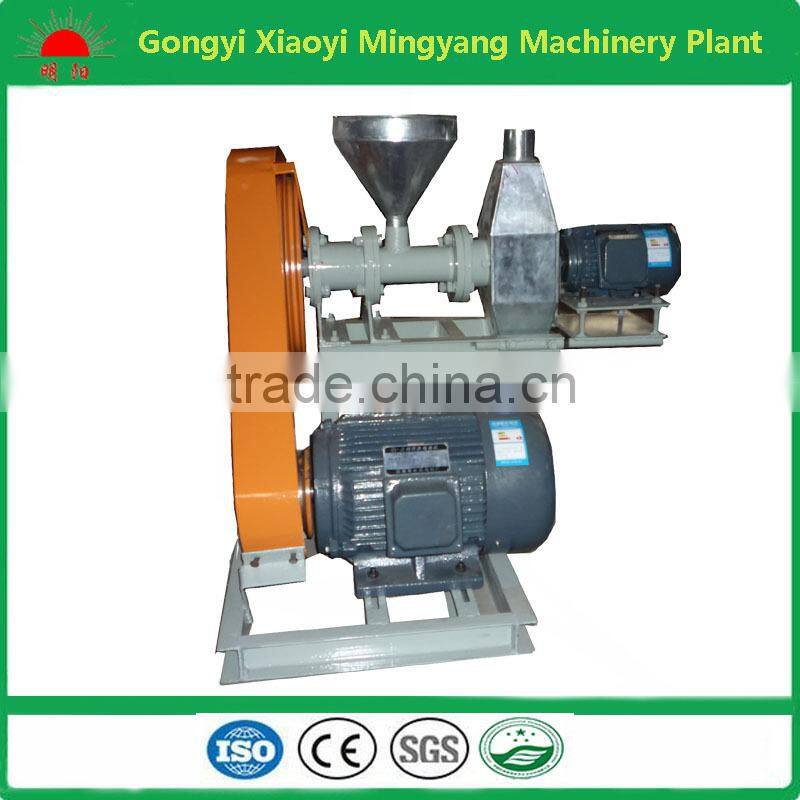

The information of flour pellet extruding machine

flour pellet extruding machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours. According to your requirement and production scale, flour pellet extruding machine can be classified into dry type machine and wet type machine.

The raw material of flour pellet extruding machine

raw materials can be: corn,wheat,soybean,grain ,bone powder etc

raw materials need grind into 60-80mesh

raw materials moisture content : 20-25%

The  application of flour pellet extruding machine

Aquatic feed pellets: fish, shrimp, frog etc.

Pet feed pellets: dog, cat, rabbit, bird, chicken, goose, duck, pig etc.

The technical parameter of flour pellet extruding machine

we have some type
Type
Screw dia
Power
Capacity
Weight
Machine size(m)
Final size
PH-52
52mm
5.5+0.55kw
50-60kg/h
245kg
1.3*1.0*0.8
1.5-6mm
PH-65
65mm
11+0.75kw
80-120kg/h
420kg
1.2*0.7*0.85
1.5-8mm
PH-75
75mm
15+0.75kw
140-160kg/h
565kg
1.5*1.2*0.9
1.5-8mm
PH-95
95mm
22+0.75kw
250-300kg/h
850kg
1.9*1.25*0.95
1.2-10mm

The working principle of flour pellet extruding machine

There is no need to heat outside the machine, through the screw extruding of the raw material, produces heat during the rotary working process, and gathers heat in the airtight environment to reach ripening, during the high temperature ripening process, the starch and fiber of the raw material become swell, on the pressure-tight condition, spray up from the mold outlet through the high pressure produced by the regular rotating of the screw, after cutting by the forepart cutter which rotates regularly and high-speedily, the finished product will be shrunk and become small average ball.

Main Features of flour pellet extruding machine

1)The food can meet different stage fish.

2)It can produce different shapes feed for fish, dog, cat etc.

3)With different moulds, it can produce different diameters from 0.9mm to 10 mm.

4)The food can be floating 24hours. So we can easily find whether the fish feed is eaten by the fish or not.

5)Through the pretreatment of the feed, it can reduce loss of nutrition and advance the protein ratio.

The final product of flour pellet extruding machine

During the process of producing feed pellets, the temperature of pellet press can reach 70-80 centigrade.

At this temperature, fecula can be made into paste in pellet press.

The inside granule is cooked fully, so the pellets will be not easy to go moldy and degenerative.

This kind of cooked pellets can be stored for a long time and improve poultry dainty and assimilation function for feed animal.

It also can shorten the period of feeding, so it can efficiently guarantee many users’productive cost.

Packing & Delivery

The packing and shipping of flour pellet extruding machine

flour pellet extruding machine packing in the plywood boxes or wooden cases, then put into the 20 feet or 40 feet container in delivery as follows.

Other machine
Our company

for us -------- Gongyi Xiaoyi Mingyang Machinery Plant

Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery.And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
our company:

After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.

Certifications

We have got many certification such as CE, ISO9001,BV ,etc.
