Maltifunctional Automatic Milk Powder Filling Machine

Maltifunctional Automatic Milk Powder Filling Machine photo-1
Maltifunctional Automatic Milk Powder Filling Machine photo-2
Maltifunctional Automatic Milk Powder Filling Machine photo-3
Maltifunctional Automatic Milk Powder Filling Machine photo-4
Maltifunctional Automatic Milk Powder Filling Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Medical
Packaging Type:
Bottles, Cans, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or any port of CN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Medical
Packaging Type Bottles, Cans, Pouch
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 3P, 380/220V
Power 3.3KW
Place of Origin Shanghai, China
Brand Name SQUARESTAR
Model Number DCS-02
Dimension(L*W*H) 2650*1000*2300mm
Weight 450kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Technical parameters

Model

DCS-2, milk powder filling machine

Dosing mode

Dual-nozzle filling with online weighing

Filling Weight

100 - 2000g

Container Size

Φ60-135mm; H 60-260mm

Filling Accuracy

100-500g, ≤±1g; ≥500g,≤±2g

Filling Speed

Above 50 cans/min(#502),Above 60 cans/min(#300 ~ #401)

Power Supply

3P  AC208-415V   50/60Hz

Total Power

3.3kw

Total Weight

450kg

Air Supply

6kg/cm  0.3cbm/min

Overall Dimension

2650×1000×2300mm

Hopper Volume

50L(Main) 35L (Assist)

Key features

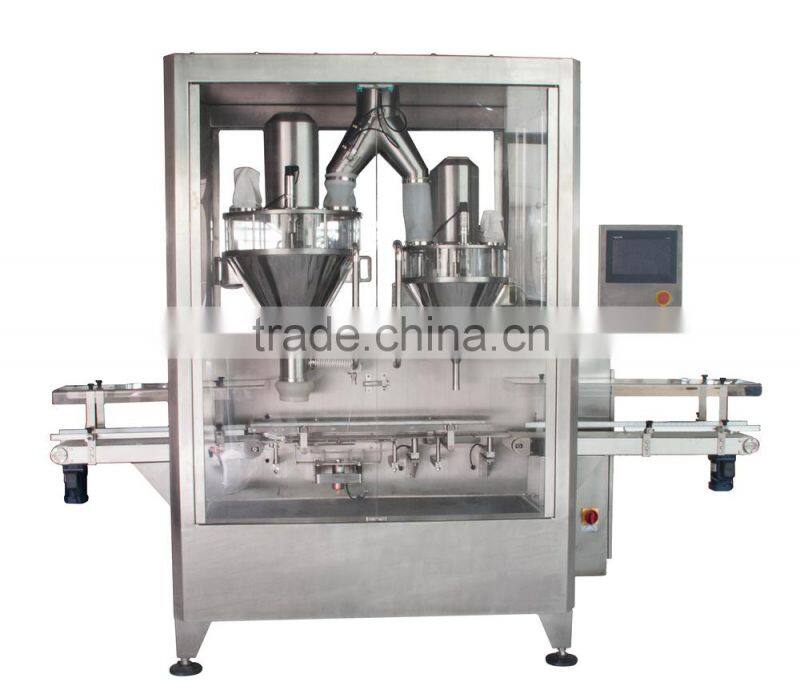

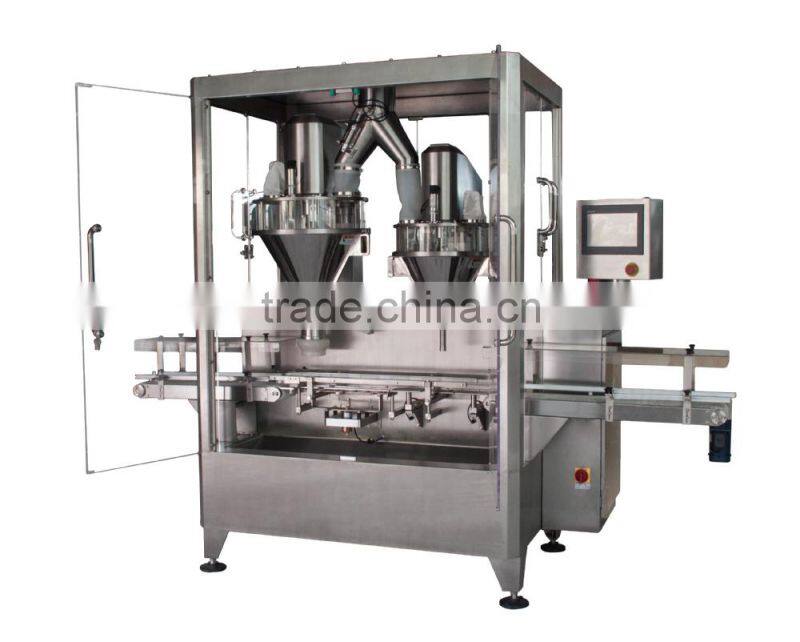

 This milk powder filling machine is a new-designed that we make it on placing the old turn plate feeding on one side. Dual auger filling within one line main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could be combined with other machines to buildup a whole can-packing production line. This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on.

Details description

Maltifunctional automatic milk powder filling machineMaltifunctional automatic milk powder filling machine

Maltifunctional automatic milk powder filling machineMaltifunctional automatic milk powder filling machineMaltifunctional automatic milk powder filling machine

About us
Squarestar machinery was established in Shanghai, PRC since 1985, manufacturing packaging machinery. In the past years, we has extended our business to become a supplier of complete packaging line as liquid/tablet/capsule bottling line (bottle unscrambler, filling or counting machine, cotton/desiccant inserter, capper, induction sealer, labeler, cartoning machine etc). We provide complete solution to meet variety of requirements of customers. Besides, inspection and conveyor system is also in our business line.

Maltifunctional automatic milk powder filling machineMaltifunctional automatic milk powder filling machine

If this milk powder filling machine is the product you are looking for, pls contact us and ask for more detail information about it, you could also put forward some particular requirements about the machine you need exactly because we possess rich experience in customized business.

Our warranty

 1. One year warranty, free charge for spare parts in warranty

 2. Engineer available to service overseas

 3. Good quality competitive price. ISO9001:2008 and CE certificate

 4. You could ask for help about technical problem from our engineer through phone call               orinternet any time for free.

FAQ

Q1: As an oversea buyer, I am wondering whether you will send your repairman or engineer to

our country to help us to solve our problem after one year warranty.

A1: Of course, we will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary, we will provide a reasonable repair price to satisfy you.



Q1: Are you a factory or an agent?

A1: We are an OEM, we always design and manufacture our products ourselves, so we could provide satisfactory technical and after-sales service. You could pay a visit to our factory any time if you are willing to.



Q3: How does your factory do regarding quality control?

A3:Quality is priority! Every worker keeps the QC from the very beginning to the very end, all

material we used are meet GB standard, skillful workers care every detail in handing each

process, Quality control department specially responsible for quality checking in each             process.
