corrugated cardboard machine

Specifications

corrugated cardboard machine
It's the group machine for producing 3,5,7layer corrugated cardboard

corrugated cardboard machine

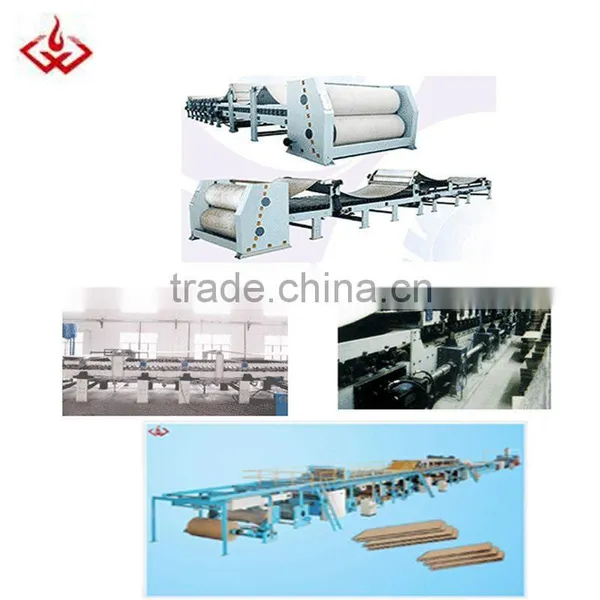

Corrugated cardboard production line

   Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The three-ply, five-ply, seven-ply, and multi-function corrugated cardboard production line mainly consist of the following equipment; Mill Roll Stand, Surface Paper(core paper) Preheater , Single Facer, Conveying Span Bridge, Glue Application Machine, Double Facer, Slitter Scorer, Cut-off, Conveyer and Stacker, Heating System, Air compression system and Glue Making System, etc. The three-ply, five-ply, seven-ply, and multi-function corrugated cardboard production line has high, middle and low grade with different-specification and different-quality equipment. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60220m/min; the paper width 16002200mm(or usersappoint) and four fluting UV type A,B,C,E for customers choices.

. 3ply Corrugated Cardboard Production Line

Main Technology Parameter:

Design Speed	30-50m/min  50-80m/min  60-100m/min  80-150m/min
Working Speed	30-40m/min   50-70m/min   60-90m/min  80-120m/min
Expiry Width	1600mm-2400mm
Power	About 60KW-80KW
Drum Diameter	270mm-360mm
Flute Type	A,B,C,E for you choice( or user specified)
Type of heating	Oil,steam

5ply Corrugated Cardboard Production Line

Main Technology Parameter

Design Speed	30-50m/min  50-80m/min  60-100m/min  80-150m/min
Working Speed	30-40m/min   50-70m/min   60-90m/min  80-120m/min
Expiry Width	1600mm-2400mm
Power	About 80KW-100KW
Drum Diameter	270mm-360mm
Flute Type	A,B,C,E for you choice( or user specified)
Type of heating	Oil, steam
