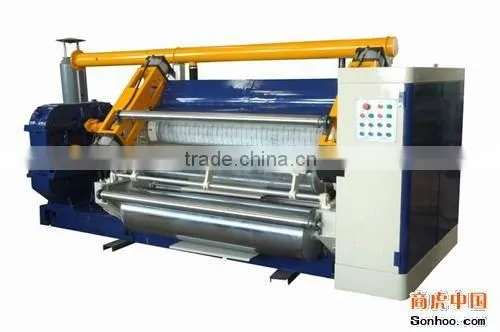

Help CenterSingle Facer, Carton Box Machine
Related Products
-
Corrugated Box MachineUS$ 12,000 - 26,500MOQ: 1 Set -
Multi-color Printing and Slotting ,carton Box MachineUS$ 10,000 - 40,000MOQ: 1 Set
-
Rotary Die Cutting, Carton Box MachineNegotiableMOQ: 1 Set
-
Carton Box Machine Slitting Scorer MachineUS$ 4,400 - 26,500MOQ: 1 Set
-
ISO9001:2000 Thin Blade Slitter and Scorer MachineUS$ 2,000 - 50,000MOQ: 1 Set
Specifications
carton box machinedesign speed: 180m/min
expiry width: 1400-2200mm
carton box machine
corrugated roller: 320mm-360mm
vacuum absorbable style transmitting cardboard equipment, with wind control
glue roller and upper roller and designed to groups guide way slippage load-unload, convenient and swift.
gimbals transmission, fission structure with unattached drive box, transmission more stable, close style gear transmission oiliness lubricated, prolong the use life of gear.
the upper corrugated and pressure roller and glue roller adopt pneumatic control
the axletree of corrugated and pressure roller adopts high temperature resistant lube.
adopt elect motion paste insulation set, the glue parts running separately while the main motor stopped, prevent paste from drying up
electro motion adjusted figure show the glue quantity or manual adjust the glue quantity.
the upper-lower corrugated roller are made of 48CrMo high quality alloy steed, after heat-treatment, the rigidity is HRC58-60 degree, the surface are whetted and plating chrome.
