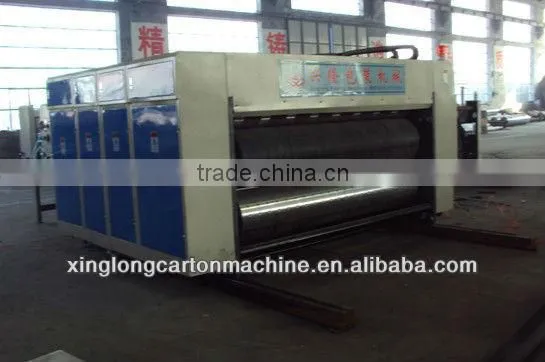

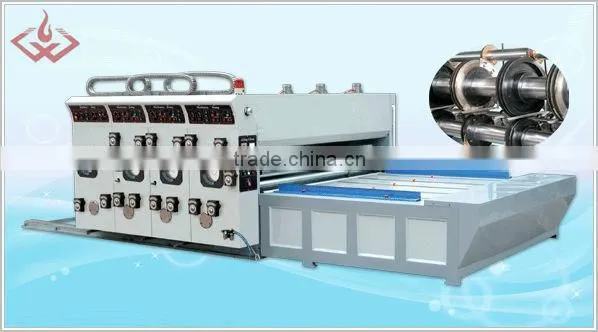

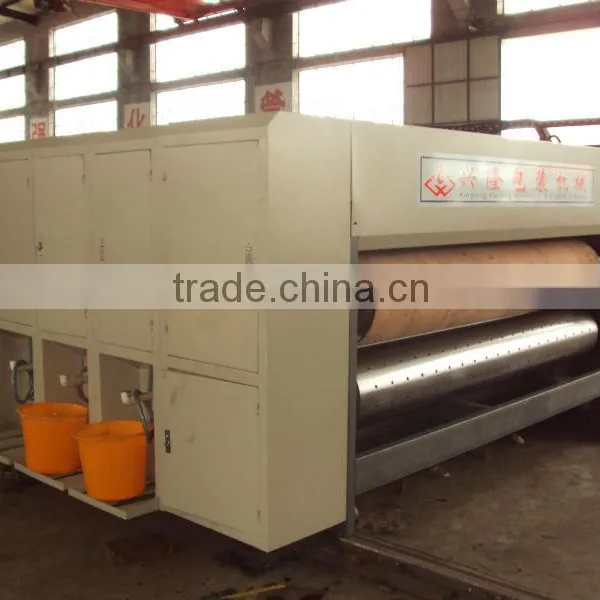

Two Color Printing Rotary Die-cutting Machine for Cartons

Two Color Printing Rotary Die-cutting Machine for Cartons thumbnail-1
Two Color Printing Rotary Die-cutting Machine for Cartons thumbnail-2
Two Color Printing Rotary Die-cutting Machine for Cartons thumbnail-3
Two Color Printing Rotary Die-cutting Machine for Cartons photo-1
Two Color Printing Rotary Die-cutting Machine for Cartons photo-2
Two Color Printing Rotary Die-cutting Machine for Cartons photo-3
US$ 32,000 - 64,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Semi-Automatic
Usage:
Paper Forming Machine
Contact Supplier Request Quote Chat Now
Dongguang Xinglong Packaging Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Semi-Automatic
Usage Paper Forming Machine
Place of Origin Hebei, China
Brand Name XINGLONG
Model Number XL
Voltage 380v 50Hz
Power(W) 7.5 kw
Dimension(L*W*H) 5*3.5*2 m
Weight 5500 kg
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Main Technology Parameter:

Parameters name

unit

Parameters

Max. paper coverage area

Mm

2700*1600

Effective printing area

Mm

2400*1600

Min finish size

Mm

500*400

Thickness of printing plank

Mm

6

Max speed

Piece/min

120

Economy speed

Piece/min

90

Frequency conversion power of main motor

Kw

15-30

Topping precision

Mm

0.75



Function and Characteristics:

1.Use the combination chain style on feeding table.

2.Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quickly and accurately.

3.Inking roller can be detached from printing plate automatically to avoid damage the printing plate.

4.Inking roller equipped idling running device to prevent ink from being dried when machine stop.

5.Pneumatic lock, electrical divides

6. With Pneumatic diaphragm pump to supply ink.

7. Automatic ink distributing.

8. Main transmission gears are made by 45#steel after high frequency quenching.

9. Drive part adopts spray lubricating system, improve the precision and serve life of machine.

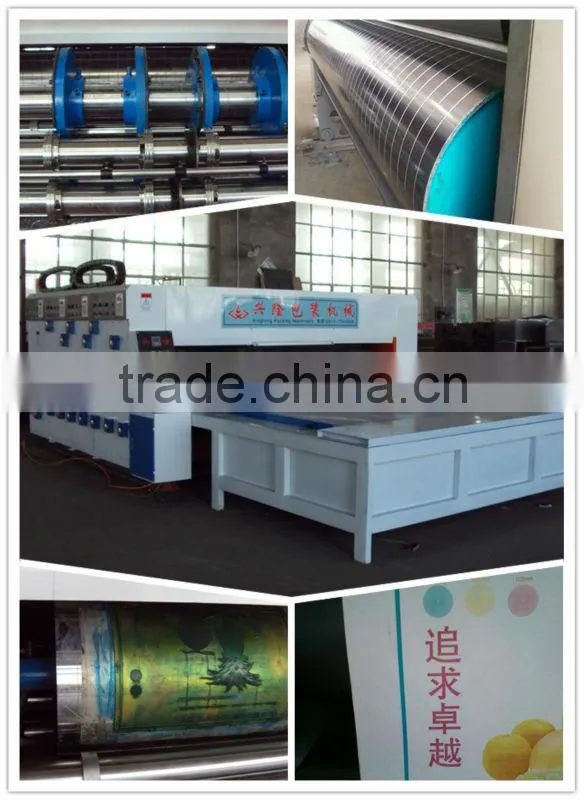

10. The height of carton can be adjusted synchronous.Two color printing rotary die-cutting machine for cartons

Two color printing rotary die-cutting machine for cartons
