Hot sell ISO CE approved 3-9 m3/h output Dry-Mix Gunite Machine for Coal Mine
Product Introduction
Shotcrete machine is widely used in engineering and construction, mining, tunnel, culvert, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations.
Shotcrete Machine Feature
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
Technology Parameters
| Shotcrete Machine Technical parameter | |||
| Model | PZ-3 | PZ-5 | PZ-9 |
| Output (m3/h) | 3 m3/h | 5.5 m3/h | 9 m3/h |
| nv.dist | 200 | 200 | 150 |
| Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
| Max.Aggregate.size | 10mm | 15mm | 20mm |
| Hose inner size | φ42/50 mm | φ50 mm | φ60 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
| Motor power | 3 kW(4hp) | 5.5 kW(7hp) | 7.5 kW(10hp) |
| Dimension(LxHxW) | 1130x1020x540mm | 1350x1020x750mm | 1500x1320x830mm |
| Weight | 520kg | 780kg | 980kg |
| Voltages | 220V/380V/400V/415V/440V/660V 50Hz/60Hz | ||
| Basic chassis | Tyre, Skid, Rail-wheel | ||
| Driving Type | Electric Motor | ||

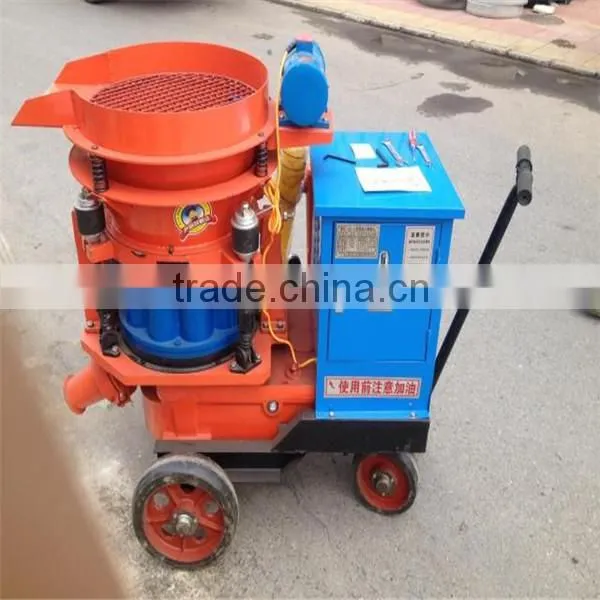

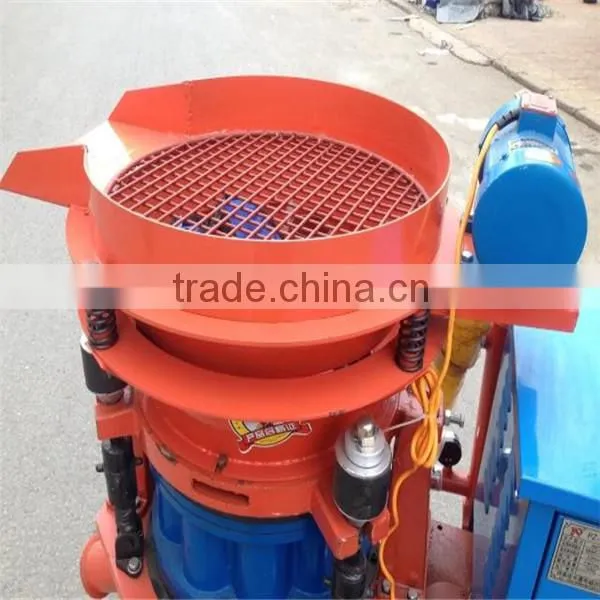

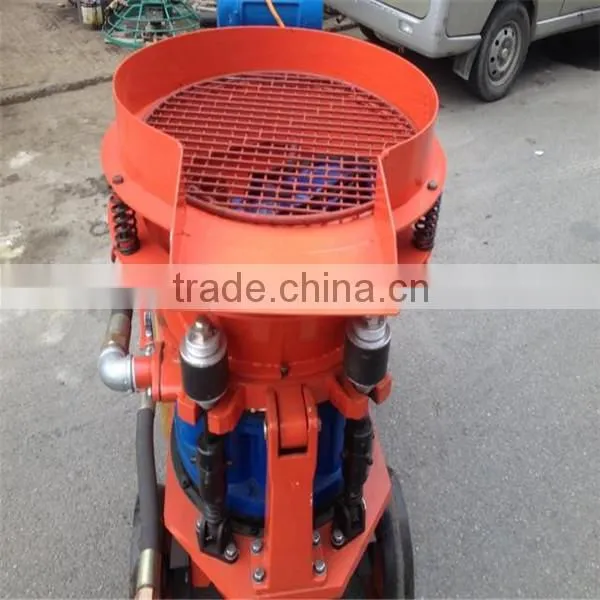

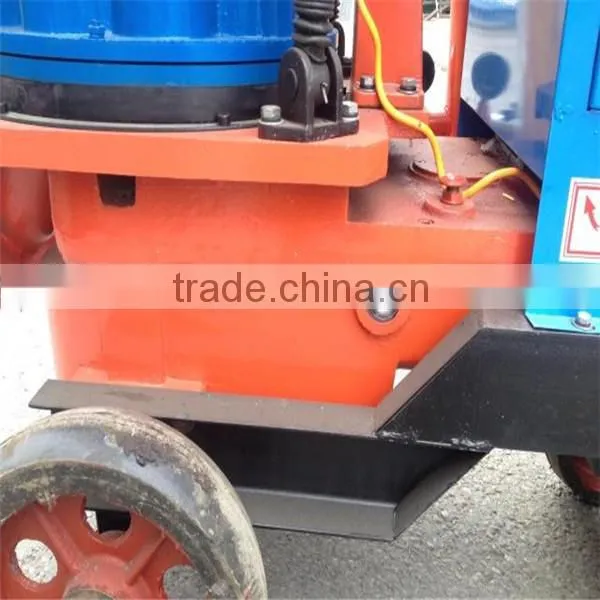

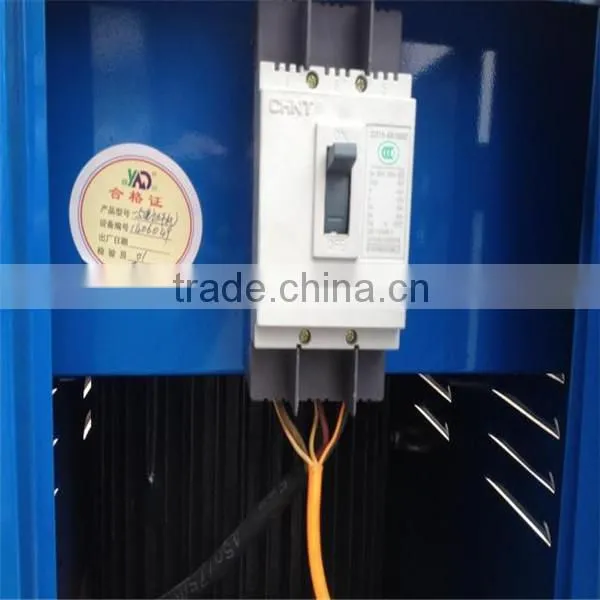

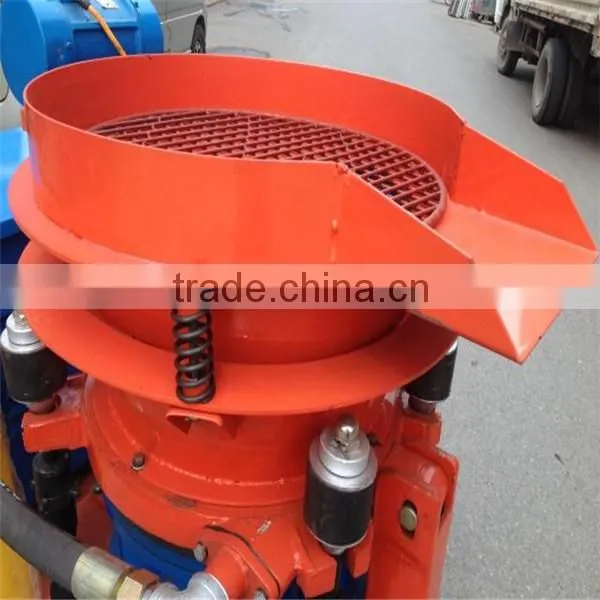

The real details photo
