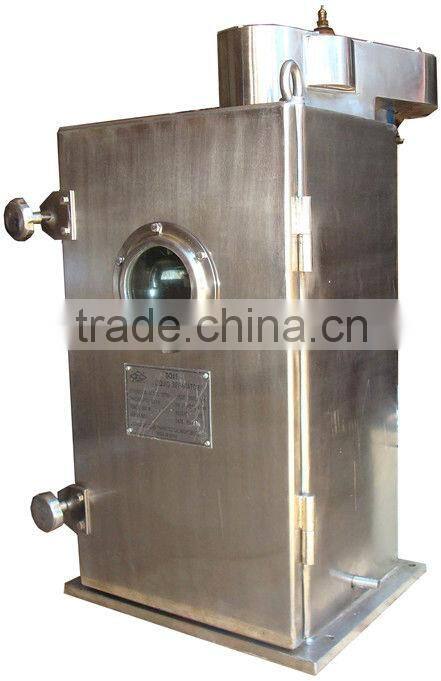

Help CenterTubular Laboratory Centrifuge Separator GQ 45-J
Related Products
-
DHY400 Automatic Discharge Biochemical CentrifugeUS$ 30,000 - 50,000MOQ: 1 Unit -
GQ-105A Juice Centrifuge GQ SeriesUS$ 5,500 - 8,000MOQ: 1 Unit
-
DHY Series Disk Variable Speed Separator DHY 400US$ 20,000 - 40,000MOQ: 1 Piece
-
Continuous Flow Centrifuge SGZ800US$ 10,000 - 20,000MOQ: 1 Piece
-
1.5 Ton/hr Coconut Meat Extractor and Extracting MachineUS$ 3,000 - 4,000MOQ: 1 Unit
laboratory centrifuge separator ----GQ45J
Structure and principle:
It is high speed separator. It has better separation .the separator is consisted of main body ,driving device,bowl collecting pan and liquid-in bearing seats.the upper of the bowl is flexible maishaft and the lower of it is damp floating .the mainshaft is connected with a driven wheel by the coupling seat with the buffer.the power is transmitted to the driven wheel by the motor through the transmisson belt and the tensioner to make the bowl rotate around its pwn axis at an overspeed and form a strong centrigugal force field . the product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl andthen is separated into different layers according to different density.
GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.
GQ:granular souds with high density settle down on the inner wall of the bowl gradually to form residue layer and then are discharged manually after the machine stops.the liquid clarified flows out of the liquid outlet at the bow’s upper.
Applications:
GF:It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solidseparation with a little foreign matter,such as separation of various oil and micropoder, extract liquid from plants, separation of plasma and biologic medicine, extraction of plasma from animals’blood,various medicine liquid and oral liquid
GQ Type is used for separating various suspension liquid, which is difficult to be separated, especially the separation of solid-liquid suspension, which is low concentration, high viscidity, fine solid phase granule, and very small difference in solid-liquid gravity, such as clarification of various medicine liqiud and oral liquid. Extract of paint, dye, as well as various protein, algae, pectin, and purification of rubber solution, etc.
working principle

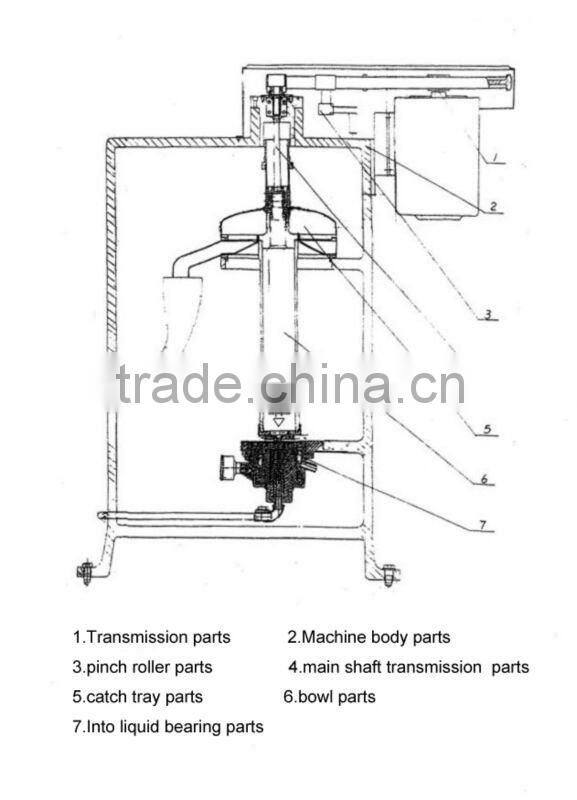

Products structure chart

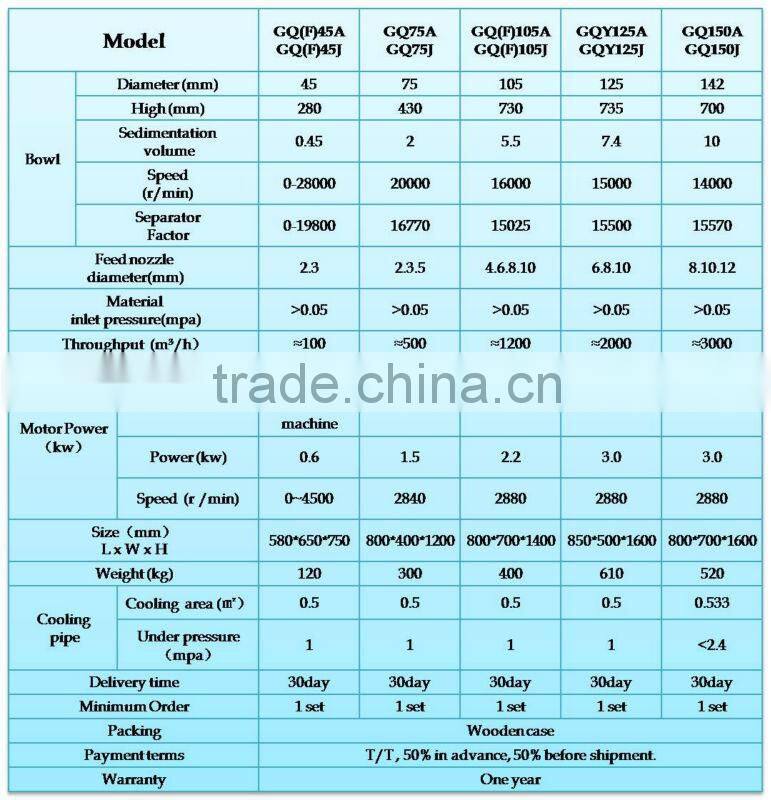

Technical Parameter
