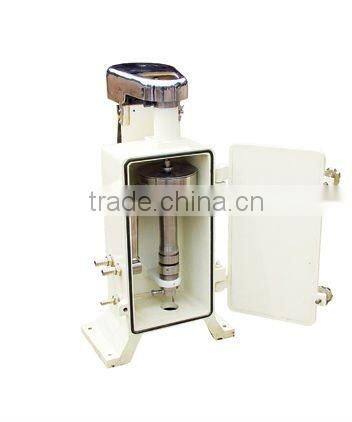

low speed lab centrifuge ----GF45A
working principle
Structure and principle:
It is high speed separator. It has better separation .the separator is consisted of main body ,driving device,bowl collecting pan and liquid-in bearing seats.the upper of the bowl is flexible maishaft and the lower of it is damp floating .the mainshaft is connected with a driven wheel by the coupling seat with the buffer.the power is transmitted to the driven wheel by the motor through the transmisson belt and the tensioner to make the bowl rotate around its pwn axis at an overspeed and form a strong centrigugal force field . the product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl andthen is separated into different layers according to different density.
GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.
Applications:
GF:It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solidseparation with a little foreign matter,such as separation of various oil and micropoder, extract liquid from plants, separation of plasma and biologic medicine, extraction of plasma from animals'blood,various medicine liquid and oral liquid
Products structure chart
Technical parameter
Model |
GQ(F)45A GQ(F)45J |
GQ75A GQ75J |
GQ(F)105A GQ(F)105J |
GQY125A GQY125J |
GQ150A GQ150J |
||
Bowl |
Diameter (mm) |
45 |
75 |
105 |
125 |
142 |
|
High (mm) |
280 |
430 |
730 |
735 |
700 |
||
|
Sedimentation volume |
0.45 |
2 |
5.5 |
7.4 |
10 |
||
|
Speed (r/min) |
0-28000 |
20000 |
16000 |
15000 |
14000 |
||
|
Separator Factor |
0-19800 |
16770 |
15025 |
15500 |
15570 |
||
|
Feed nozzle diameter(mm) |
2.3 |
2.3.5 |
4.6.8.10 |
6.8.10 |
8.10.12 |
||
|
Material inlet pressure(mpa) |
>0.05 |
>0.05 |
>0.05 |
>0.05 |
>0.05 |
||
Throughput (m3/h) |
≈100 |
≈500 |
≈1200 |
≈2000 |
≈3000 |
||
|
Motor Power (kw) |
model |
series excited machine |
Y90S-2 |
Y90S-2 |
Y90L-2 |
Y100L-2 |
|
Power (kw) |
0.6 |
1.5 |
2.2 |
3.0 |
3.0 |
||
|
Speed (r /min) |
0~4500 |
2840 |
2880 |
2880 |
2880 |
||
|
Size(mm) L x W x H |
580*650*750 |
800*400*1200 |
800*700*1400 |
850*500*1600 |
800*700*1600 |
||
Weight (kg) |
120 |
300 |
400 |
610 |
520 |
||
|
Cooling pipe
|
Cooling area (m2) |
0.5 |
0.5 |
0.5 |
0.5 |
0.533 |
|
|
Under pressure (mpa) |
1 |
1 |
1 |
1 |
<2.4 |
||
Delivery time |
30day |
||||||
Minimum Order |
1 set |
||||||
Packing |
Wooden case |
||||||
Payment terms |
T/T , 50% in advance, 50% before shipment. |
||||||
Warranty |
One year |
||||||
We can also provide as follow centrifuge
