High speed mini centrifuge GF 45-J

Specifications

1.mini centrifuge
2.Emulsion
3.A little of different between solid-liquid density
4.High speed
5.Versati

mini centrifuge   -----GF45J





Structure and principle:


It is high speed separator. It has better separation .the separator is consisted of main body ,driving device,bowl collecting pan and liquid-in bearing seats.the upper of the bowl is flexible maishaft and the lower of it is damp floating .the mainshaft is connected with a driven wheel by the coupling seat with the buffer.the power is transmitted to the driven wheel by the motor through the transmisson belt and the tensioner to make the bowl rotate around its pwn axis at an overspeed and form a strong centrigugal force field . the product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of  the bowl andthen is separated into different layers according to different density.


GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.

Applications:


 GF:It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solidseparation with a little foreign matter,such as separation of various oil and micropoder, extract liquid from plants, separation of plasma and biologic medicine, extraction of plasma from animals’blood,various medicine liquid and oral liquid



Principle diagram

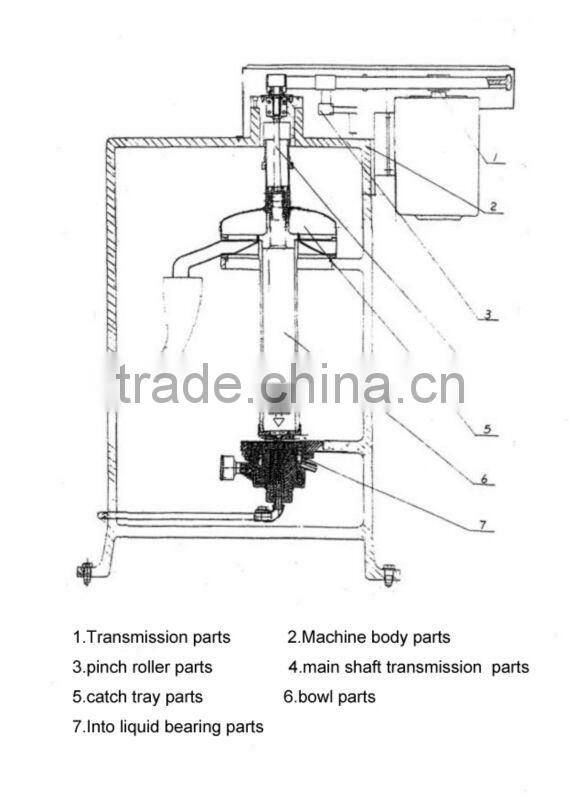

Structure chart







Technical parameter
