GQY125A Swing Type Tubular Centrifuge Machine

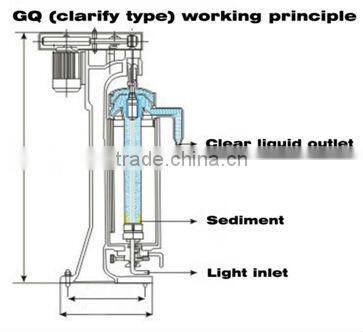

 working principle

 It is high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible maishaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmisson belt and the tensioner to make the bowl rotate around its pwn axis at an overspeed and form a strong centrigugal force field.

GQ Type is used for separating various suspension liquid, which is difficult to be separated, especially the separation of solid-liquid suspension, which is low concentration, high viscidity, fine solid phase granule, and very small difference in solid-liquid gravity, such as clarification of various medicine liqiud and oral liquid. Extract of paint, dye, as well as various protein, algae, pectin, and purification of rubber solution, etc.

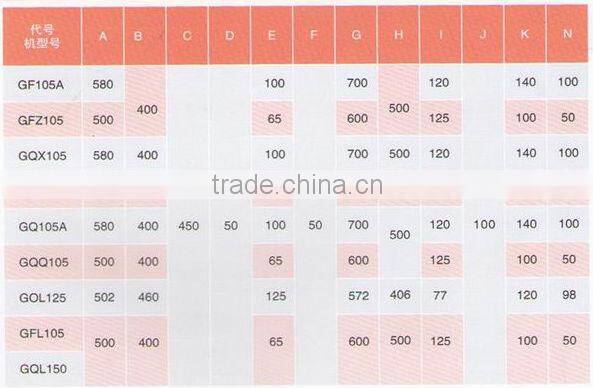

Technical Parameter

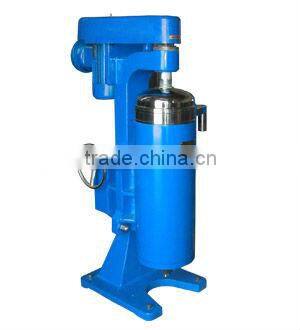

Product pictures

Outside Drawing:

Fundation drawing:
