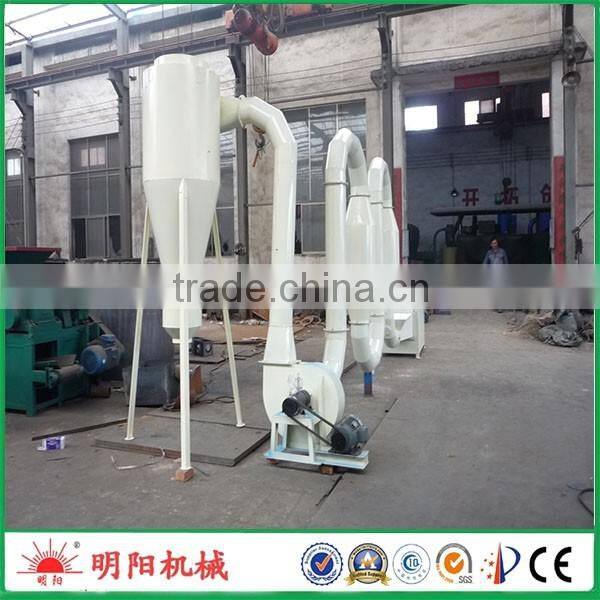

2016 Hot sell 200kg per hour gasflow drying machine for sawdust
Introduction of gasflow drying machine
This product is an ideal -production with small investment and fast profit.Low noise, low power consumption, easy to adjust,
For raw materials with heavy moisture content that above 12%, you need to install a drier, this drier reduces the moisture content below 12% before feeding them into Biomass / Charcoal Briquetting Screw Press
The raw material of gasflow drying machine
1. This gasflow drying machine is widely used in wood sawdust, starch, rice and other granular material of dry.
2. Its particle size generally <0.5~0.7 mm, up to <=1 mm.
3. Material status: airflow drying requirements is given priority to with powder or granular materials
The application of gasflow drying machine
Corn straw, soybean straw, cotton stalk, wheat straw, sorghum straw, sawdust paring, sawdust dryer, ginkgo biloba, mulberry leaves, , sawdust dryer, sawdust desiccator, paring desiccator, timber dryer.
Basic features of gasflow drying machine
1. gasflow drying machine has large dry strength, the material is highly dispersed in the gas stream, so the entire surface of the particles is the effective drying area;
2. gasflow drying machine has large capacity and high thermal efficiency. When drying unbound water, the thermal efficiency can be up to 60%;
3. gasflow drying machine has advantages of automatic feeding, fast drying, adequate mixing of hot air and material, short drying time, large capacity and so on.
4. Airflow dryer has simple structure, small footprint, easy construction and maintenance characteristics.

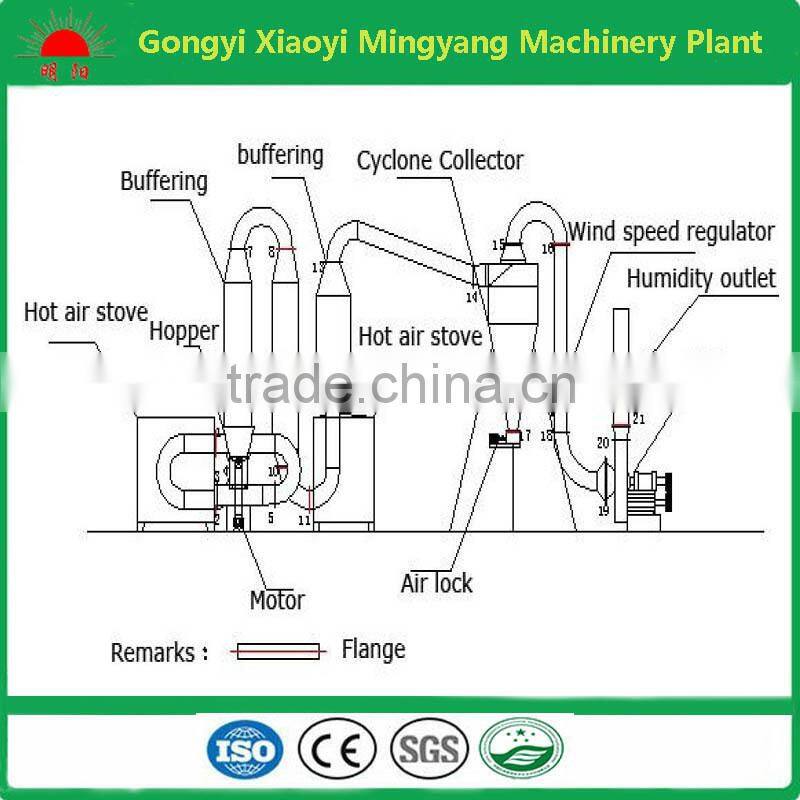

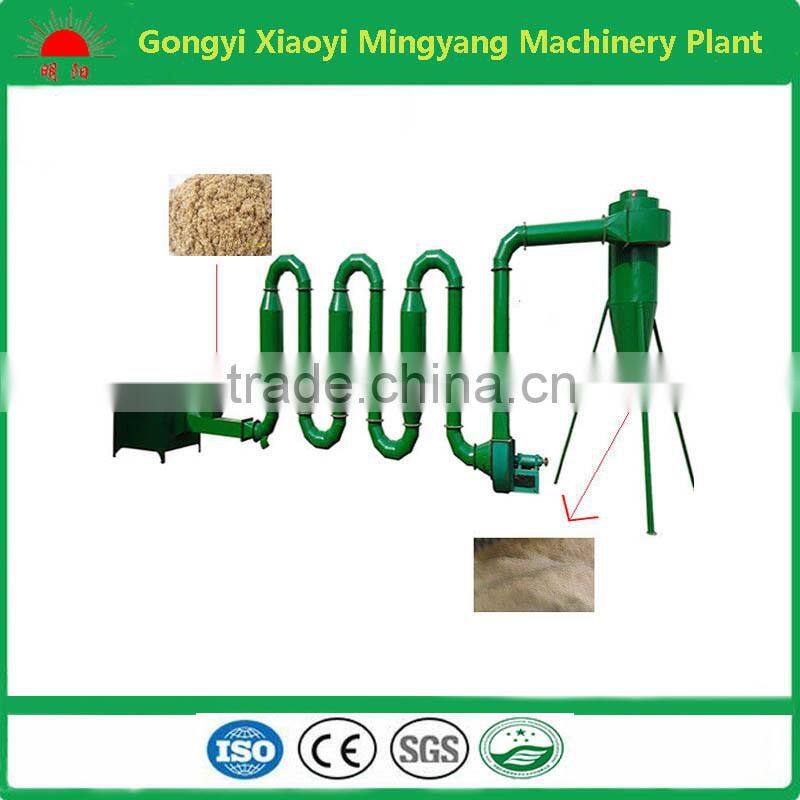

Working principle of gasflow drying machine
Hot air enters into stirring and crushing and drying chamber from the bottom of drier with suitable spouting speed. It exerts strong shearing, blowing, floating and rotating effect. It strengthens the process of heat and mass transfer. At the bottom of drier, the large and damp granule is crushed under the action of stirrer and the granule that is small in particle and contain less moisture will lift accompanied with revolving air steam. During the period of lift, it is dried further. Because gas and solid two phase flow in rotating and the inertia of solid phase is more than that of gas and the relative velocity between solid and gas phase is large, so it strengthens the process of heat and mass transfer. Therefore the machine has large drying capacity.

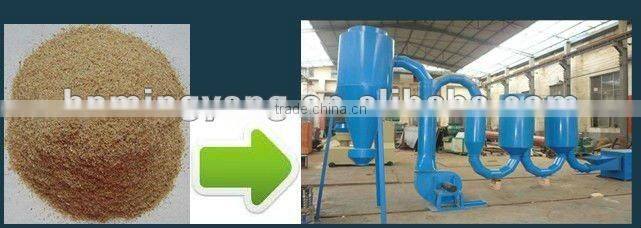

final product of gasflow drying machine
the parameters of gasflow drying machine
for us -------- Gongyi Xiaoyi Mingyang Machinery Plant
Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the charcoal making machine, biomass briquette machine and wood pellet production line in China with 25 years experience,Covered an area of 10000 square meters, currently has 118 employees, divided to 7 department Designed and produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
Products are widely accepted in both domestic and world market ,more than 150 countries,The company enlarged for building one experimental Center of high-tech automatic production equipment to meet the market requirement,Professional after-sales service team to be able to handle client issues in a timely manner.
our company:
our certification:
So if you have any interest of the machine,contact me freely!
