GQ105A/J Solid Liquid Separation Tubular Centrifugal Separator Machine
Technical parameters and selection model form
| (Tubular centrifuge separator) Model Item |
GQ(F)45A | GQ(F)75A | GQ(F)105A | GQ(F)125A | GQ150A | |
| GQ(F)45J | GQ(F)75J | GQ(F)105J | GQ(F)125J | GQ150J | ||
| Bowl | Diameter(mm) | 45 | 75 | 105 | 125 | 142 |
| Effective height(mm) | 280 | 430 | 730 | 735 | 700 | |
| Sedimentation volume(L) | 0.45 | 2 | 5.5 | 7.4 | 10 | |
| Speed (r/min) | 0-28000 | 20000 | 16000 | 15000 | 14000 | |
| Max separation factor | 0-19800 | 16770 | 15025 | 15500 | 15570 | |
| Feed nozzle diameter(mm) | 2.3 | 2.3.5 | 4.6.8.10 | 6.8.10 | 6.8.10 | |
| Feed inlet pressure(Mpa) | >0.05 | >0.05 | >0.05 | >0.05 | >0.05 | |
| Throughtput(kg/h) | ≈100 | ≈500 | ≈1200 | ≈2000 | ≈3000 | |
| Motor | Model | Series machine | Y90S-2 | Y90S-2 | Y90L-2 | Y100L-2 |
| Power(kw) | 0.6 | 1.5 | 2.2 | 3.0 | 3.0 | |
| Speed (r/min) | 0~4500 | 2840 | 2880 | 2880 | 2880 | |
| Size (L×W×H)(mm) | 580×650×750 | 800×400×1200 | 800×700×1400 | 850×500×1600 | 800×700×1600 | |
| Weight(kg) | 120 | 300 | 400 | 610 | 610 | |
| Area of Heat radiation(m2) | 0.5 | 0.5 | 0.5 | 0.5 | 0.533 | |
| Under pressure(Mpa) | 1 | 1 | 1 | 1 | <2.4 | |
Application
GQ Series Tubular Centrifuge (Clarification): Separating all kinds of suspension which is hard to separate, especially for liquid-solid separation which is small concentration, high viscosity, small particals, small difference of density, such as all kinds of liquid medicine, clarification of oral liquid, paint, dye, protein, vaccine mycelium, algae, pectin extraction, purification of rubber solution .
Structure and Principle
Tubular centrifuge separator is high speed centrifuge with strong capacity. The main parts: the body, bowl, transmission device, liquid collection plate, liquid inlet housing. Flexible principal axis is on the top of the bowl, dampingfloating bearing is at the bottom of the bowl, principal axis connects with connecting base, buffer and follower, Motor make the power to the follower through transmission belt and tension pulley, then the bowl rotates itself with high speed to make strong centrifugal force field. The material put in through the feed inlet at bottom, the material run upward through the inside wall of the bowl under centrifugal force, then separate depend on different density.
GQ Series Tubular Centrifuge (Clarification): High density particles deposit at the sidewall of the bowl, then the workers make the sediment out after power off, and the clarified liquid come out from the liquid outlet.
Working Principle Drawing

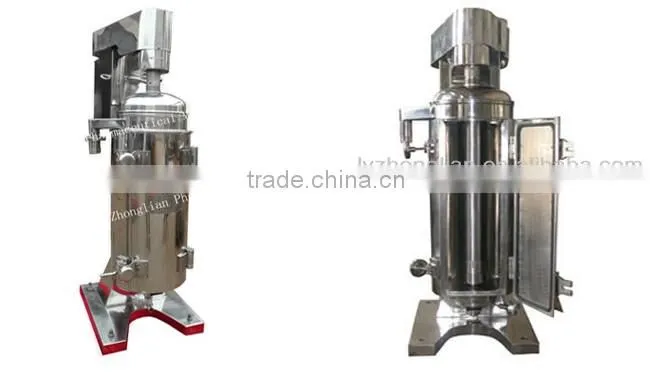

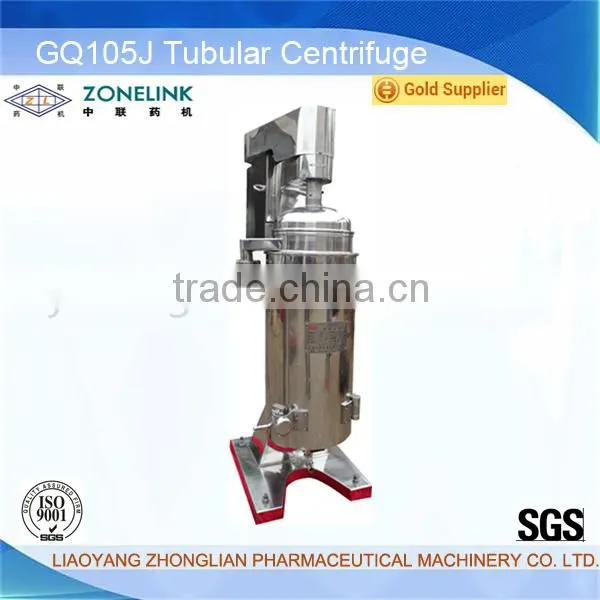

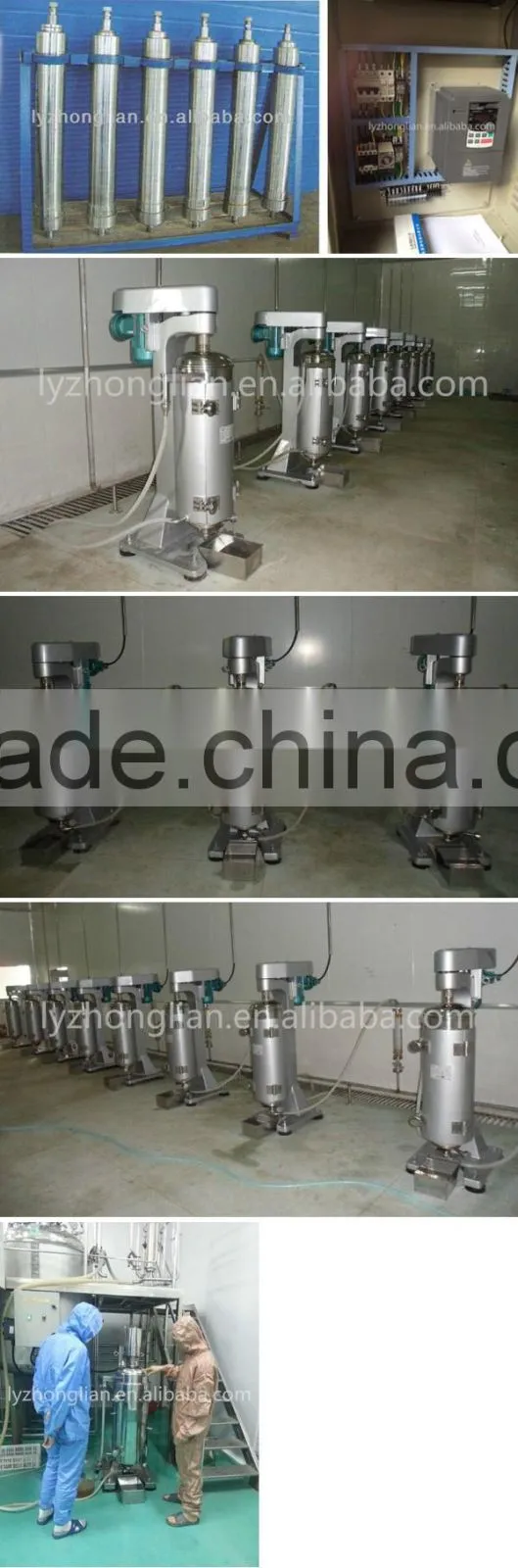

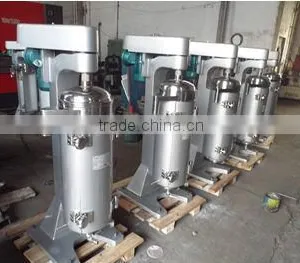

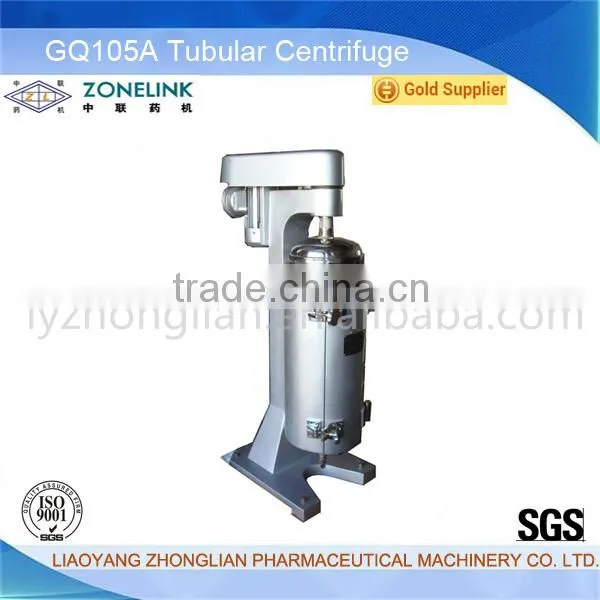

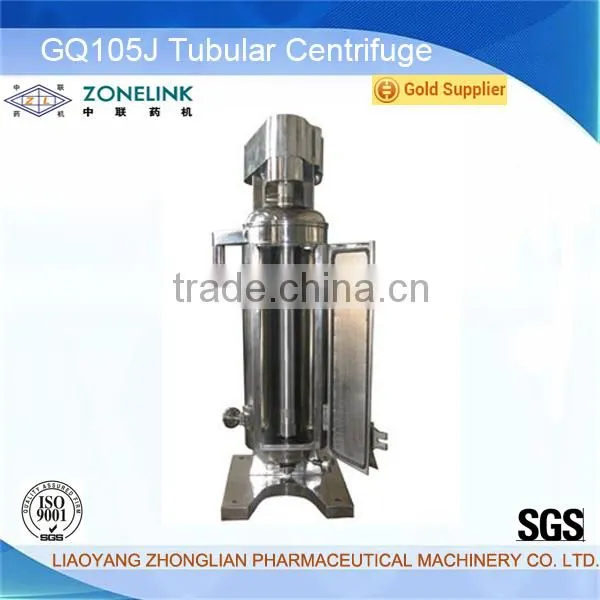

Product Pictures
GQ105A/J Tubular bowl Centrifuge Machine Packaging: Wooden Package
GQ105A/J Tubular bowl Centrifuge Machine Shipping: By Sea, By Air and By Train
The Service of GQ105A/J Tubular bowl Centrifuge Machine:
Technical suppport and Training support
Engineers available to service
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning Province, earliest engaged in the production of centrifugal machinery in China. Zhonglian is specially engaged in
the production of centrifugal equipment and pharmaceutical machinery, owns many years of experience in professional production, enjoys advanced technology and high quality equipment, developed and manufactured multiple hi-tech centrifugal equipment including disc centrifuge, tubular centrifuge, tripod series centrifuge and
flat plate centrifuge, which are widely applied in pharmaceutical, chemical, food, smelting and other industries. Our company is supported and well received by a wide range of users with reliable quality and excellent after-sales service. Our company mapped and improved originally imported TA60 disc separator to perfect the complicated structure of disc separator and better each index to be greatly approved of by users.
