Mingyang brand with CE ISO rotary drum wood sawdust airflow dryer 008615225168575
Introduction of wood sawdust dryer
Wood /sawdust dryer is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks and so on. The moisture of wet materials is at 20 to 30%. The wood dryer is equipped one fuel boiler, inlet, steel pipe, exhaust blower (fan), cyclone. Wet materials are input into the hopper.
Structure of the sawdust dryer

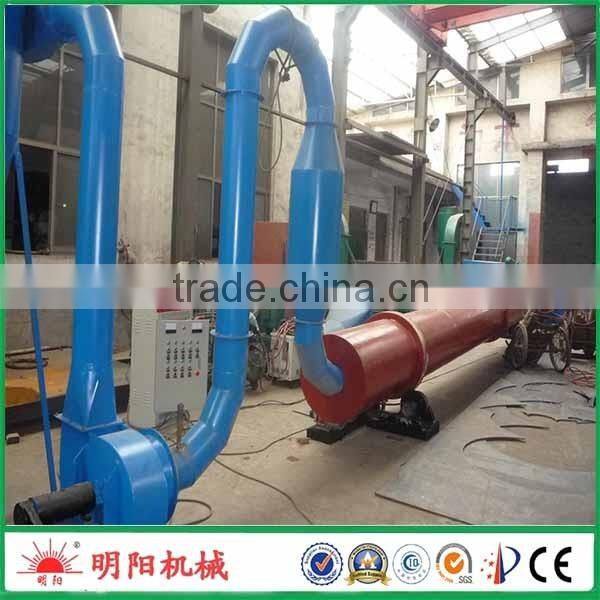

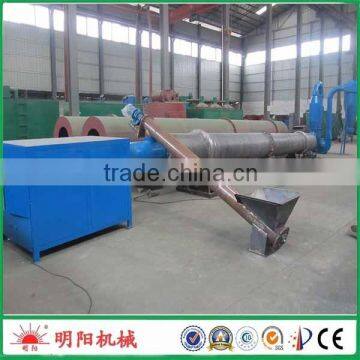

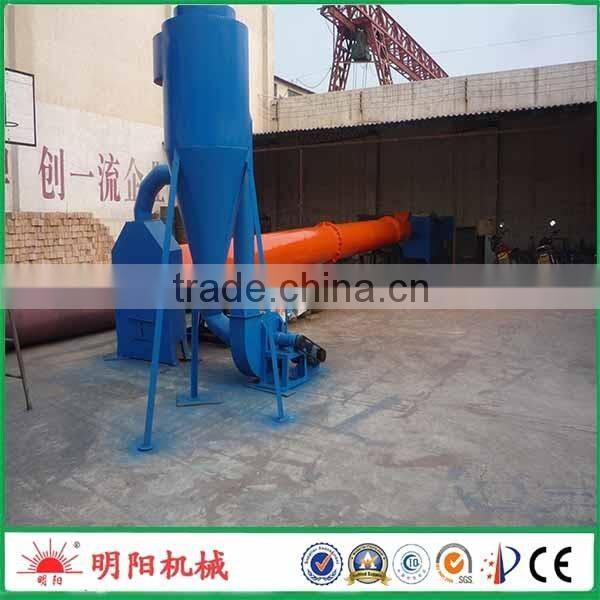

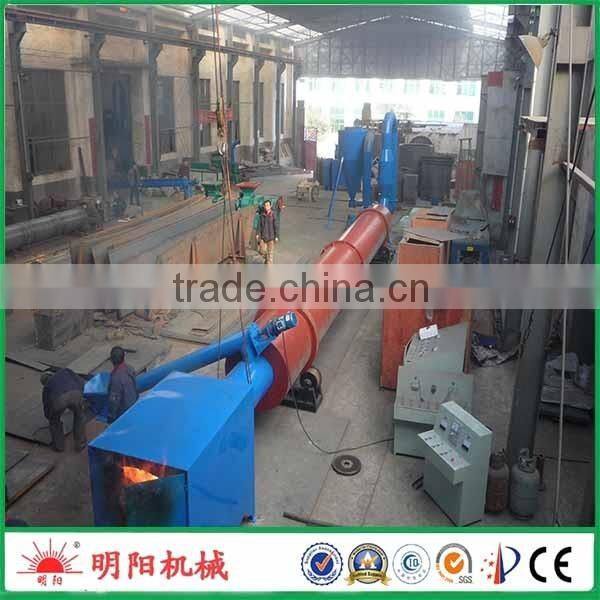

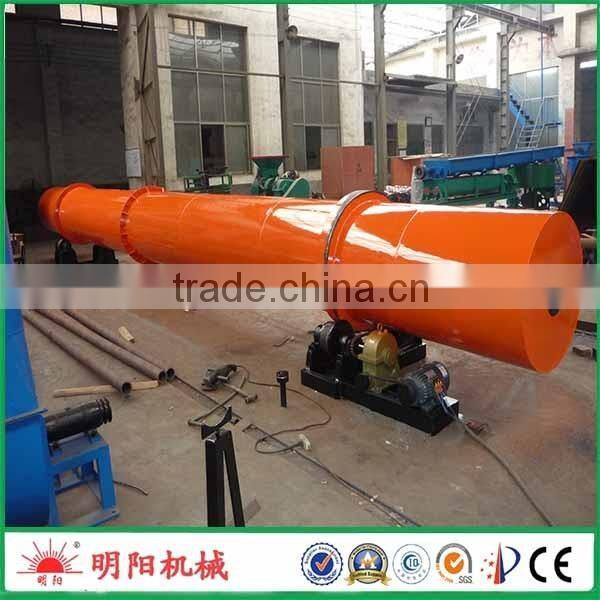

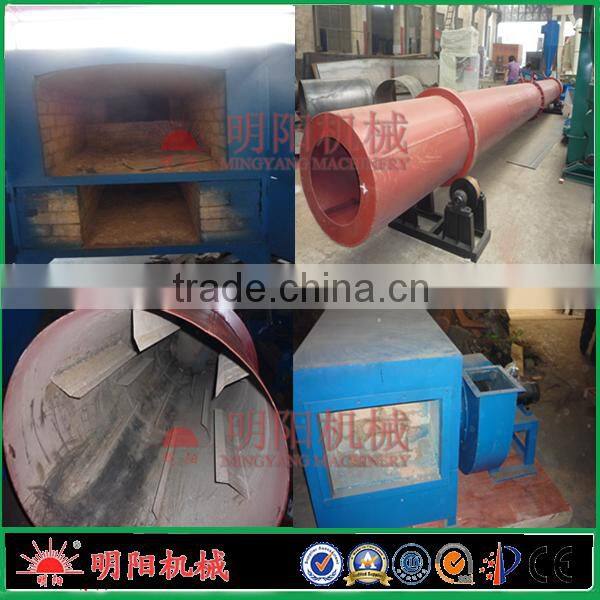

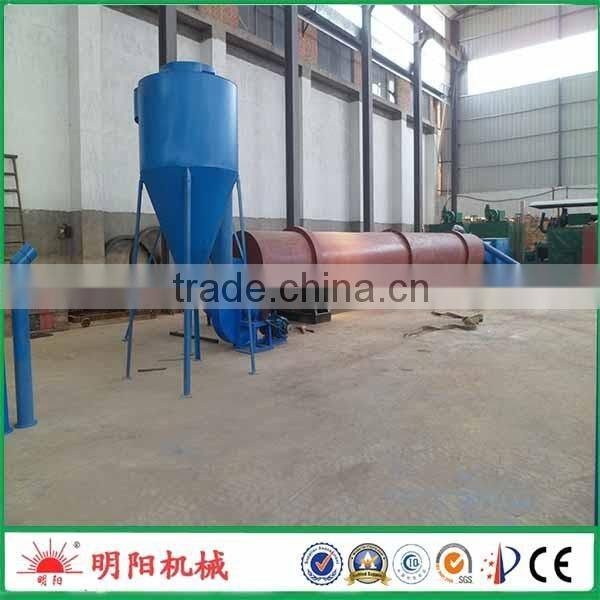

The structure of the dryer include : firebox, flame path, screw conveyor, rotary drum, pulse pipe, exhaust blower(fan) and cyclone.
The feature of the dryer: by controlling the heat from the firebox according to the water content of the raw material to achieve the purpose of drying, it also can dry the raw material which has a big moisture.
Working principle of the sawdust dryer
The function of the dryer is to dry the excess moisture from the raw material and to be the suitable moisture material that we needed. The firebox produces heat(and the heat producer could be all kinds of fuel except the poisonous materials) ,through the power of the exhaust fan and through the full contacts between the rotary drum and raw material, make the raw material to be heated and then dry the excess moisture. there is a spiral feeding device which is in regular order in the rotary drum, through the fall height of the rotary drum and the full mix of the heat and the raw material, dry the raw material, then the raw material is drawn by the exhaust blower to the pulse pipe and after the pipe, it will be sent to the cyclone to be separated, then the dried raw material will come out.
Features of wood sawdust dryer
1) Rotary drier/dryer with professional design
2) Low energy consumption
3) Long life span; Simple structure
4) Low cost and high output
5) Automatic operation
6) High capacity and efficiency
Installation of wood sawdust dryer
1. The equipment should be installed on the basis of the horizontal concrete, fastened by the foundation bolt.
2. The dryer body should be vertical with the level when installation.
3. Check the bolt from all the parts, assure it fastened.
4. Equipped with the power line and control the switch according to the equipment.
5. After check, it can be production after the normally testing.
Technology data of the wood sawdust dryer
Model |
GT650 |
GT800 |
GT1000 |
GT-1200 |
GT1500 |
Capacity kg/h |
600-800 |
800-1000 |
1200-1500 |
1500-2000 |
2000-2500 |
Main Power |
5.5kw |
7.5kw |
7.5kw |
11kw |
15kw |
Air lock power |
1.1kw |
1.5kw |
2.2kw |
2.2kw |
2.2kw |
Weight |
2600kg |
2800kg |
3800kg |
4500kg |
5000kg |
Diameter of roller |
0.68m |
0.8m |
1m |
1.2m |
1.5m |
Length of roller |
9m |
10m |
10m |
10m |
10m |
(1)Pre-sales service
a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.
(2)After-sales service
a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
(3)Our shipping terms
We can accept EXW FOB and CIF terms.
Also our freight forwarding has high effieiency and quick shipping speed.
If stock machine, we can send out your products within 5 days.
If you need special molds or customized producion line, the delivery time according to you machine quantity, but we will send out as soon as possible.
(4)Our payment terms
T/T, L/C, Western Union or others.
For the single machine, we use the plywood cases for packing, and for the whole container machine, we will ask the shipping company send one container to our factory and we will loading ourself, to make sure the machine are carefully loading and delivery
Gongyi Xiaoyi Mingyang Machinery Plant are
1.established in 2000, after 15 years development, now the coampany have two manufacturing bases
2. covered an area of 10000 squre meters,currently has 118 employess, devide to 7 deparment,
3 have designed and produce 6 production line ,more than 150kind of machinery, and awarded 5 patent in Chine
4. the products are widely accepted in both domestic and world market,exported to more than 150 countries
5. the company is enlarged to make room for high-tech automatic production euipment for meet the market requirment,
Gongyi Xiaoyi Mingyang Machinery Plant
Sales Manager: Betty Niu
Mobile: 0086 15225168575
Skype: bettyniu123123
whatsapp 0086 15225168575
wechat : 0086 15225168575
