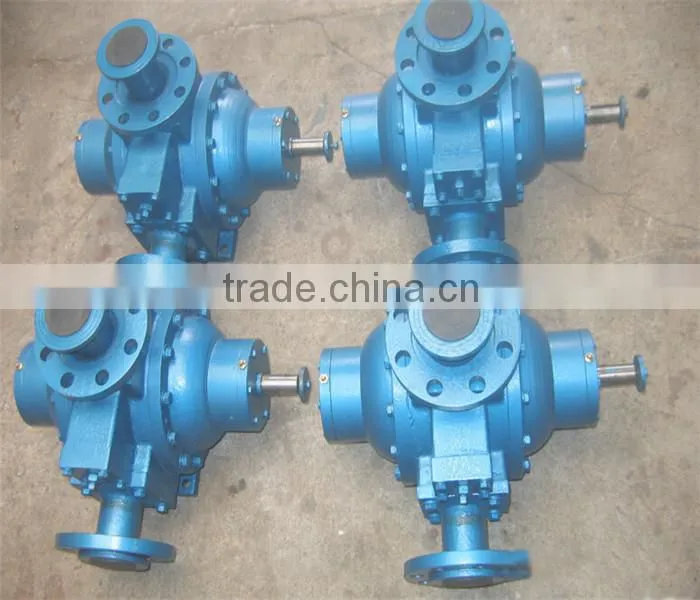

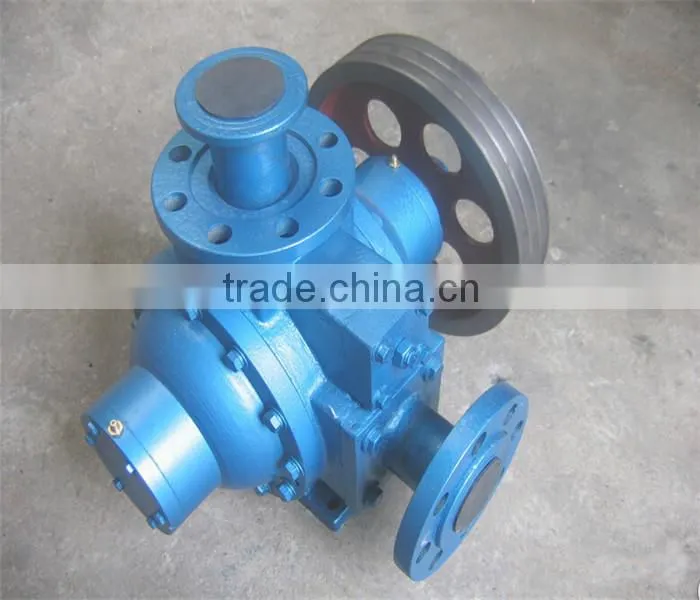

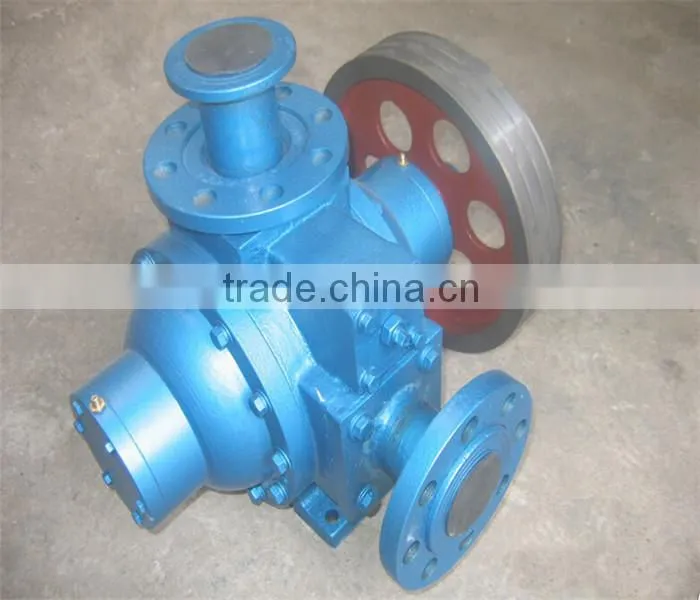

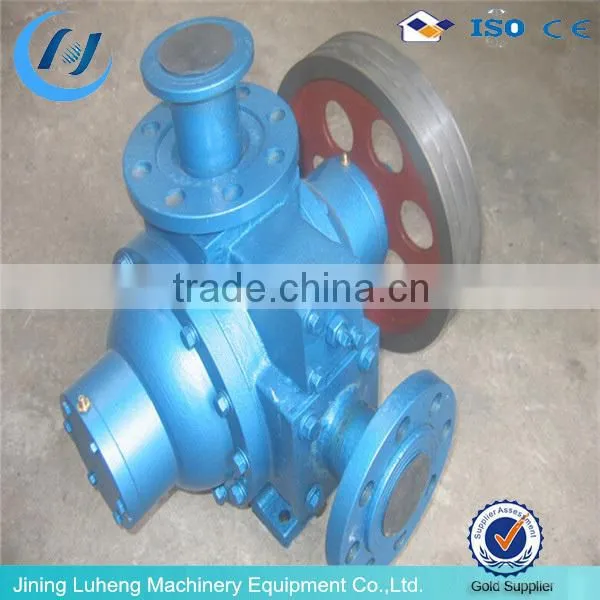

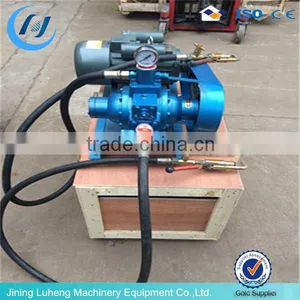

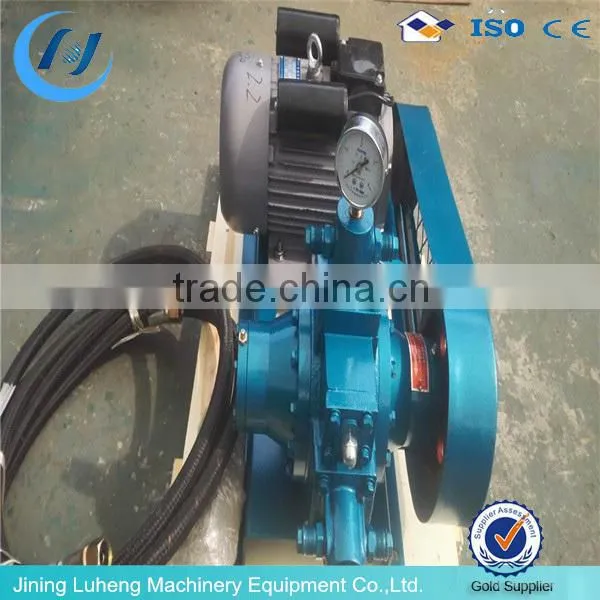

Liquid Petroleum gas pump for LPG filling station
Liquid Petroleum gas pump for LPG filling station
Product Introduction
YQB series LPG pump is mainly used for transportation of liquefied petroleum gas, propylene, ammonia, but also for irrigation and transport all kinds of similar nature or volatile liquids and petroleum products. The pump is a positive displacement vane pump, advanced structure, the surface of a composite curve consisting of a stator, mechanical seals at both ends, with respective end surfaces are fixed using the "O"- ring, with the rotational movement of the member
are made of metal should be relatively non- metallic with the use of safe and reliable,
a machine function.
It is commonly found in the LPG industry because its high pumping efficiencies, Long life, ease of maintenance.
Technology Parameters
|
Model
|
Speeding n |
Flow Q |
Pressure ΔP |
Work pressure ΔP |
Motor model |
Power N |
inlet |
outlet |
temp℃ |
YQB2-5 |
600r.P.m |
2 m3/h |
0.5MPa |
1.6MPa |
YB90M-4 |
1.5KW |
1 |
1 |
+40 |
YQB5-5 |
780r.P.m |
5 m3/h |
YB112M-4 |
2.2KW |
|
||||
YQB10-5 |
600r.P.m |
10m3/h |
0.5MPa |
1.6MPa |
YB132S-4 |
5.5KW |
2 |
2 |
+40 |
YQB15-5 |
780r.P.m |
15m3/h |
|||||||
YQB25-5 |
600r.P.m |
25m3/h |
0.5MPa |
1.6MPa |
YB160M-4 |
11KW |
3 |
3 |
+40 |
YQB35-5 |
780r.P.m |
35m3/h |
|||||||
YQB50-5 |
600r.P.m |
50 m3/h |
0.5MPa |
1.6MPa |
YB160L-4 |
15KW |
4 |
4 |
+40 |
YQB15-5A |
780r.P.m |
15m3/h |
0.5MPa |
1.6MPa |
YB112M-4 |
4KW |
2 |
2 |
+40 |
YQB10-5A |
600r.P.m |
10m3/h |
|||||||
YQB60-5 |
780r.P.m |
60 m3/h |
0.5MPa |
1.6MPa |
YB160L-4 |
15KW |
4 |
4 |
+40 |
YQB80-5 |
780r.P.m |
80 m3/h |
0.5MPa |
1.6MPa |
YB180L-4 |
18.5KW |
4 |
4 |
+40
|

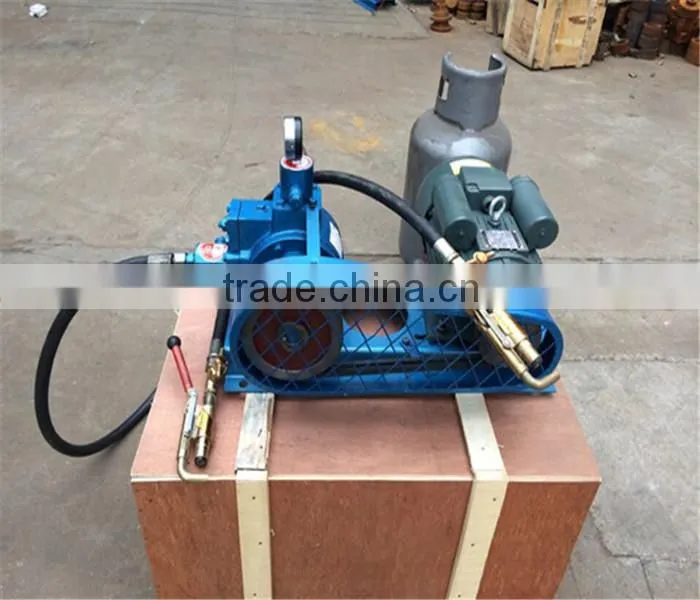

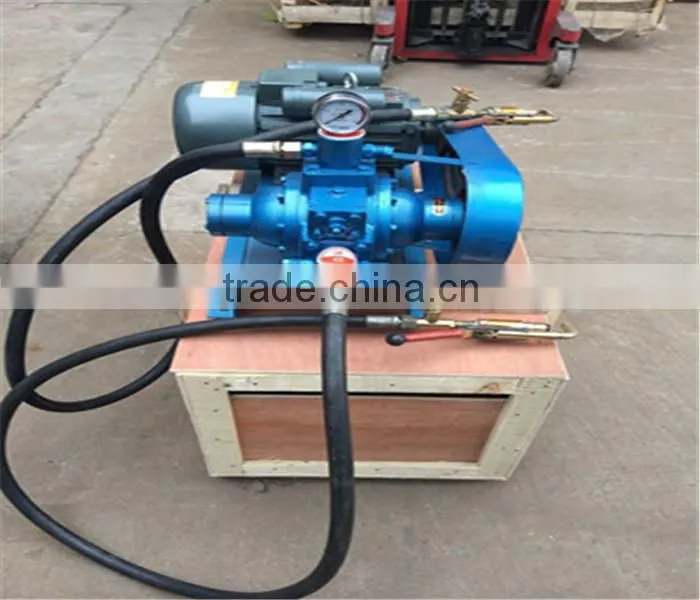

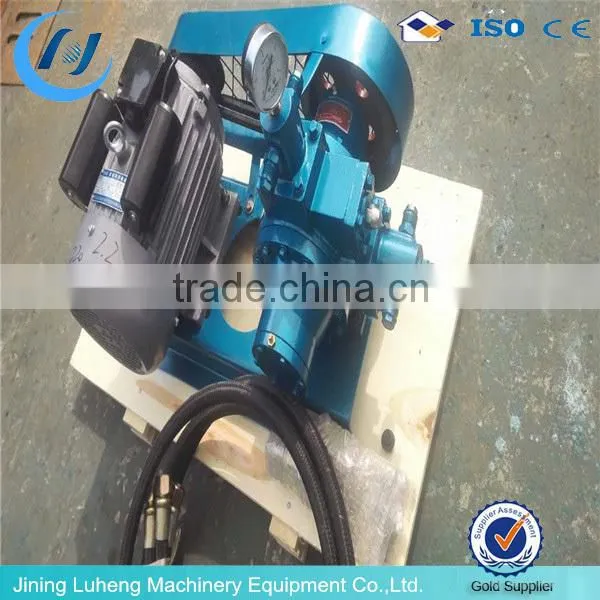

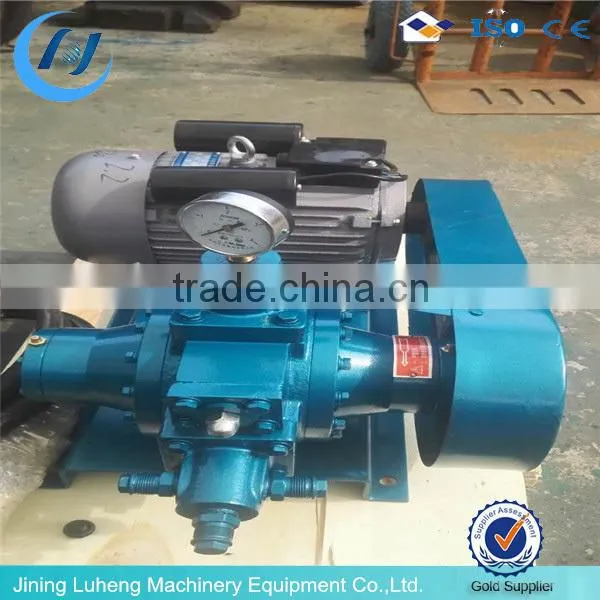

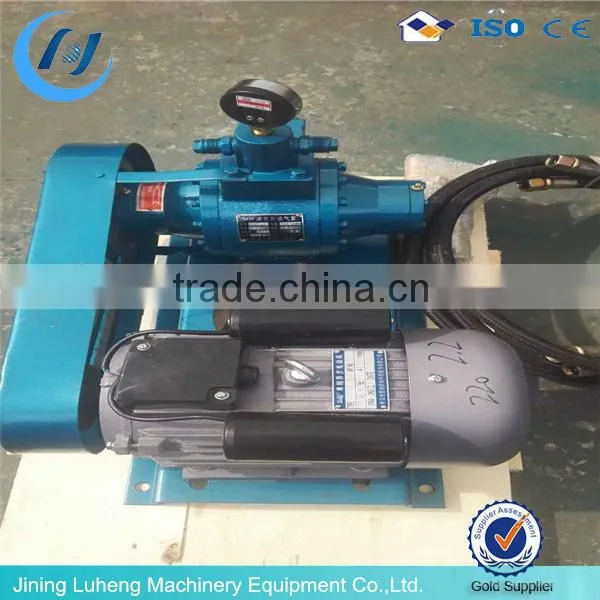

The real details photo
Good Cooperation
Transaction history
Quality Certificate
Transport and Shipping
welcome to visit our company webiste, Any question,pls contact Cici Yang
Skype : LH.Cici
QQ: 2908844178
Mobile:+8615965109869
Tel : 0086-0537-2582838
Fax : 0086-0537-2585028
