Specifications
2. Damping damping
3. Nitrogen protection
4. Dedicated motor directly connected
5. Thoroughly clean
Reasonable structure design, geometric shapes simple and effective elimination of the health corners, structural parts smooth transition, the surface polished, external components, fasteners and materials are made of stainless steel contact parts, housing for the clamshell, can centrifuge housing and Drum sandwich in a thorough cleaning.
Base and the flat structure, reducing the machine center of gravity, small size, the overall base and the shell is welded form, bearing strength.
Configuration of liquid rubber damping shock absorber damping fluid or, more effectively eliminate the vibration can be realized without basic installation.
Shell can flip clamshell model with a large or small, flip, cover with feed tube can be equipment, washing pipe, observation port, light mouth and spray systems, other protective devices can be equipped with nitrogen to ensure the centrifuge separation chamber and outside air .
Direct type-specific motor, belt drive eliminates the potential dust, inverter start, start the smooth, dynamic braking, the whole good sealing performance, can be anti-explosion, can be applied to toxic and flammable, explosive situation. Nitrogen also can be equipped with protective devices to ensure the centrifuge chamber and the outside air isolation.

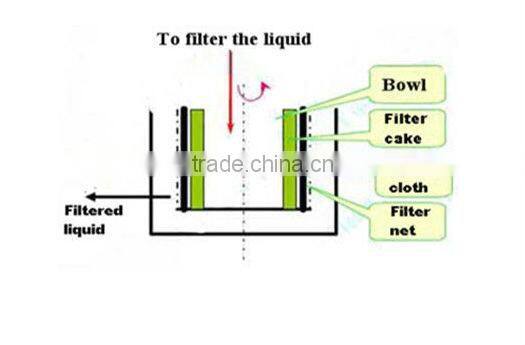

Working principle:
Structure and principle:
PS-NC Flat Direct filtration centrifuge drum based piece, direct-coupled motor drive their own drum rotates at high speed to form a centrifugal force field. Suspension was separated from the top of the feeding tube into the drum, under the action of centrifugal force, threw the drum wall, the wall of liquid through the drum filter, filter cabinet space are thrown together in the fuselage the bottom of the fluid collection chamber, discharged by the drain pipe, and solid phase retained in the cloth on the inside, For washing, the washing water through the washing tube to join the washing, solid phase is discharged from the top by hand.
The main body of this machine is in the flat strcture and the heel is a rubber buffer unit. The motor in in the coupled model, with upper cover in large flip-flat closed structure, fitted on top with feed inlet, washing device, porthole, and lamp holder, able to achieve online cleaning, in clean and sanitary overall main-body structure, adaptable for standards on certification equipments of GMP enterpreises.
The couple motor has replaced the driving form by clutch belt pulley, able for adopting coupled double-speed motor and frequency converter operation, with production site free from contaminats and dusts, suitable for aseptic, explosion-proof, and airtight occasions. This machine not only combined the main-body structure of traditional tripod centrifuge, but also adopted the flat main-body structure, with preeminent performance.

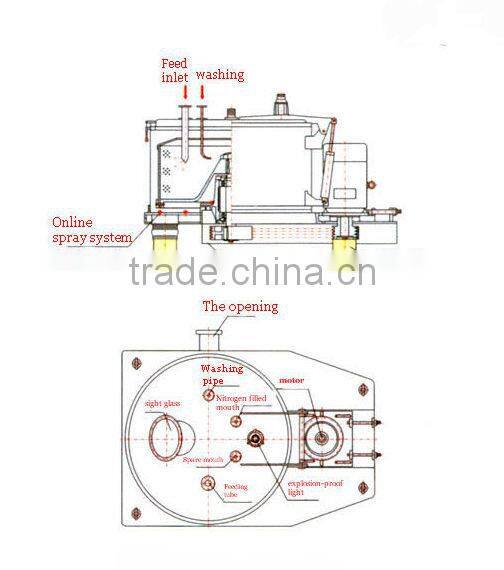

Structure and principle:

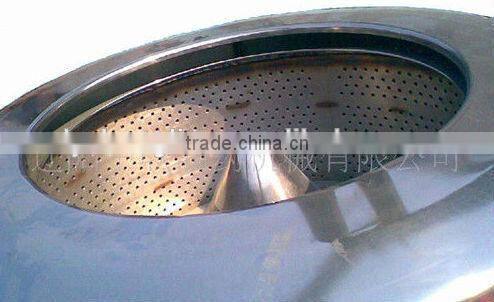

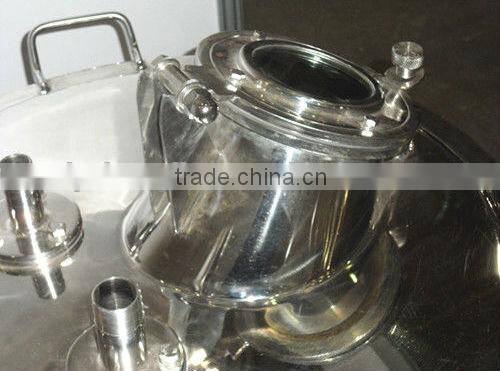

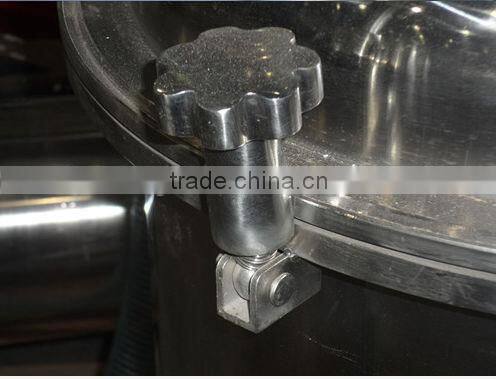

Product detail pictures:
Technical parameters:
Wooden package
Engineers available to service machinery overseas
