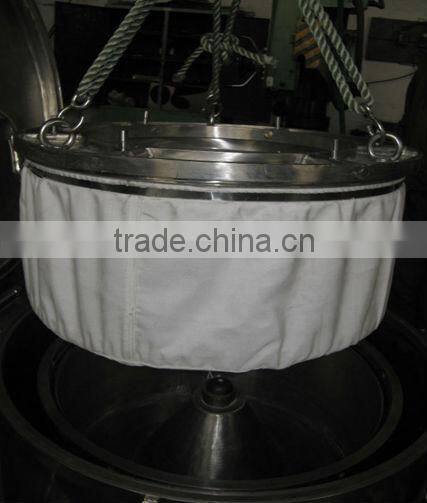

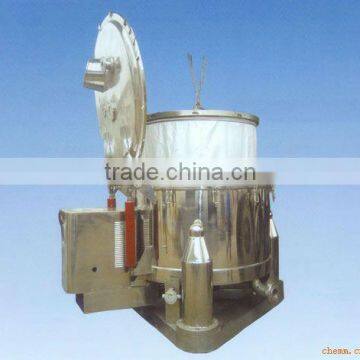

PD1250 flat plate lifting bag basket centrifuge
Main features:
Start with frequency converter for stepless speed regulation, with a PLC (programmable logic controller) to
start the steady expansion of the scope that can be used, with the main control cabinet and field proof auxiliary
control panel can operate both to improve safety sex, no basis for the installation, eliminating the conventional
hanging machine feet, simplify the installation process. No base plate weight and the selection of isolating types
of damping system that allows devices to be completely absorbing vibrations generated by change. On the
basis of the ground and the surrounding non-interference.
Shell structure for the flip, can be laminated on the centrifuge drum shell with space for thorough cleansing.
Structural design is reasonable, more comprehensive cleaning and sterilization. Particularly difficult to adapt
materials for the staff contact for high cleanliness, washing demanding proof high grade solid-liquid separation. Lifting bag discharge, can be off-site discharge, improve efficiency, reduce labor intensity, environmental conditions fully comply with GMP
standards.
Applies to both solid phase for the granular filtering, it can be used for dewatering fibrous material, particularly
high viscosity, fine particle size, toxic and hazardous, flammable materials in the filter. For example: gypsum,
thiamine, Glauber's salt, copper sulfate, nickel sulfate, a chloride, acetic acid, borax, soda, rubber additives, dye,
plastic raw materials, fertilizer, oil, all kinds of resin, salt, MSG, food additives, starch sugar, vitamins, antibiotics
and other drugs, herbicides, insect repellents, copper, zinc, aluminum ore dehydration, metal refining, volleyball
acid plaster, water treatment.
Structure and principle:
Frequency control by the main motor, a smooth start, through the narrow V belt antistatic flame retardant will
force transmission to the bowl, so that high-speed rotating around its own axis, forming a centrifugal force field, the material from the upper part of the
feeding tube into the bag with the basket from the will power to force material trapped in the bag, the shutdown,
open the case and cover, hanging out outside the machine to discharge discharge locations; with washing pipe
materials can be washed.
Structure chart:
Working principle:
Technical parameter:
Wooden Package Case
Engineers available to service machinery overseas
