Place of Origin Taiwan, China
Brand Name Pegasus, Pongee
Model Number PFP-3702

Biometric fingerprint access control

Product Description

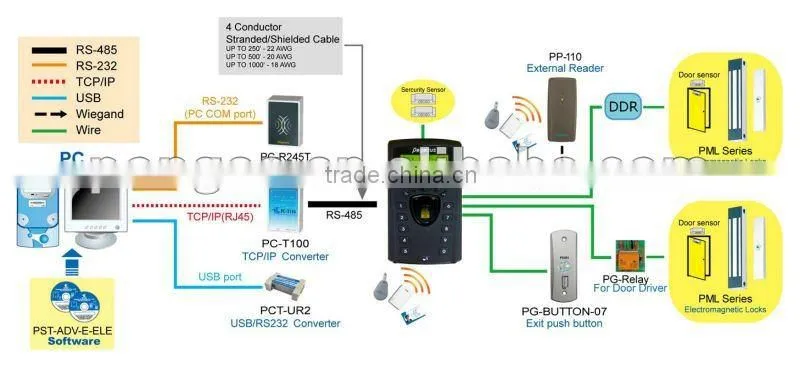

PFP-3702is an intelligent time recording terminals designed to meet variant applications in time attendance and access control, lift control & ARM/DISARM security requirements. Each terminal can be operated independent simply or through PC/Internet adapter PC-T100 to fulfill the multiple doors access system. The recording terminal includes nearly all the necessary functions for time recording and access control with bountiful manual & PC executed commanded functions as well as friendly operation commanded for manual operation.


Features

Features for time recording application:

  • Selectable batch or real time operation mode.

  • 79 duty codes, duty name defined by PC.

  • Possible in 8 digits ID for time attendance recording.

  • Totally 192 alarm schedules (8 schedules per hour) dry contacts output for periodic belling.

  • Could collect data by real time or one by one events or massive block dump.

  • High capacity with 8 digits card number. ( Either checking or without checking personal map )

  • 16*2 rows of LCD display with 8 digits for displaying year, month, day, week, time & events counter.

Main features for access control application:

  • System parameters and personal access map can be downloaded by PC or manually programmed through keypad.

  • The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.

  • Excellent multiple operation modes :(1)Fingerprint (2)ID+Fingerprint(3) Card only (4) Card + PIN (5)Door PIN only  (6)Card Number+PIN (7)Free access (8) Automatic operation mode by time zones.

  • All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.

  • Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC or by manual thru. single / block range card number or by directly reading card thru. learning mode.

  • Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.

  • With complete door release, held monitoring and intruded alarm period and error trials.

  • Supports 8/24/48/64/96 floors lift access control.

  • Full APB (anti-passback), time zone.

  • Could dump all personal map in system by single PC or manual command.


Specifications

Dimensions

174mm(L) x 100mm(W) x 43mm(H)

Weight

600g± 5%
Enrollment time <550~850 msec
1:1 Verification time <550~850 msec

Power supply

DC 12V±10%, 80mA~100mA(not include power requirement for lock & alarm)

Transmission rate

Default 9,600 bps N,8,1(2,400/4,800/19,200bps)(38,400<selectable>)

Operating temperature

0°C ~ 70°C

Operating humidity

10%~90%

Password

Programmable 4 digits PIN for each person

Serial interface

RS-485 &RS-232& TCP/IP (Optional)

Serial output

 1.For connection with serial printer.
2. To drive DDR (digital door relay) for secure assess control function.
3. To drive 8/24/48/64 relay output modules for lifts access control
4. Bountiful application functions requested by customer
User Capacity 9,000 fingerprint templates

Events/ Card capacity

(1) K Series: 1,000 card capacity,500 events.

(2) L Series: 2,000 card capacity,1,000 events.

(3) M Series: 30,000 card capacity,10,000 events.
(4) N Series: 11,000 card capacity,32,000 events.

(5) P Series: 11,000 card capacity,8,000 events.
(6) X Series: 32,000 card capacity, 32,000 events.

Other capacity combination requested by order

Card standard

EM 125KHz / Mifare 13.56MHz(ISO 14443A or ISO 14443B)(Depending on order)
Wiegand 26/34 bits port for any kind of reader

Support customized card.

External Reader

With one or optional two port for external Wiegand (26/34 bits definable by command) & ABA input(by order)

Mifare® is a registered trade mark of Philips.

 Fingerprint access controller and time attencance recorder

We reserve the right to change the specification without notice or obligation!
